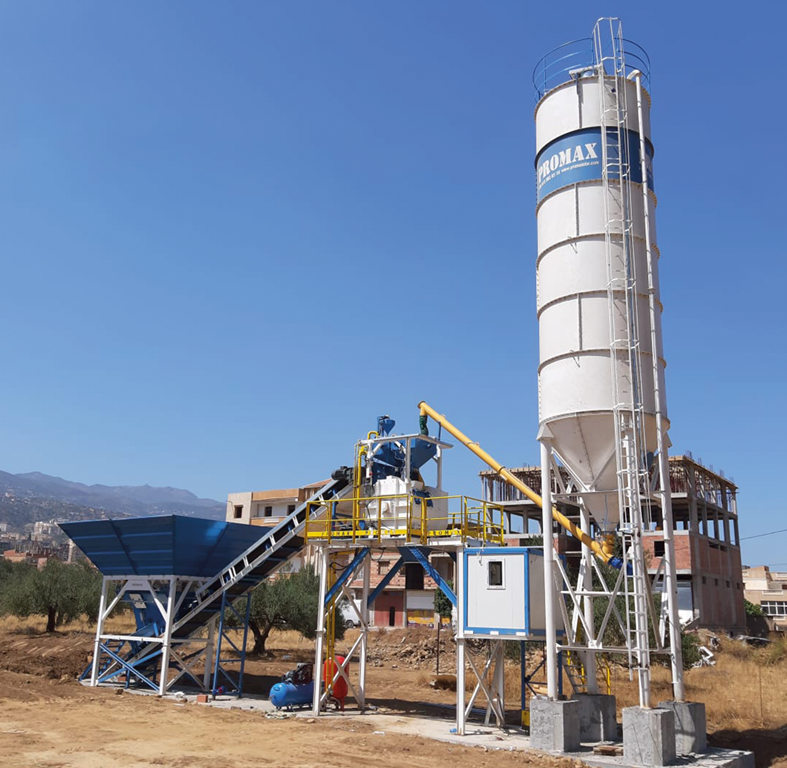

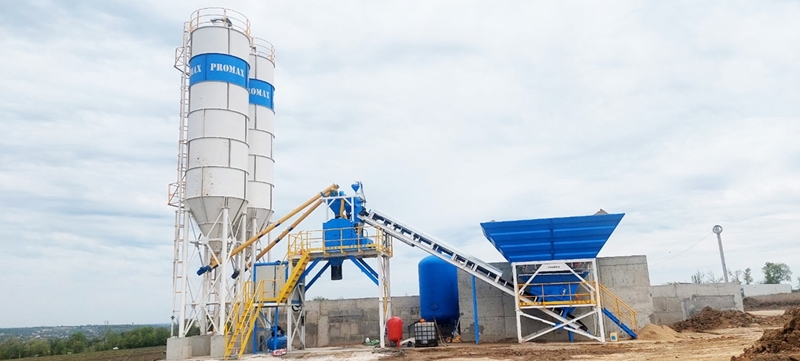

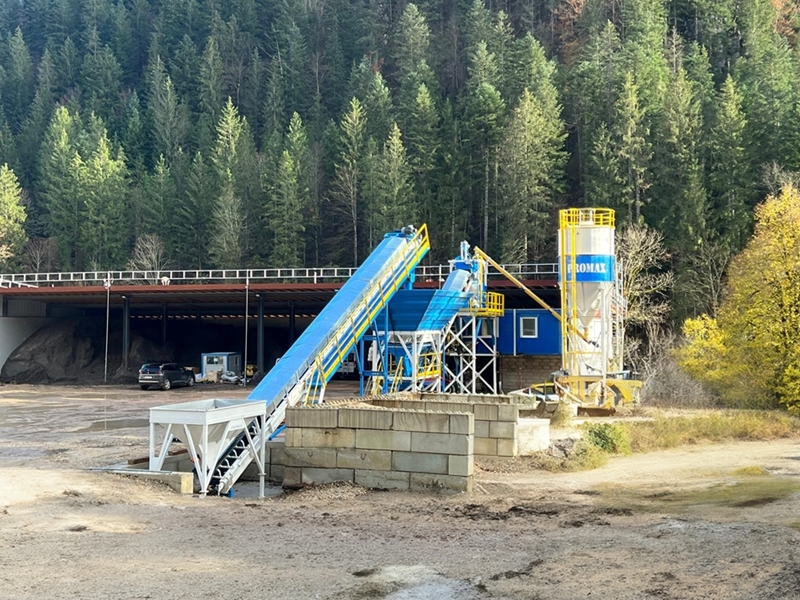

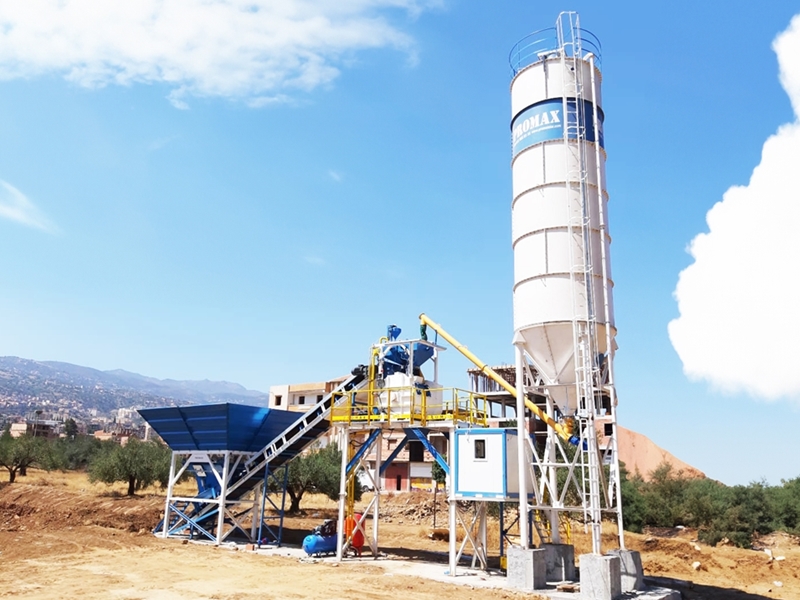

60m³/h Plus Compact Concrete Batching Plant
60m³/h Plus Compact Concrete Batching Plant
The Promax C60 SNG Plus Compact "Plug-and-Play" Concrete Plant offers significant advantages in concrete production and job site mobilization thanks to its low transportation costs, ease of use, and rapid installation. Promax developed this system, designed to fit perfectly into a container, to minimize transportation and installation challenges for concrete plants.
General Information
Promax C60 SNG Plus Compact “Plug & Play” Concrete Batching Plant offers significant advantages in concrete production and site mobilization with its low transportation cost, easy and simple operation, and fast installation features. Promax has developed this system, designed to fit entirely into a container, to minimize the transportation and assembly challenges of concrete batching plants.
Advantages:
- Low Transportation Cost: Can be transported with only 1 × 40 FT container or 1 standard trailer.
- Easy and Simple Operation: Delivered with all equipment installed and electrical works completed, ensuring simple and user-friendly operation.
- Fast Installation: Requires minimum assembly on-site and can be commissioned in a short time.
Promax C60 SNG Plus is delivered with all necessary equipment installed and electrical installation completed, providing a fast assembly and commissioning process at the construction site.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 60 m³/h |
| Mixer Specifications | |
| Mixer Type | Single Shaft |
| Dry Capacity | 1500 lt |
| Mixer Capacity | 1000 lt |
| Engine Power | 1 x 37 kW |
| Mixer Conveyor Belt | |
| Width | 800 mm |
| Length | 12000 mm |
| Engine Power | 15 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 10 m³ = 40 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 830 lt / min |
| Tank Volume | 500 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 5.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 219 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 9.2 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 2200 kg |
| Cement Weighbridge | 600 kg |
| Water Weighbridge | 350 lt |
| Additives Weighbridge | 25 kg |
