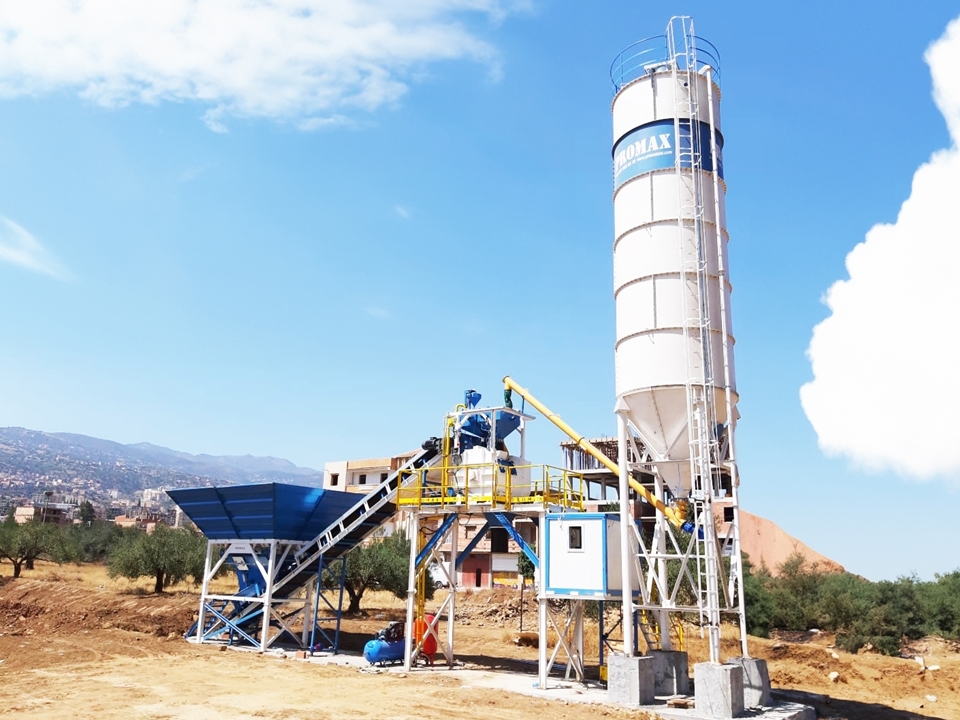

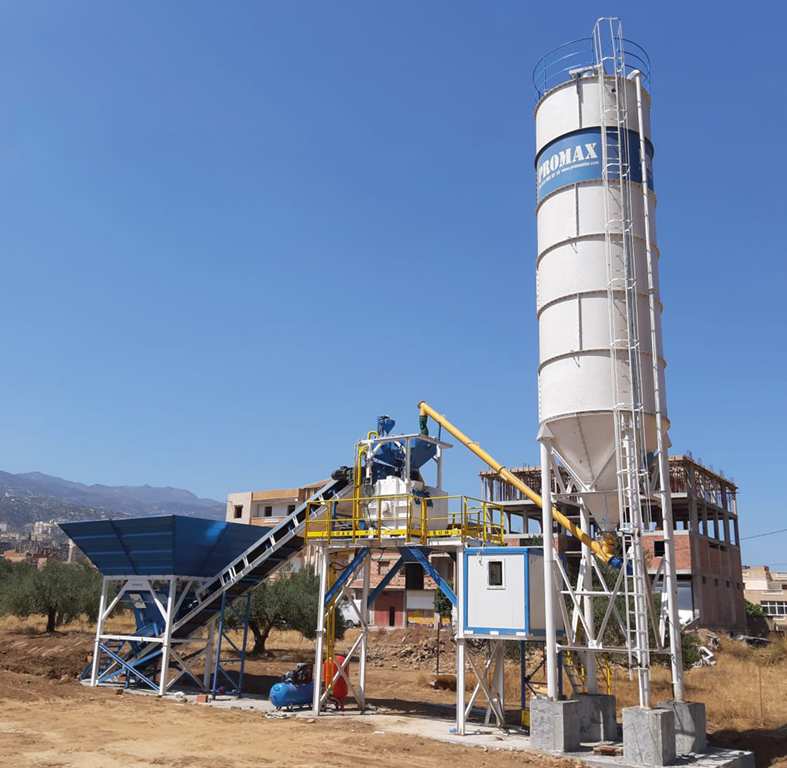

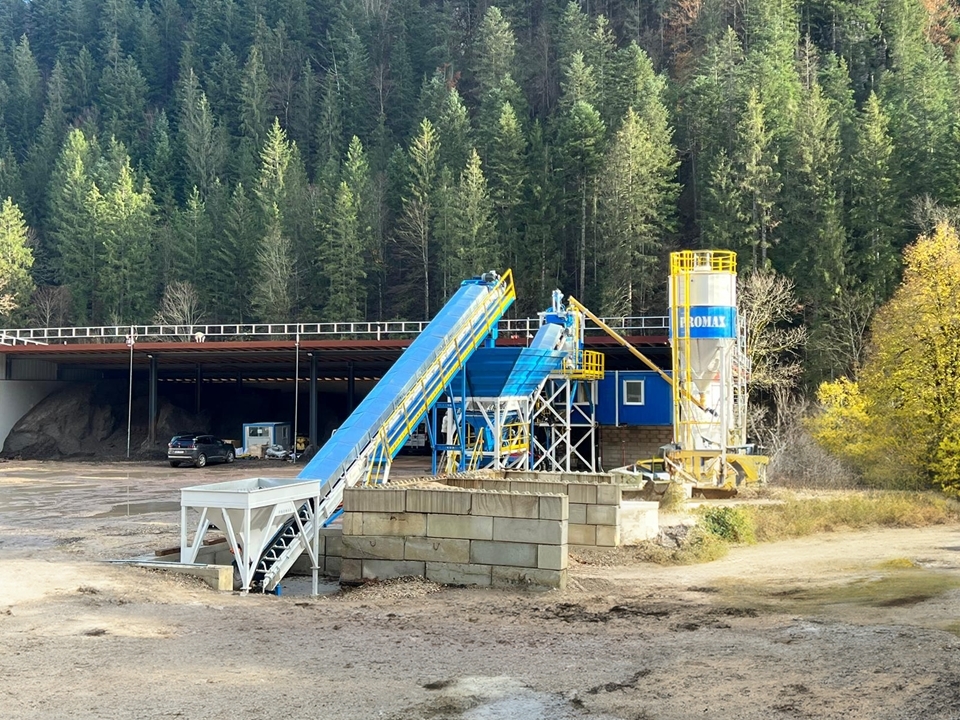

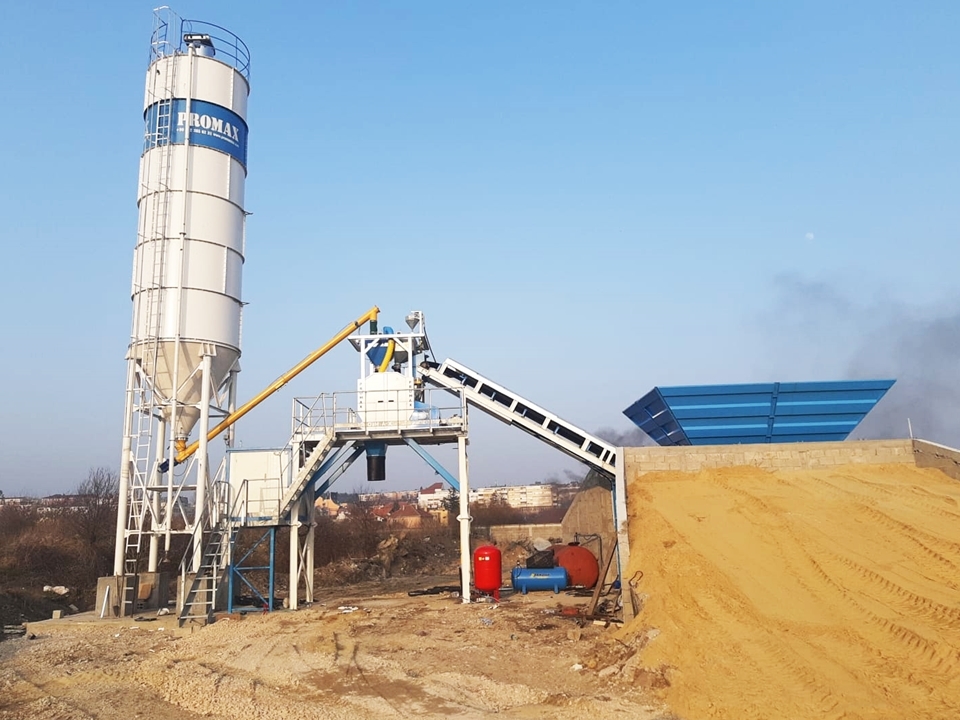

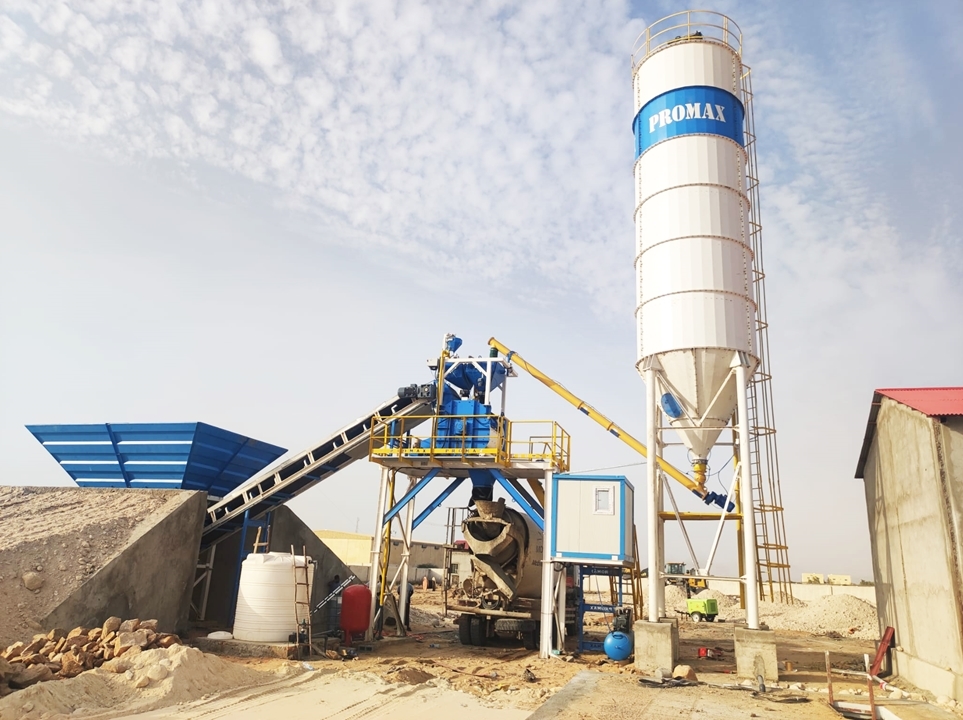

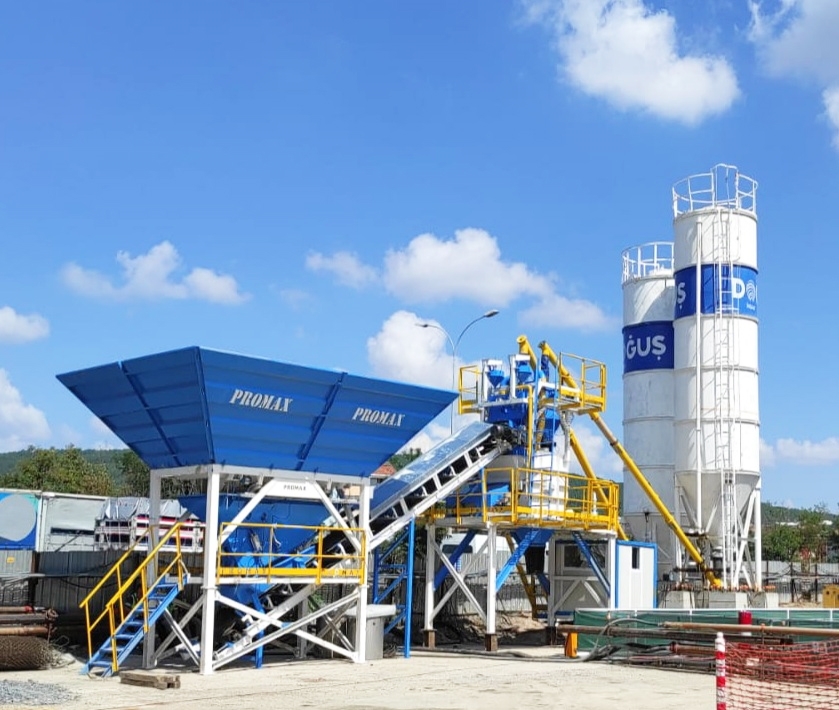

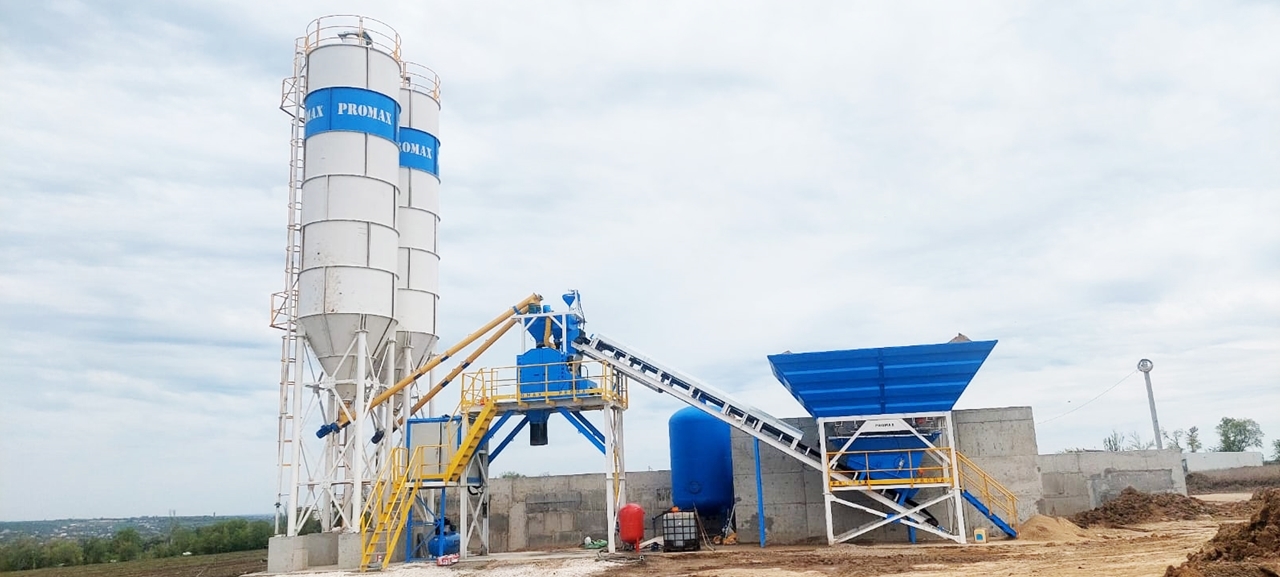

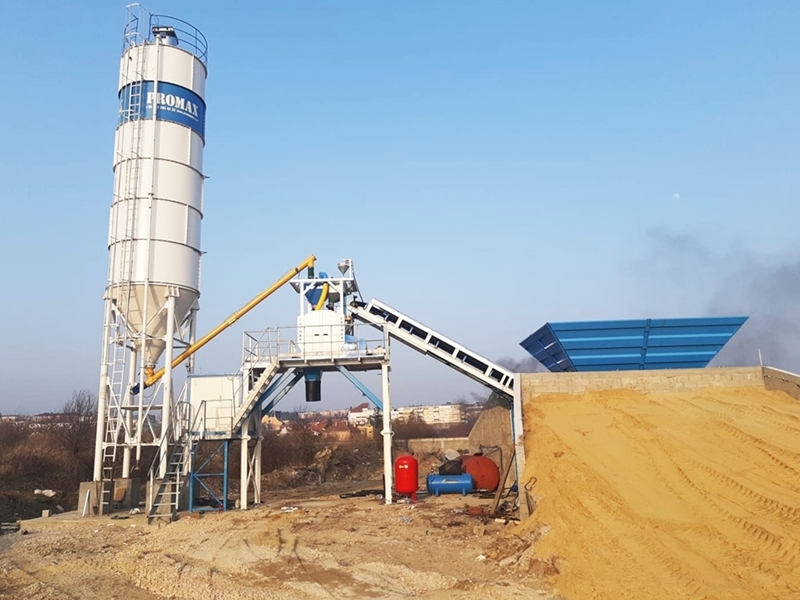

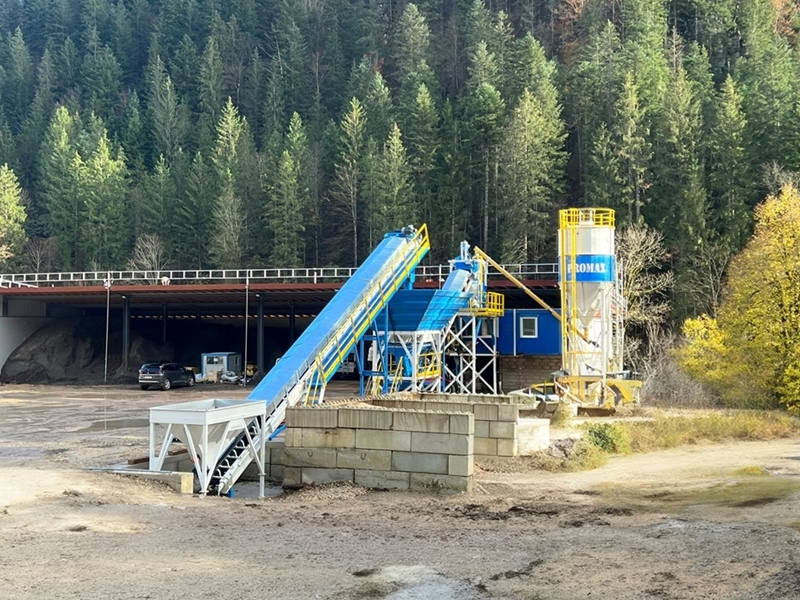

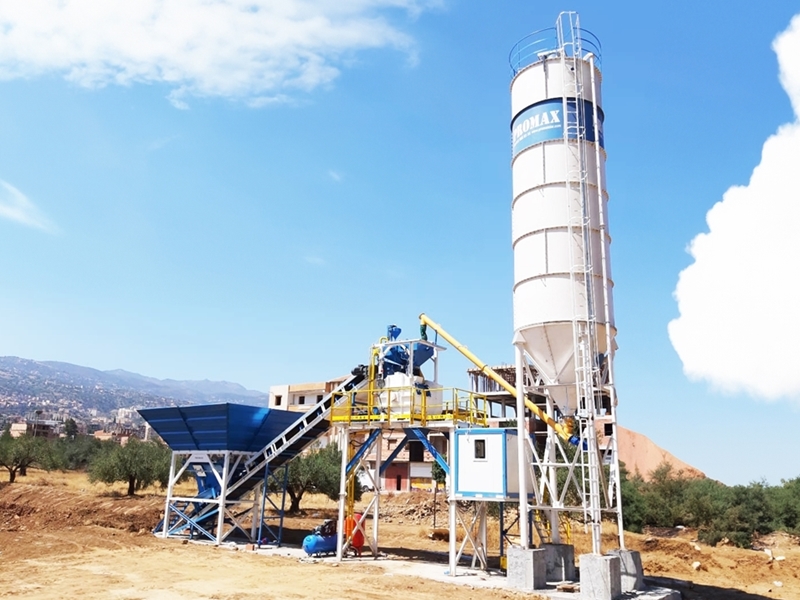

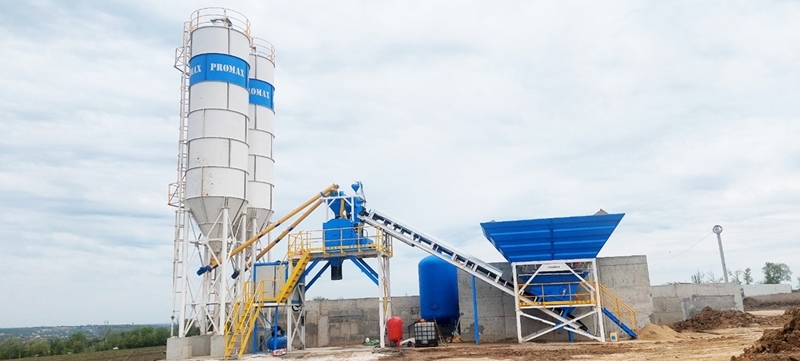

Kompakt Wytwórnia Betonu C60 SNG Plus
The Promax C60 SNG Plus Compact "Plug-and-Play" Concrete Plant offers significant advantages in concrete production and job site mobilization thanks to its low transportation costs, ease of use, and rapid installation. Promax developed this system, designed to fit perfectly into a container, to minimize transportation and installation challenges for concrete plants.
Informacje ogólne
Promax C60 SNG Plus Compact “Plug & Play” Concrete Batching Plant offers significant advantages in concrete production and site mobilization with its low transportation cost, easy and simple operation, and fast installation features. Promax has developed this system, designed to fit entirely into a container, to minimize the transportation and assembly challenges of concrete batching plants.
Advantages:
- Low Transportation Cost: Can be transported with only 1 × 40 FT container or 1 standard trailer.
- Easy and Simple Operation: Delivered with all equipment installed and electrical works completed, ensuring simple and user-friendly operation.
- Fast Installation: Requires minimum assembly on-site and can be commissioned in a short time.
Promax C60 SNG Plus is delivered with all necessary equipment installed and electrical installation completed, providing a fast assembly and commissioning process at the construction site.
Technical Specifications:
- Plant Capacity:
- Compacted Concrete Capacity: 60 m³/h
- Mixer Features:
- Mixer Type: Single Shaft
- Dry Capacity: 1500 L
- Mixer Capacity: 1000 L
- Motor Power: 37 kW
- Aggregate Hopper:
- 4 Compartments: 4 × 10 = 40 m³
- Mixer Conveyor Belt:
- Width: 800 mm
- Length: 12000 mm
- Motor Power: 15 kW
- Cement, Water, Additive Weighing:
- Aggregate Weighing: 2200 kg
- Cement Weighing: 600 kg
- Water Weighing: 400 L
- Additive Weighing: 50 kg
- Cement Silo:
- Capacity: 75–100–150–200 tons
- Number of Silos: 1, 2, 3, or 4 units
- Cement Silo Equipment:
- Screw Diameter: 219 mm
- Screw Length: 7000 mm
- Motor Power: 11 kW
- Silotop Filter
- Flap – Manual Handle
- Air Compressor:
- Capacity: 500 L/min
- Working Pressure: 7–8 bar
- Motor Power: 5.5 kW
Promax C60 SNG Plus Compact “Plug & Play” Concrete Batching Plant ensures high efficiency and low-cost concrete production, delivering professional solutions. Contact us for more information and quotations.
Informacje techniczne
| Concrete Capacity | |
| Compacted Concrete Capacity | 60 m3/h |
| Mixer Specifications | |
| Mixer Type | Single Shaft |
| Dry Capacity | 1500 lt |
| Mixer Capacity | 1000 lt |
| Motor Power | 37 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 10 = 40m3 |
| Aggregate Weighing Belt | |
| Mixer Conveyor Belt | |
| Width | 800 mm |
| Length | 12000 mm |
| Motor Power | 15 kW |
| Cement Water Additive Scales | |
| Aggregate Weighing | 2200 kg |
| Cement Weighing | 600 kg |
| Water Weighing | 400 lt |
| Additive Weighing | 50 kg |
| Cement Silo | |
| Capacity | 75-100-150-200 ton |
| Silo Quantity | 1,2,3,4 pieces |
| Cement Silo And Screw Conveyor | |
| Diameter | 219 mm |
| Length | 7000 mm |
| Motor Power | 11 kW |
| Silotop Filter | |
| Flap – Manual Lever | |
| Air Compressor | |
| Capacity | 500 lt/dk |
| Working Pressure | 7-8 bar |
| Motor Power | 5,5 kW |
