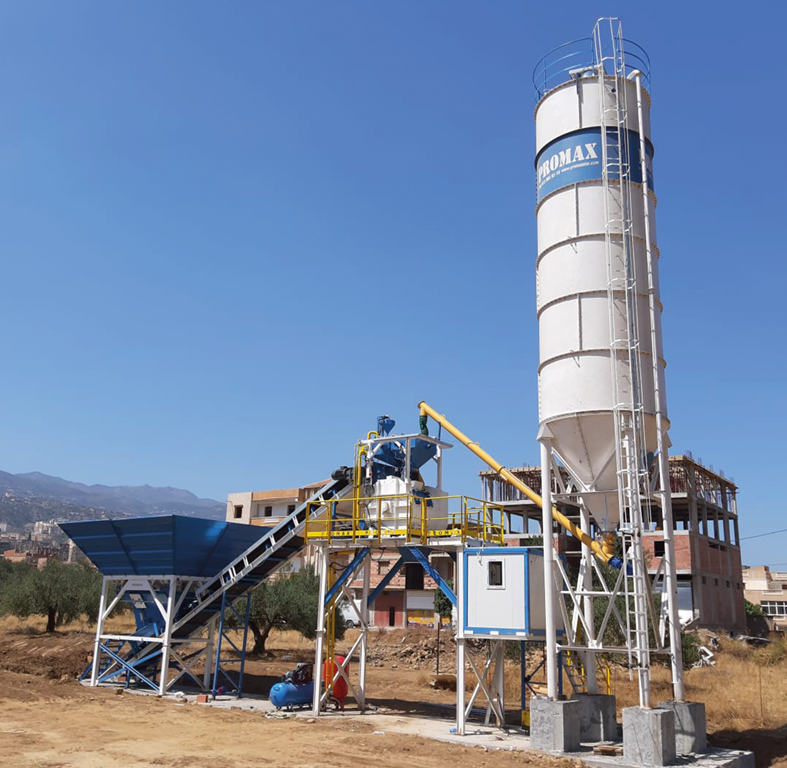

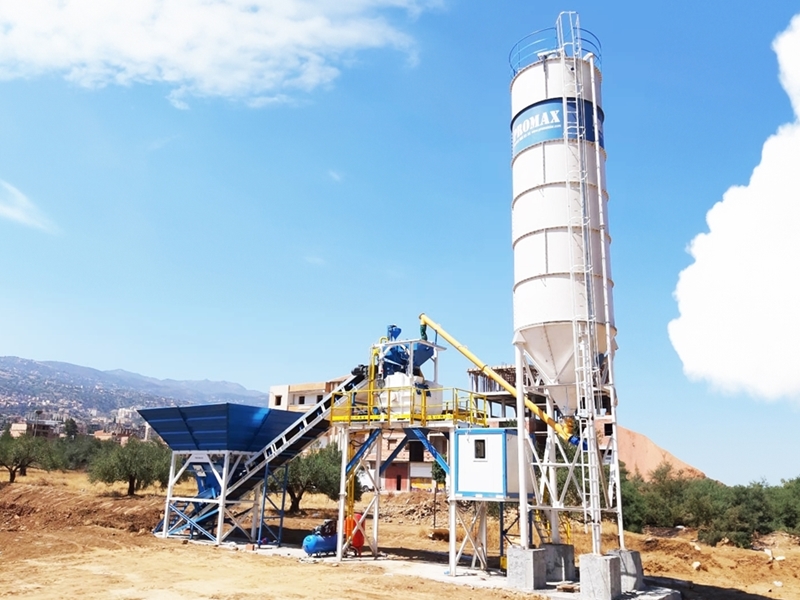

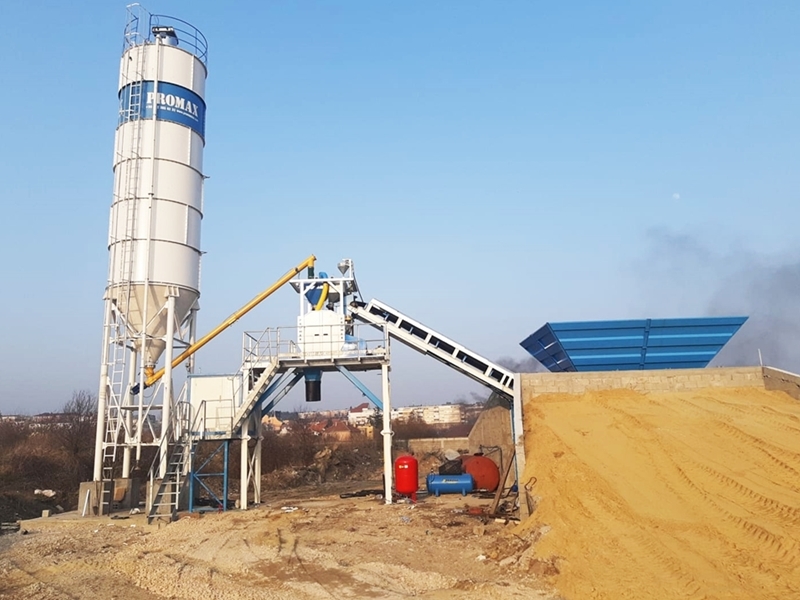

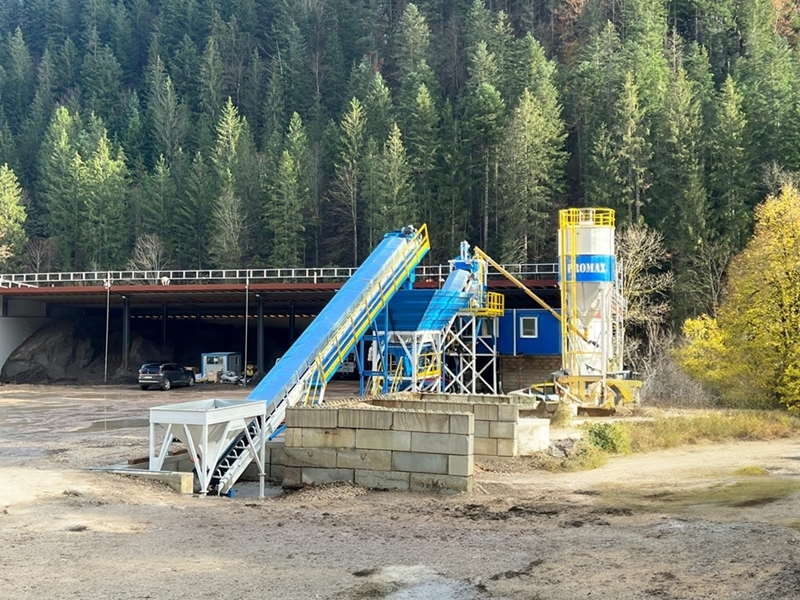

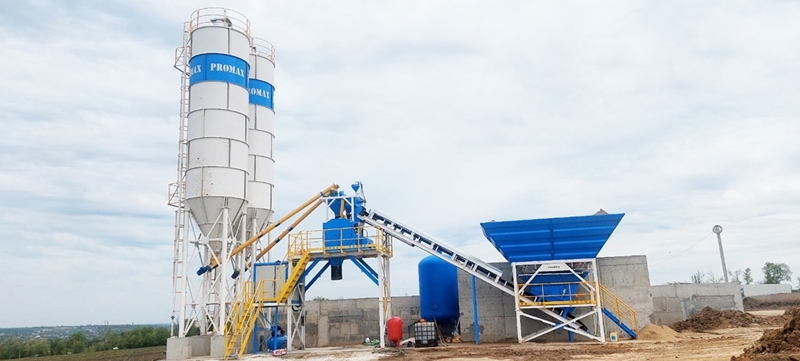

Centrale à Béton Compacte C60 Plus
Centrale à Béton Compacte C60 Plus
The Promax C60 SNG Plus Compact "Plug-and-Play" Concrete Plant offers significant advantages in concrete production and job site mobilization thanks to its low transportation costs, ease of use, and rapid installation. Promax developed this system, designed to fit perfectly into a container, to minimize transportation and installation challenges for concrete plants.
Informations générales
Promax C60 SNG Plus Compact “Plug & Play” Concrete Batching Plant offers significant advantages in concrete production and site mobilization with its low transportation cost, easy and simple operation, and fast installation features. Promax has developed this system, designed to fit entirely into a container, to minimize the transportation and assembly challenges of concrete batching plants.
Advantages:
- Low Transportation Cost: Can be transported with only 1 × 40 FT container or 1 standard trailer.
- Easy and Simple Operation: Delivered with all equipment installed and electrical works completed, ensuring simple and user-friendly operation.
- Fast Installation: Requires minimum assembly on-site and can be commissioned in a short time.
Promax C60 SNG Plus is delivered with all necessary equipment installed and electrical installation completed, providing a fast assembly and commissioning process at the construction site.
Informations Techniques
| Capacité de la Centrale | |
| Capacité de béton compacté | 60 m3/h |
| Les Spécifications du Malaxeur | |
| Type du Malaxeur | Arbre Unique |
| Capacité à Sec | 1500 lt |
| Capacité du Malaxeur | 1000 lt |
| Puissance du Moteur | 1 x 37 kW |
| Bande Convoyeur du Malaxeur | |
| Largeur | 800 mm |
| Longueur | 12000 mm |
| Puissance du Moteur | 15 kW |
| Trémie d’Agrégat | |
| Ensemble de 4 Trémies | 4 x 20 m³ = 80 m³ |
| Grille de Trémie | Optionnel |
| Compresseur d'Air | |
| Capacité | 830 lt / min |
| Volume du Réservoir | 500 lt |
| Pression du Travail | 8 - 10 bar |
| Puissance du Moteur | 5,5 kW |
| Silo à Ciment et Équipements | |
| Capacité | 75 - 100 - 150 - 200 - 500 Tons |
| Quantité du Silo | 1-6 Piece |
| Diamètre de la Vis Transporteuse | 219 mm |
| Longueur de la Vis Transporteuse | 7000 mm |
| Puissance du Moteur de la Vis Transporteuse | 9,2 kW |
| Filtre Silo Top | |
| Vanne – Bras | |
| Manuel Valve de Sécurité | |
| Les Trémies de Pesage | |
| Trémie de Pesage d’Agrégat | 4200 kg |
| Trémie de Pesage Ciment | 600 kg |
| Trémie de Pesage de l'Eau | 350 lt |
| Trémie de Pesage d’Additif | 25 kg |
| Trémie de Pesage d’Agrégat | |
| Largeur | 800 mm |
| Longueur | 11000 mm |
| Puissance du Moteur | 11 kW |
| Cellule de Charge | 4 x 5000 kg |
