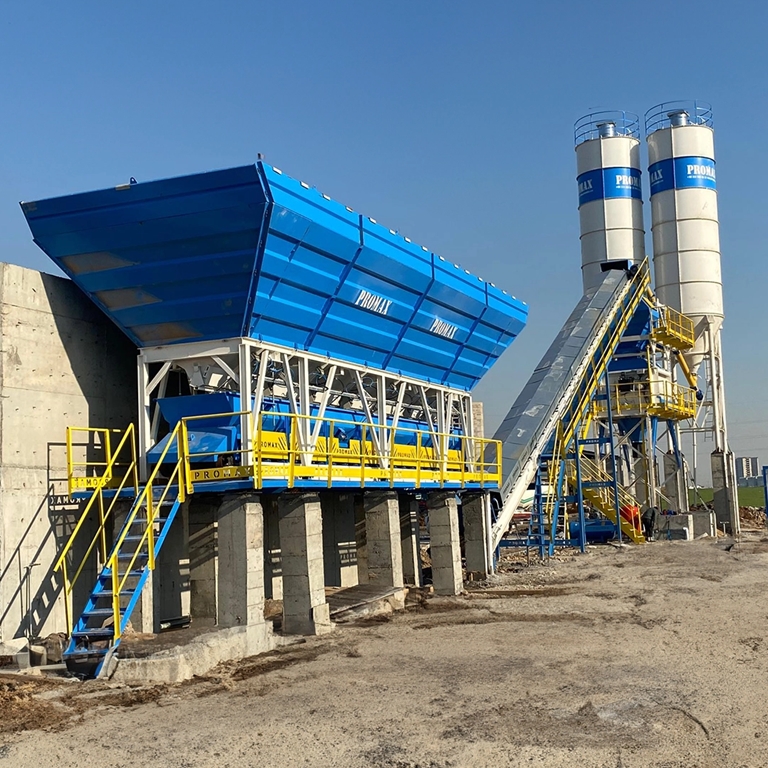

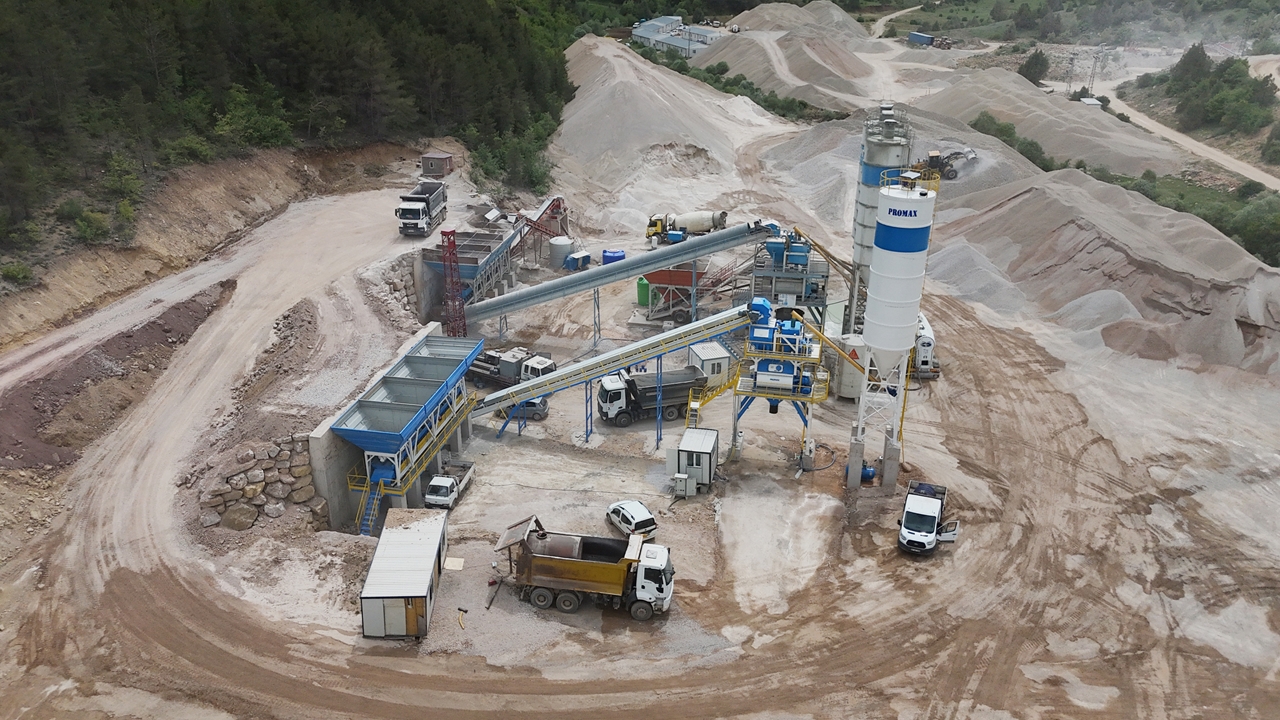

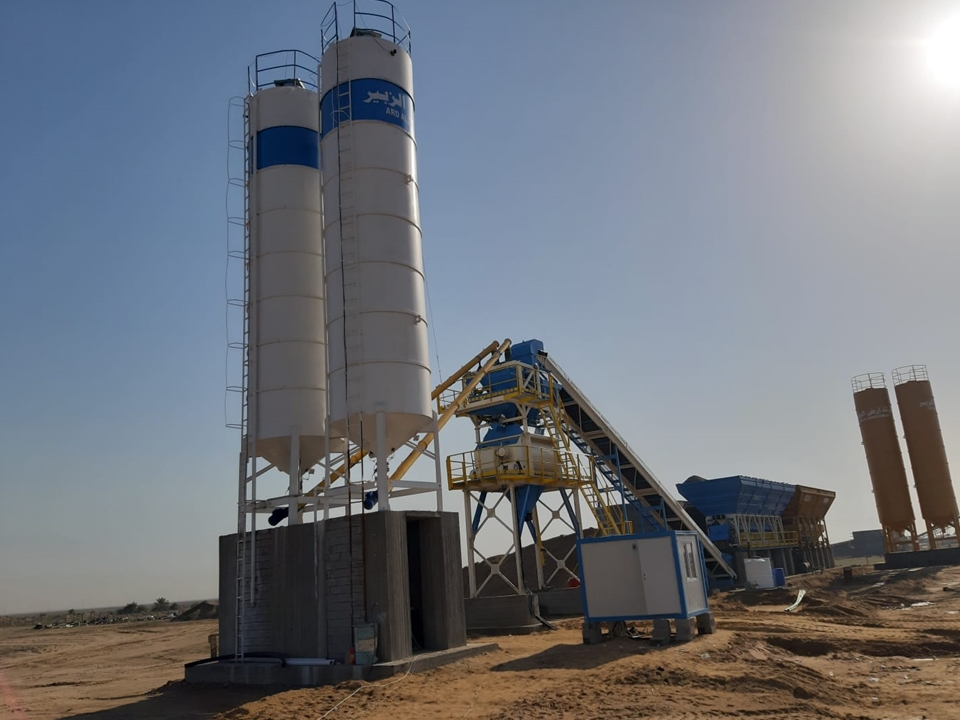

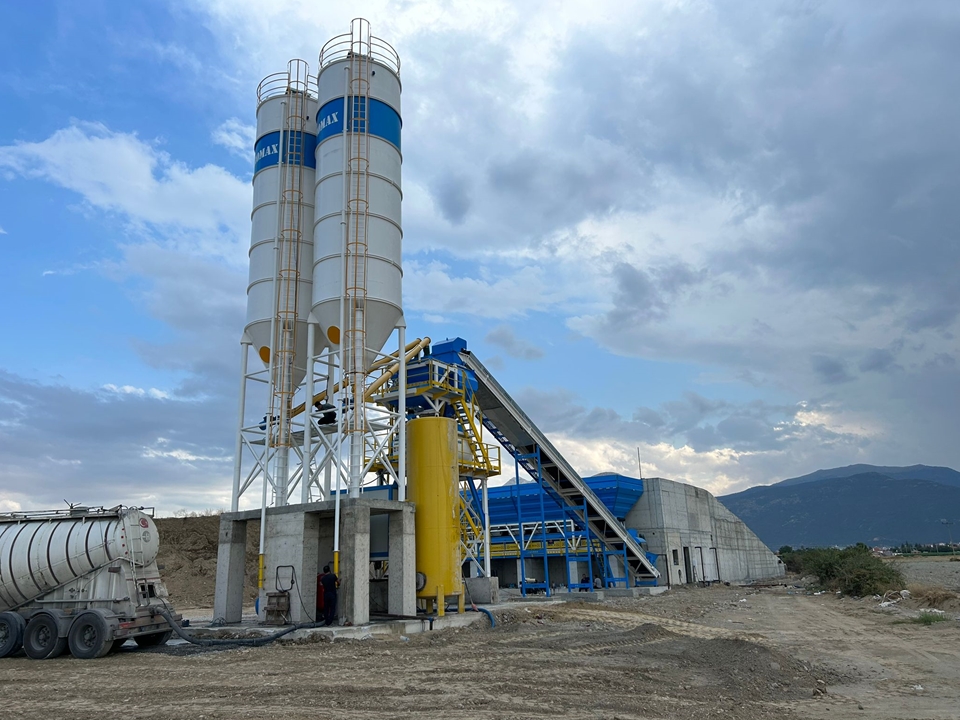

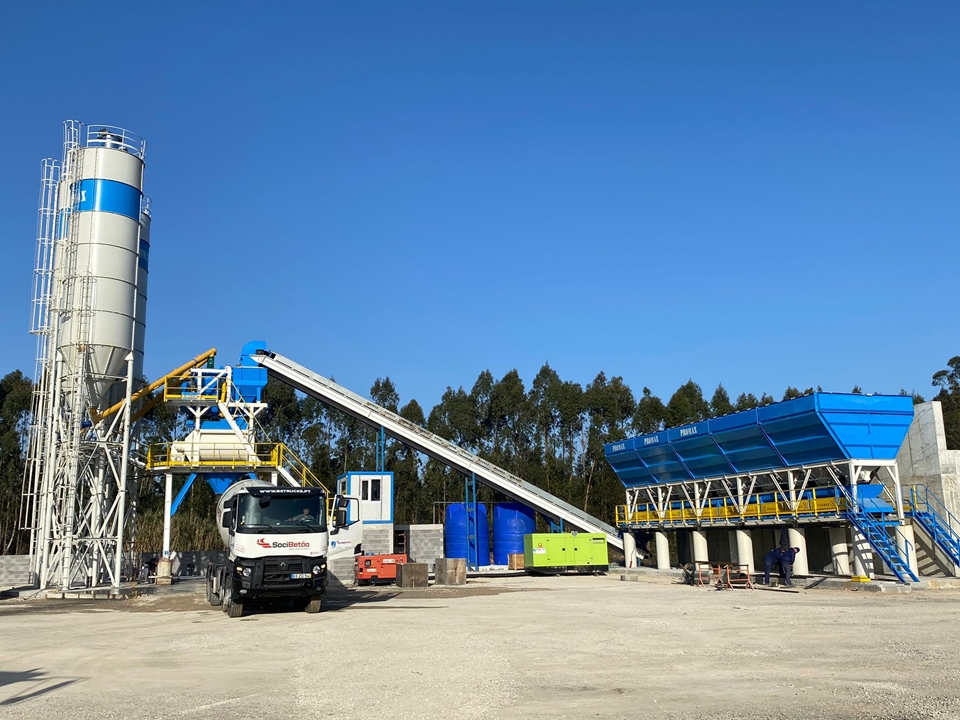

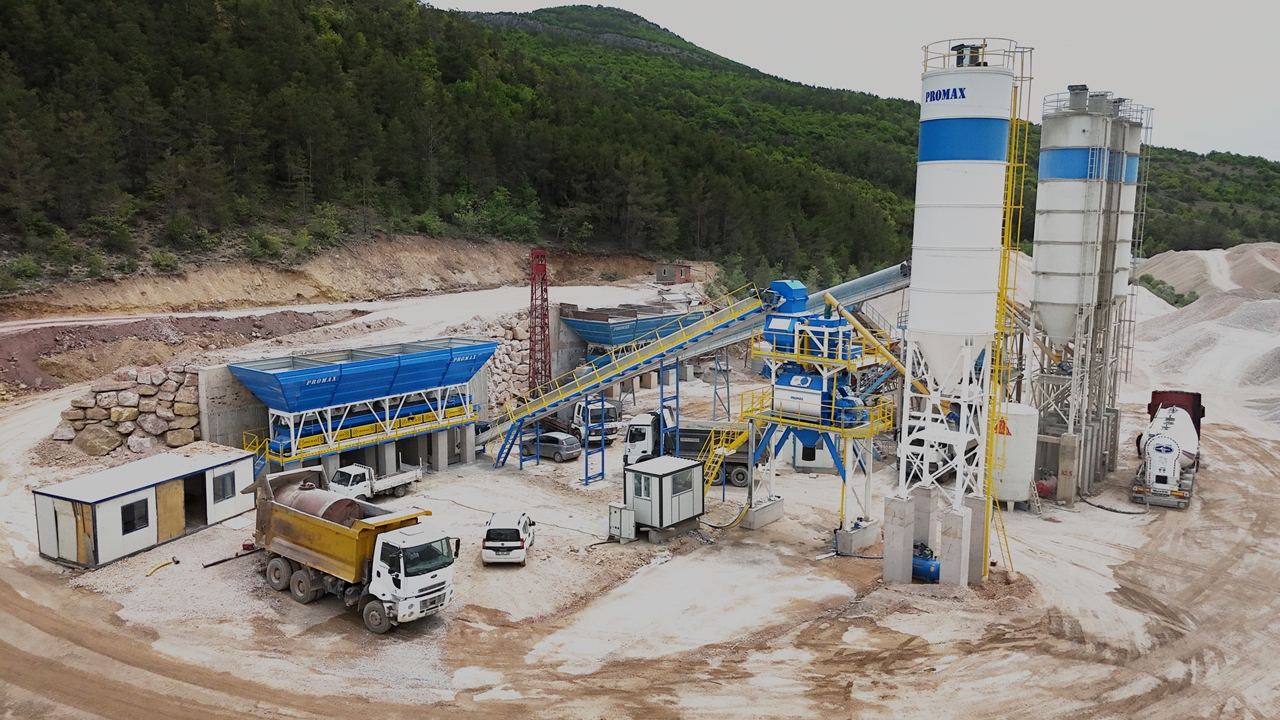

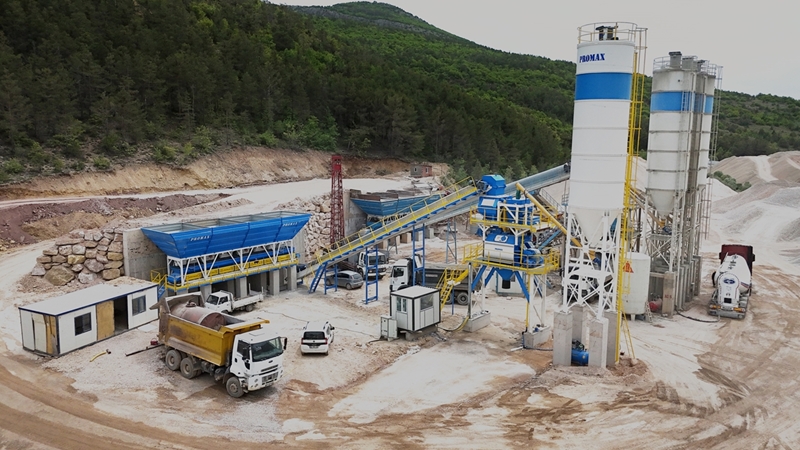

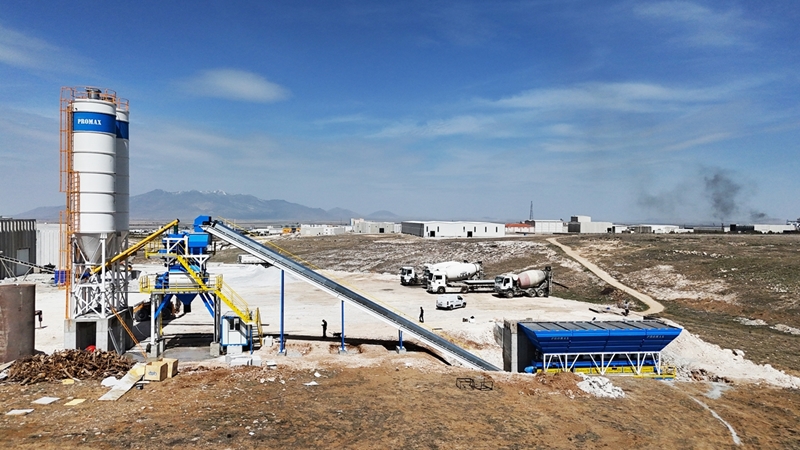

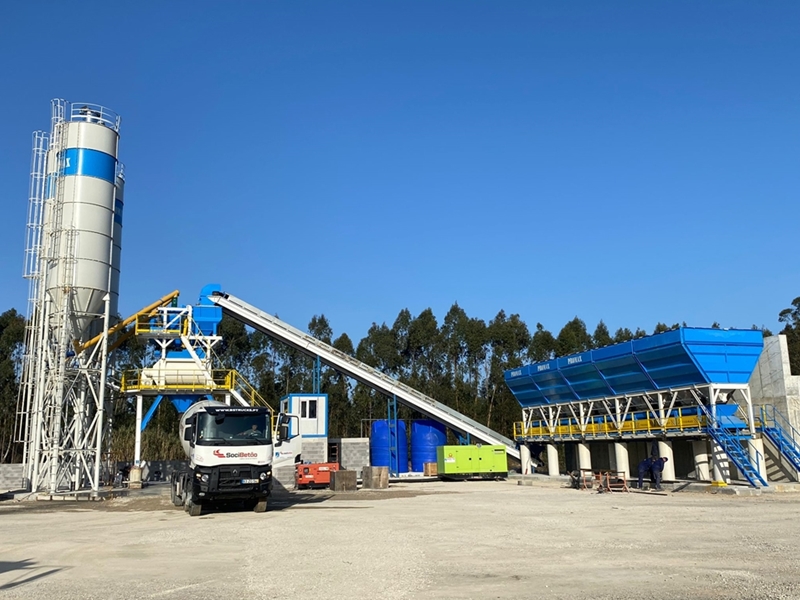

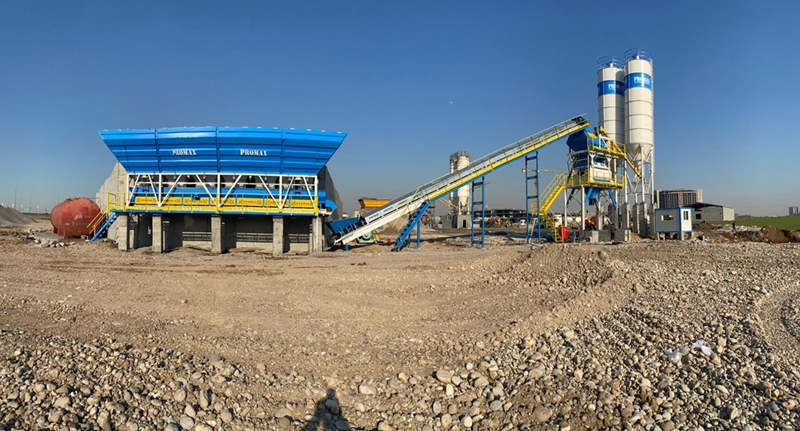

130m³/h Stationary Concrete Batching Plant

The Promax S130 TWN Stationary Concrete Batching Plant offers easy maintenance and high efficiency for your construction projects. This plant is ideal for ready-mixed concrete production and long-term concrete pouring at construction sites. Here are the standout features of the Promax S130 TWN:
General Information
The Promax S130 TWN Stationary Concrete Batching Plant offers easy maintenance and high efficiency for your construction projects. This plant is ideal for ready-mixed concrete production and long-term concrete pouring at construction sites. Here are the standout features of the Promax S130 TWN:
Easy Maintenance The Promax S130 TWN offers easy maintenance thanks to its user-friendly design. Maintenance and service procedures are quick and effortless, ensuring uninterrupted production processes.
Suitable for Harsh Conditions The Promax S130 TWN can operate steadily and smoothly even in challenging environmental conditions. It is designed according to the natural and settlement conditions of countries, providing eco-friendly usage.
RSS Concrete Production Capability The Promax S130 TWN is capable of producing RSS (Rolla, Slab, Strip) concrete. This enables the plant to produce a wide range of concrete types.
Ease of Transport The Promax S130 TWN can be transported with only 3 trucks or containers. This reduces your logistics costs and speeds up the installation process.
Eco-Friendly Design Promax Stationary Concrete Batching Plants provide the possibility of use without harming nature and humans, preserving the environment. This feature makes it ideal for sustainable projects.
The Promax S130 TWN Stationary Concrete Batching Plant continues to be the primary choice of professional producers by offering high efficiency and reliability. Elevate your projects with its wide product range and superior quality. Contact us for more information and to request a quote.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 130 m³/h |
| Mixer Specifications | |
| Mixer Type | Twin Shaft |
| Dry Capacity | 4500 lt |
| Mixer Capacity | 3000 lt |
| Engine Power | 2 x 55 kW |
| Mixer Conveyor Belt | |
| Width | 1000 mm |
| Length | 24000 mm |
| Engine Power | 30 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 30 m³ = 120 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 1210 lt / min |
| Tank Volume | 700 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 7.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 273 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 11 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 6500 kg |
| Cement Weighbridge | 2200 kg |
| Water Weighbridge | 1300 lt |
| Additives Weighbridge | 50 kg |
| Aggregate Weighbridge Belt | |
| Width | 1000 mm |
| Length | 12000 mm |
| Engine Power | 15 kW |
| Load Cell | 4 x 5000 kg |
