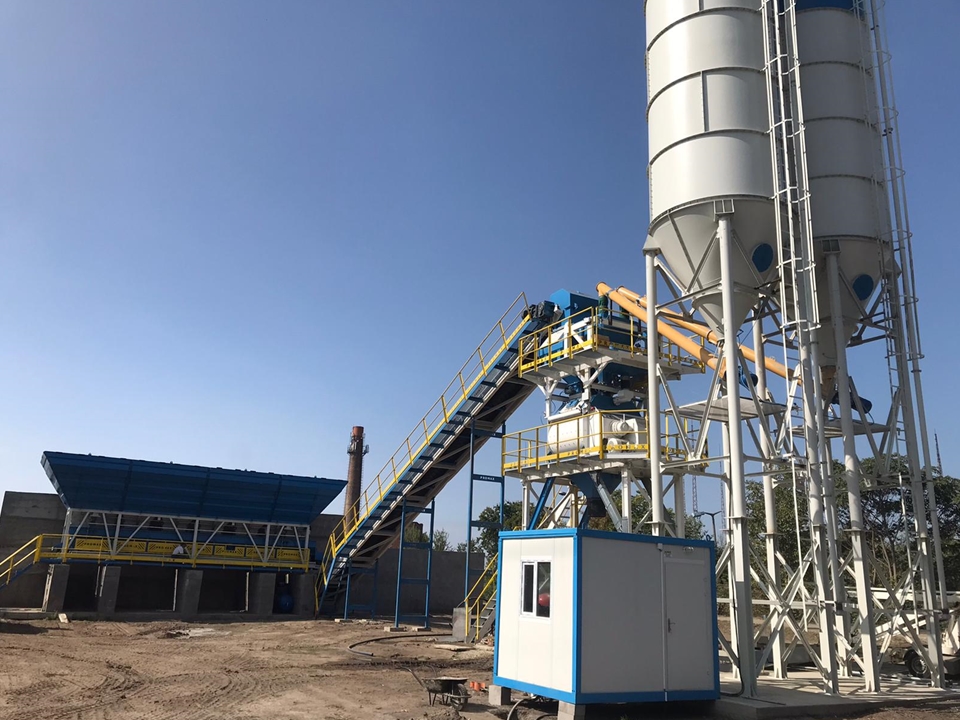

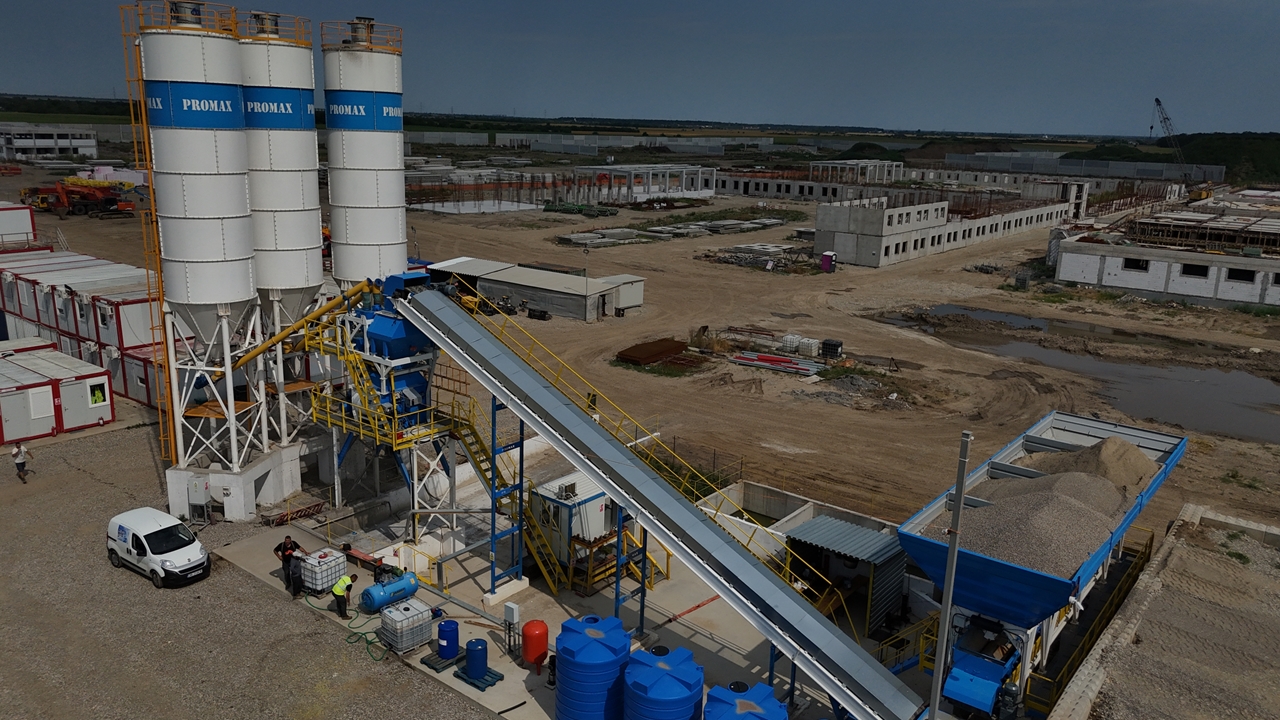

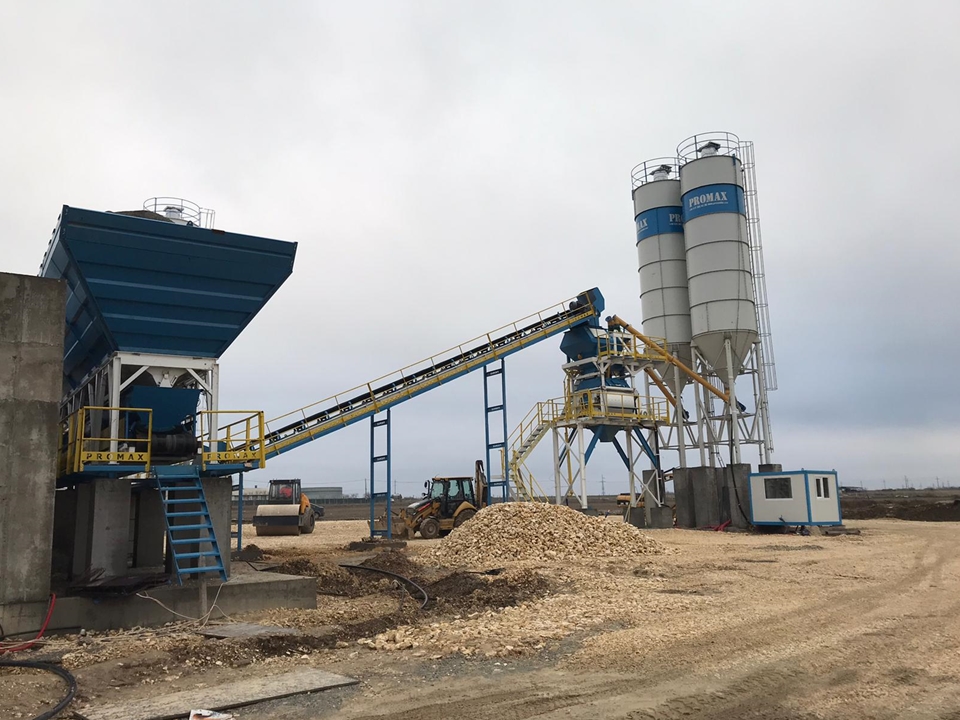

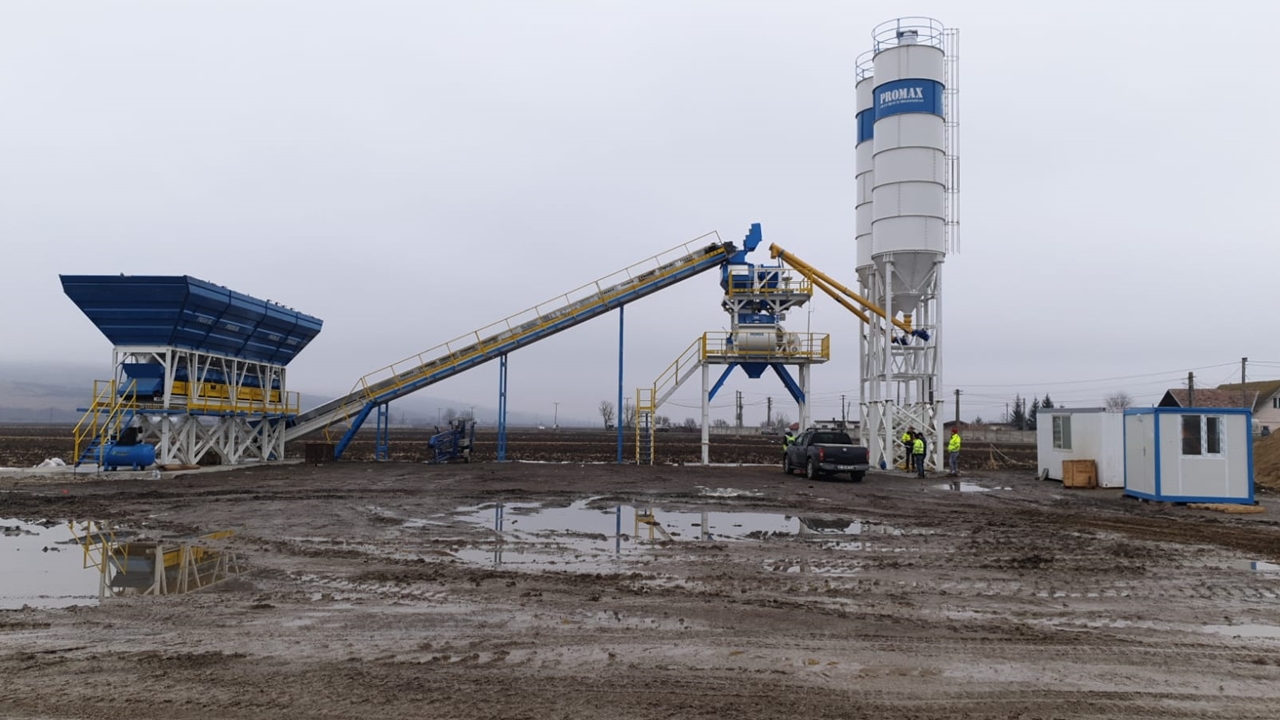

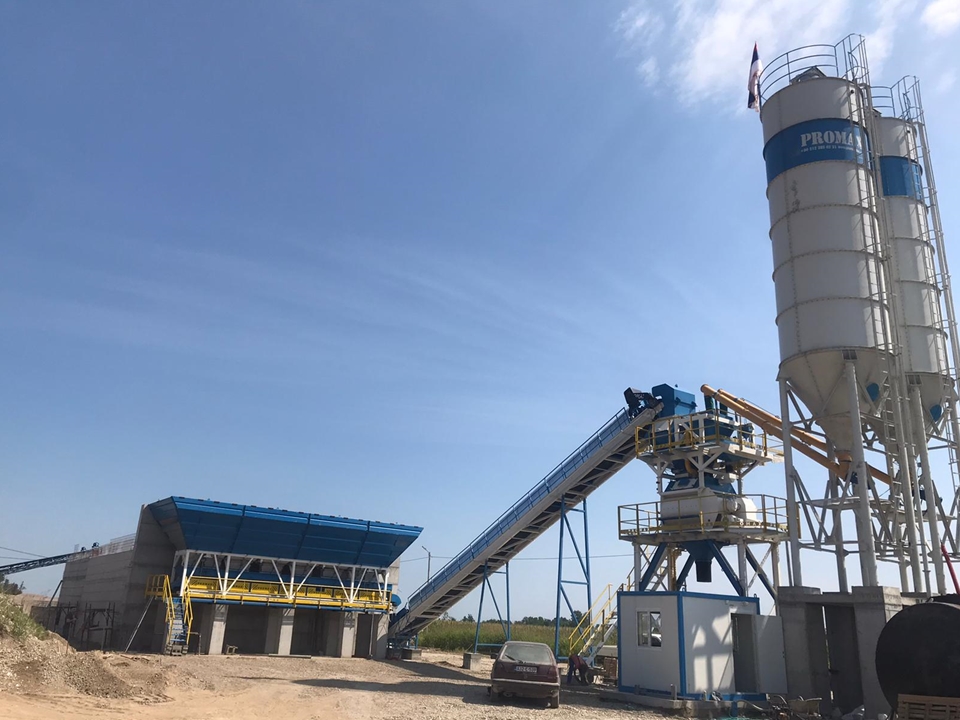

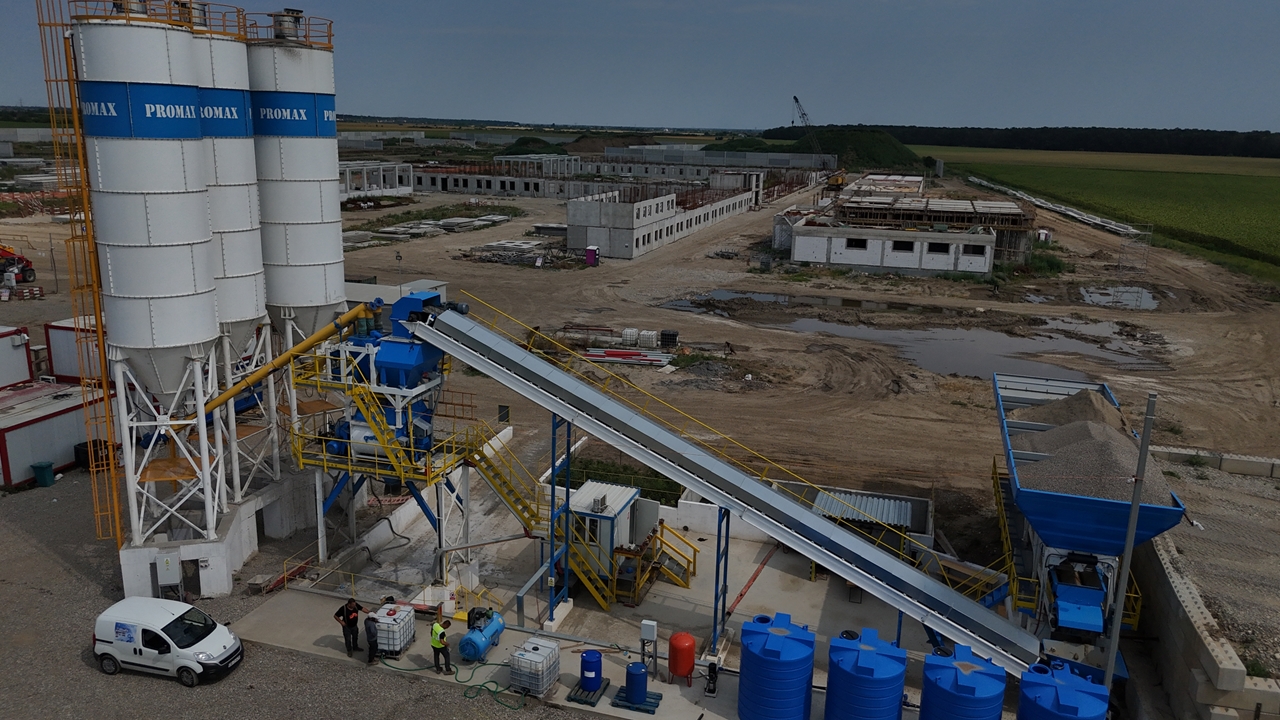

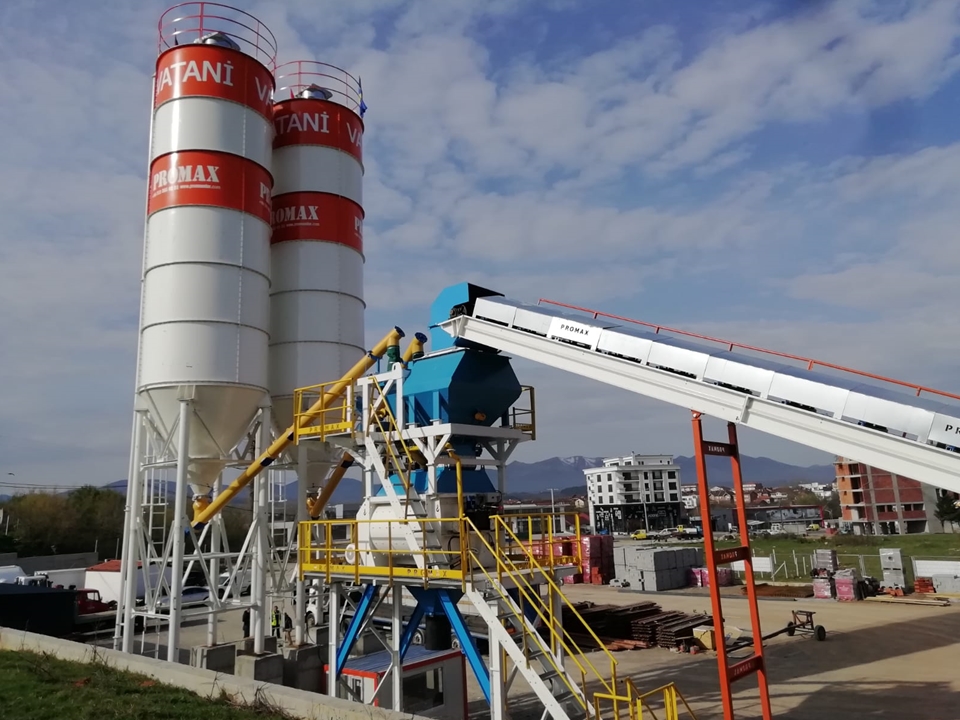

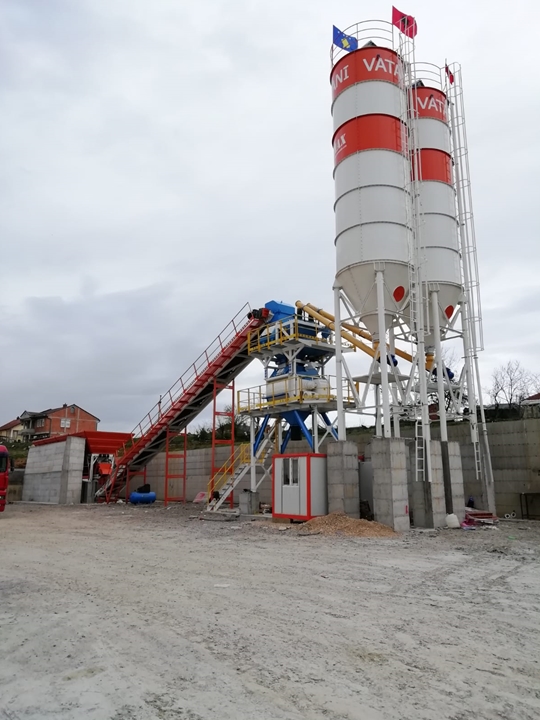

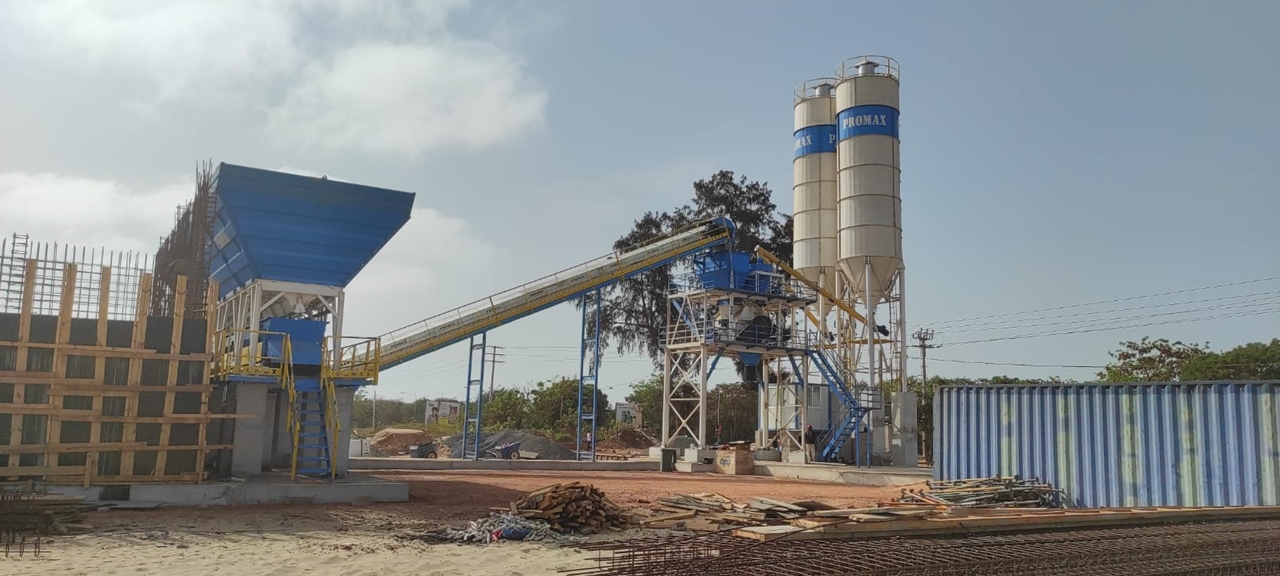

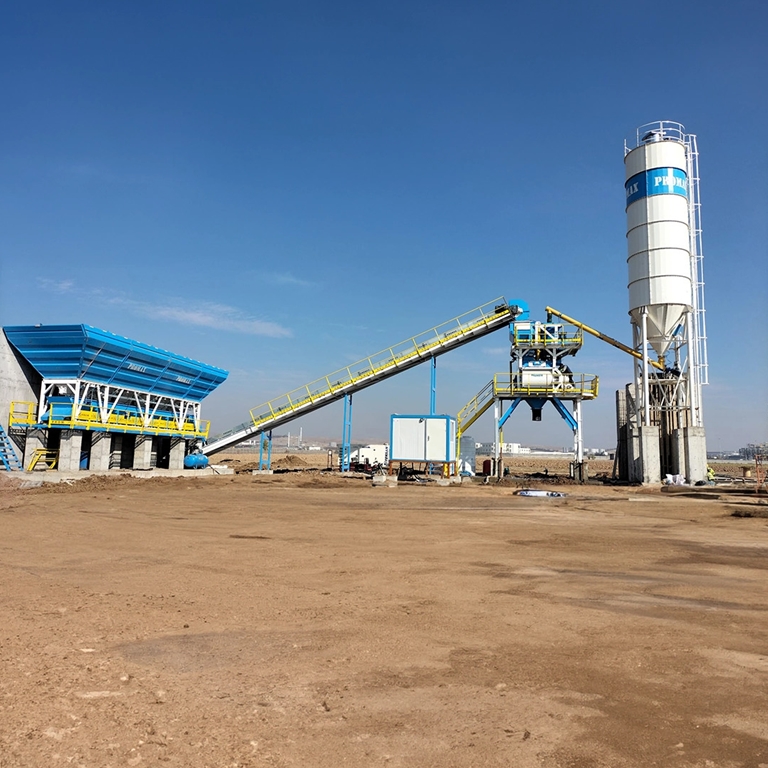

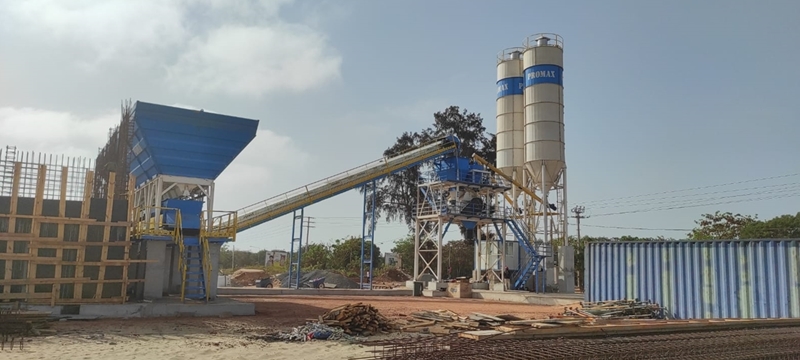

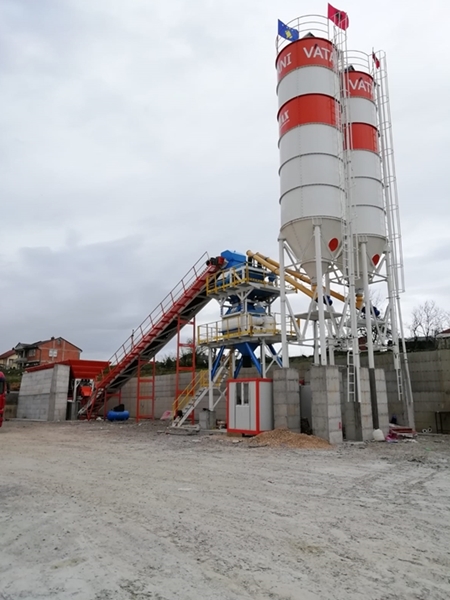

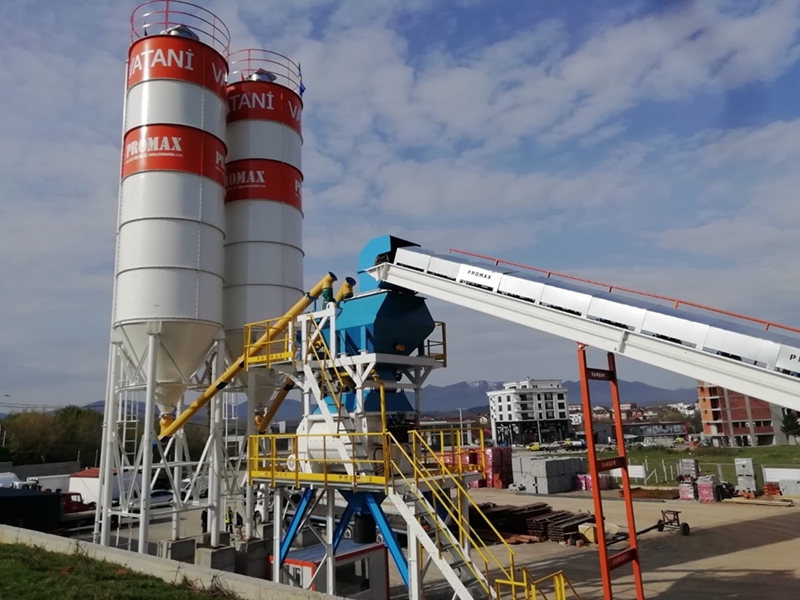

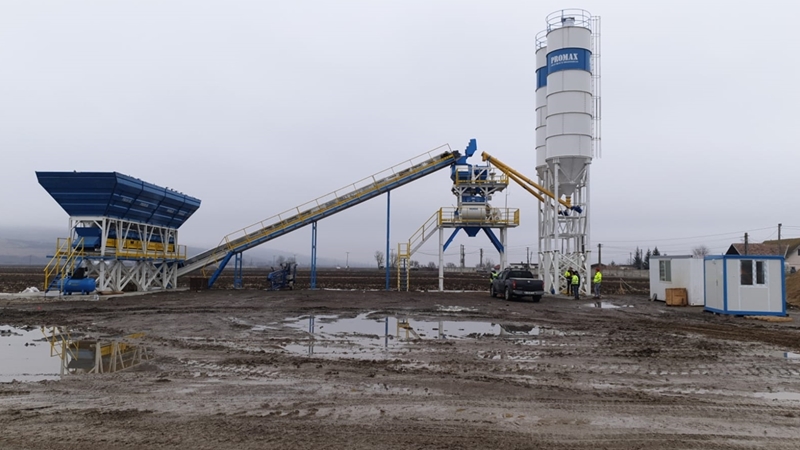

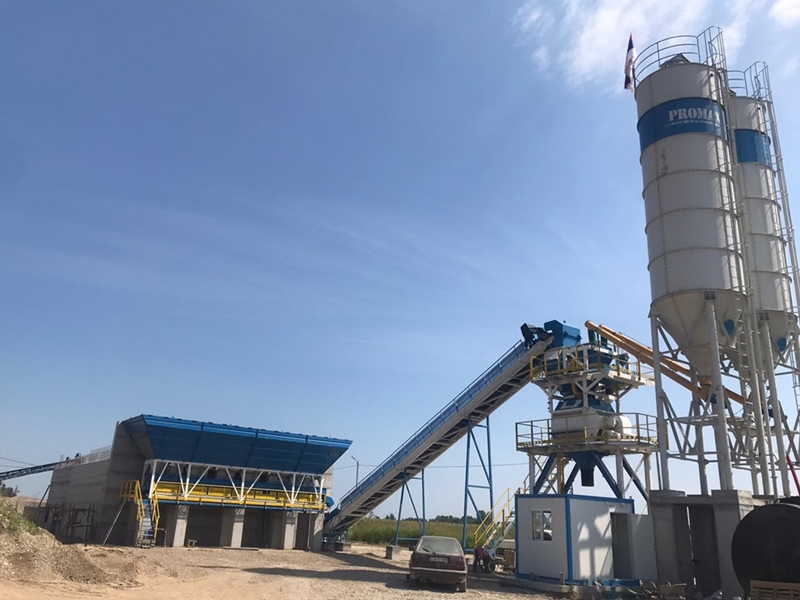

100m³/h Stationary Concrete Batching Plant

The Promax S100 TWN Stationary Concrete Batching Plant offers a high-efficiency and reliable solution for your construction projects. This plant is particularly preferred for ready-mixed concrete production and long-term concrete pouring at construction sites. Here are the standout features of the Promax S100 TWN:
General Information
The Promax S100 TWN Stationary Concrete Batching Plant offers a high-efficiency and reliable solution for your construction projects. This plant is particularly preferred for ready-mixed concrete production and long-term concrete pouring at construction sites. Here are the standout features of the Promax S100 TWN:
High Efficiency and Fast Production The Promax S100 TWN has a capacity to produce 100 cubic meters of compacted concrete per hour. Equipped with a Twin Shaft mixer, it offers a dry capacity of 3000 liters and a mixer capacity of 2000 liters. With a motor power of 2 x 37 kW, this mixer ensures fast and efficient production.
Easy Maintenance The Promax S100 TWN offers easy maintenance. Its user-friendly design allows for quick and effortless maintenance and service procedures. Additionally, with spare parts and service support, it guarantees uninterrupted operation during your production processes.
Suitable for Harsh Conditions The Promax S100 TWN can operate consistently and smoothly even in challenging environmental conditions. It is designed according to the natural and settlement conditions of countries, providing eco-friendly usage.
Ease of Transport The Promax S100 TWN can be transported with only 3 trucks or containers. This minimizes your logistics costs and speeds up the installation process.
Eco-Friendly Design Promax Stationary Concrete Batching Plants provide the possibility of use without harming nature and humans, preserving the environment. This feature makes it ideal for sustainable projects.
The Promax S100 TWN Stationary Concrete Batching Plant continues to be the primary choice of professional producers by offering high efficiency and reliability. Elevate your projects with its wide product range and superior quality. Contact us for more information and to request a quote.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 100 m³/h |
| Mixer Specifications | |
| Mixer Type | Twin Shaft |
| Dry Capacity | 3000 lt |
| Mixer Capacity | 2000 lt |
| Engine Power | 2 x 37 kW |
| Mixer Conveyor Belt | |
| Width | 1000 mm |
| Length | 24000 mm |
| Engine Power | 30 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 30 m³ = 120 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 1210 lt / min |
| Tank Volume | 700 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 7.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 273 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 11 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 6500 kg |
| Cement Weighbridge | 1500 kg |
| Water Weighbridge | 900 lt |
| Additives Weighbridge | 50 kg |
| Aggregate Weighbridge Belt | |
| Width | 1000 mm |
| Length | 12000 mm |
| Engine Power | 15 kW |
| Load Cell | 4 x 5000 kg |
