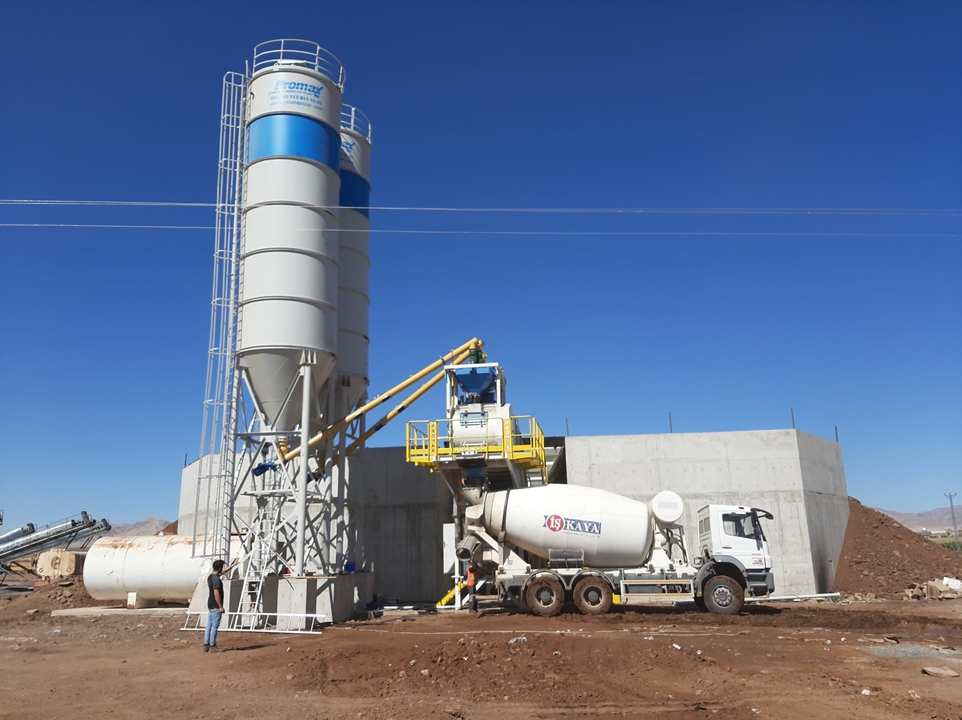

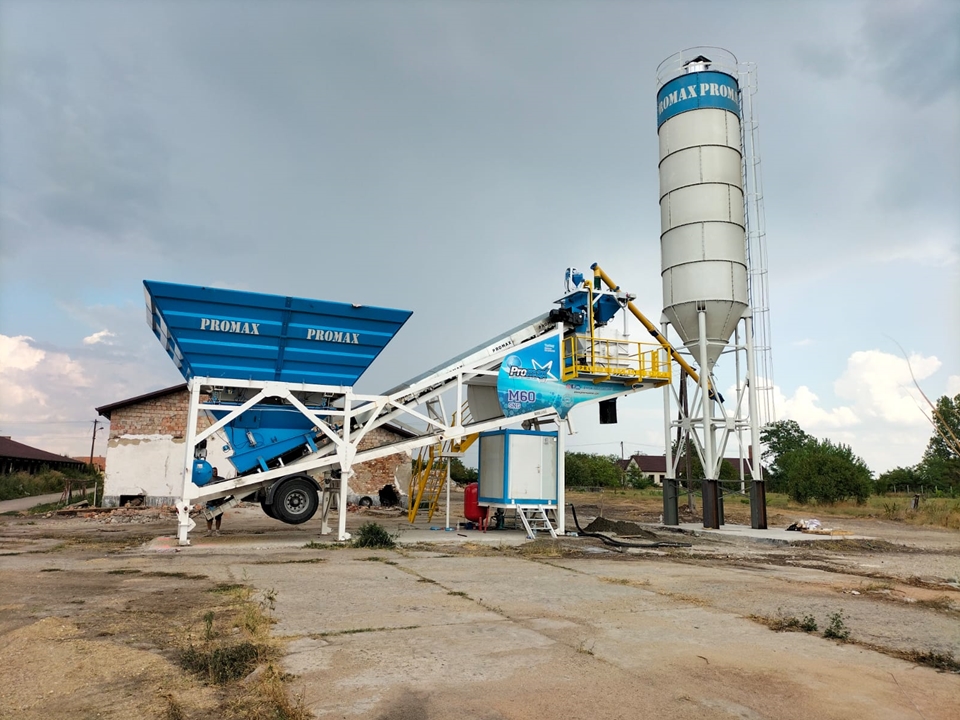

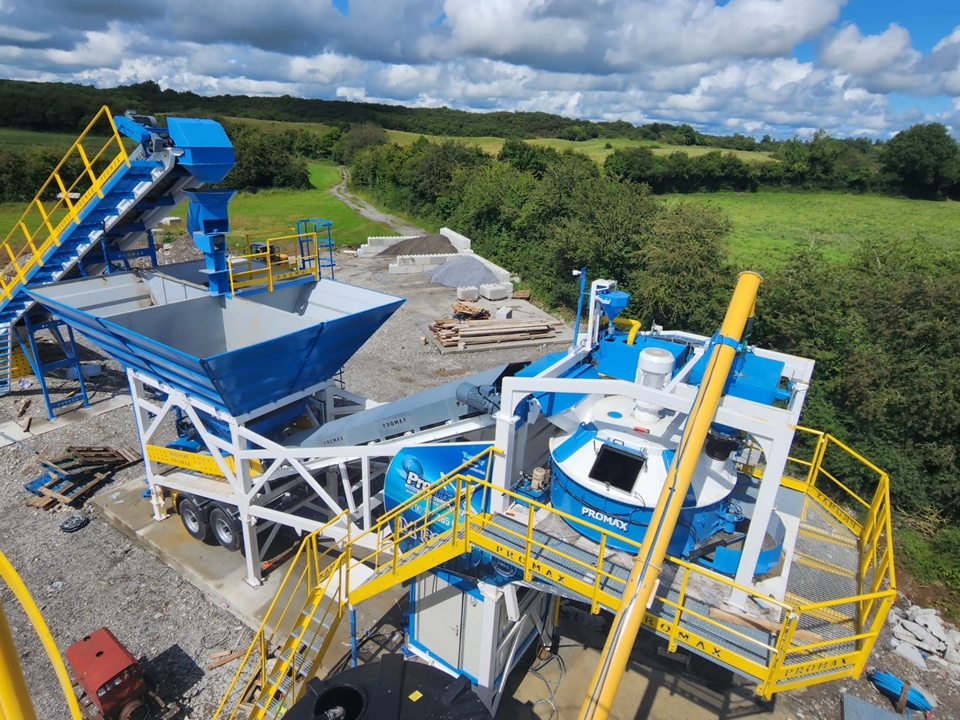

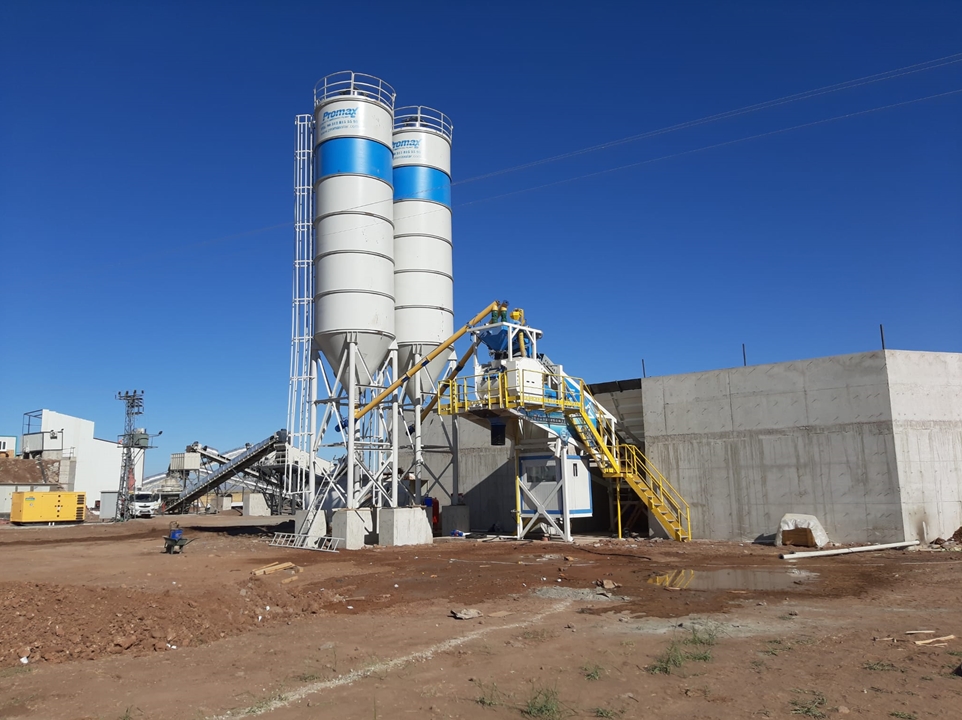

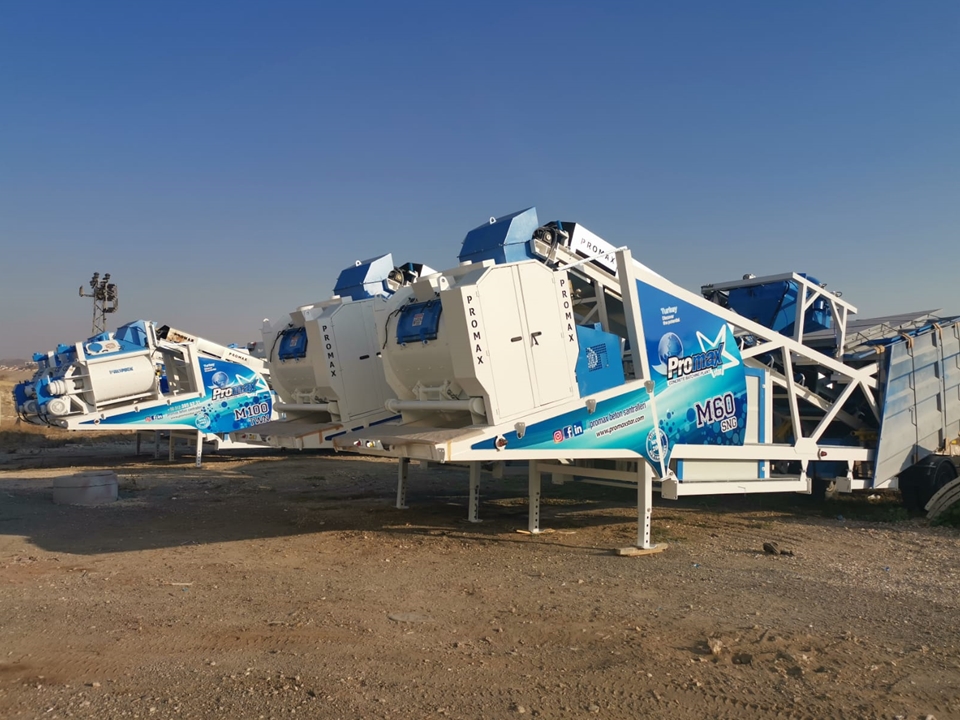

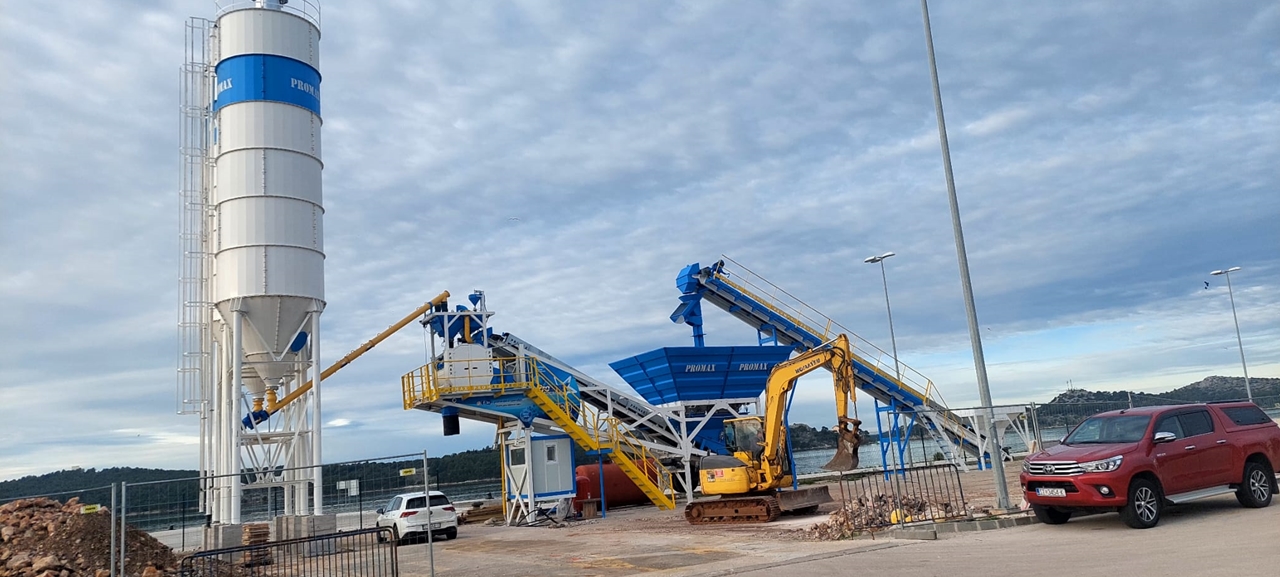

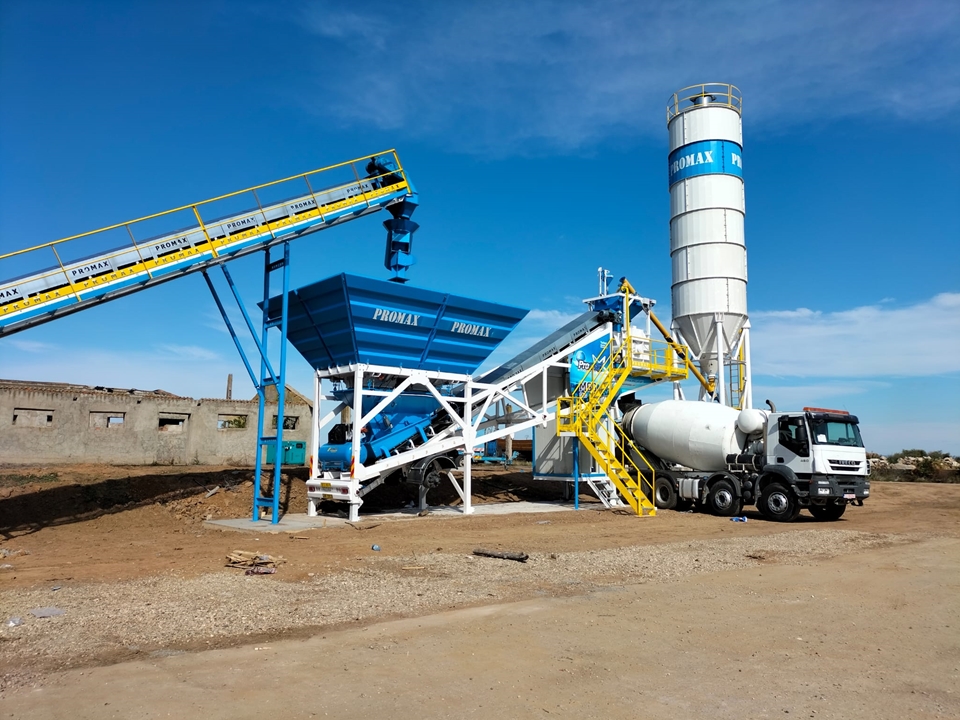

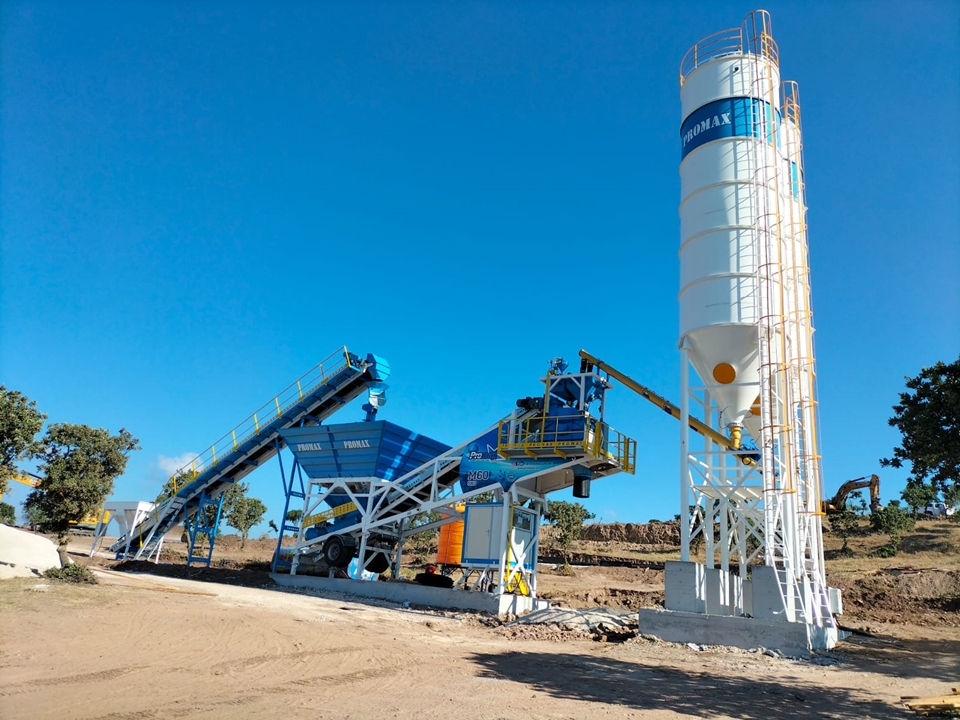

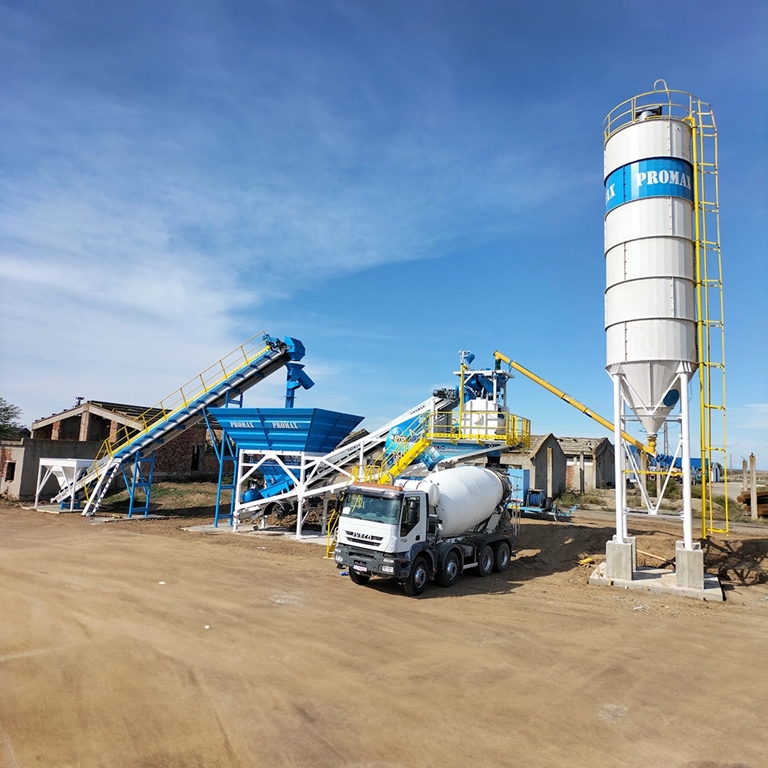

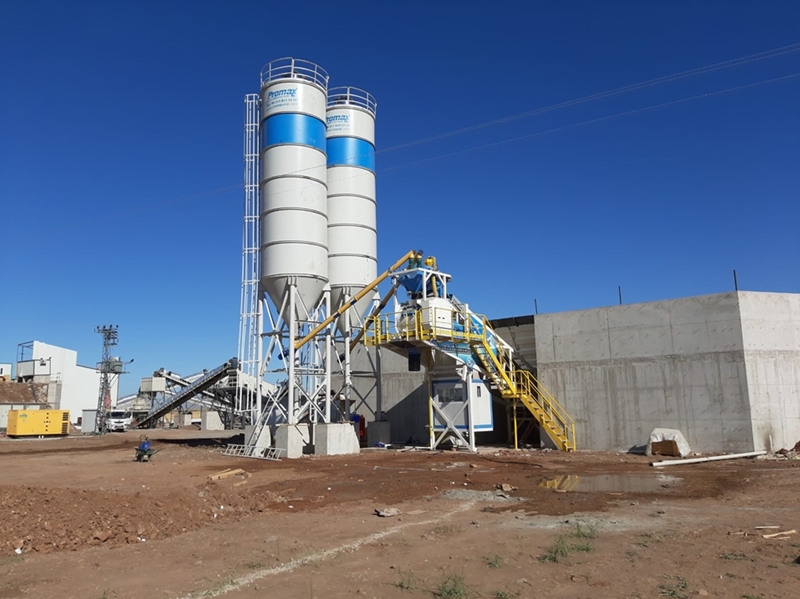

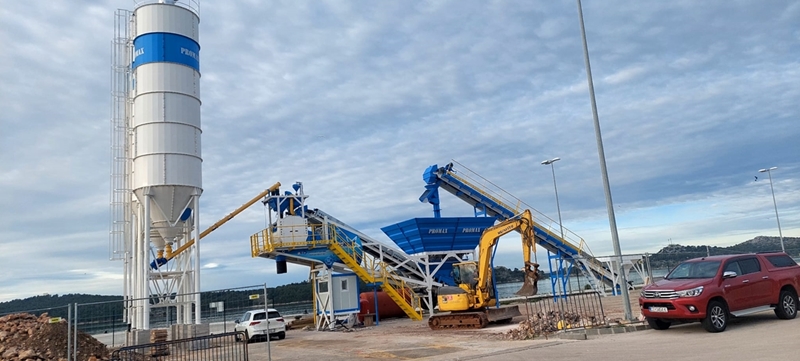

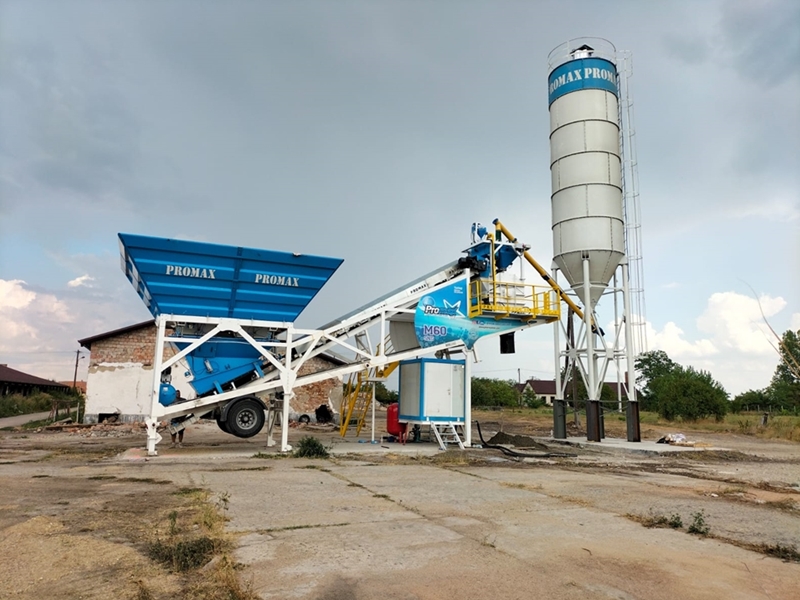

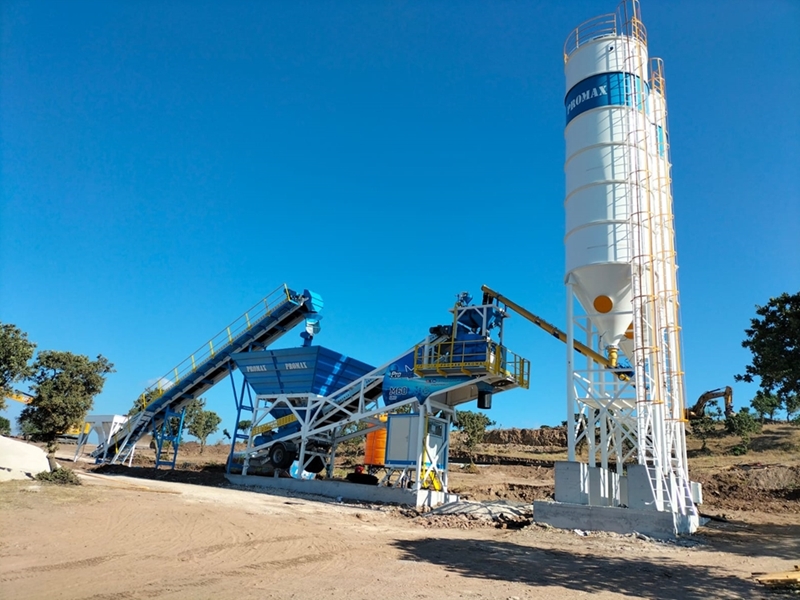

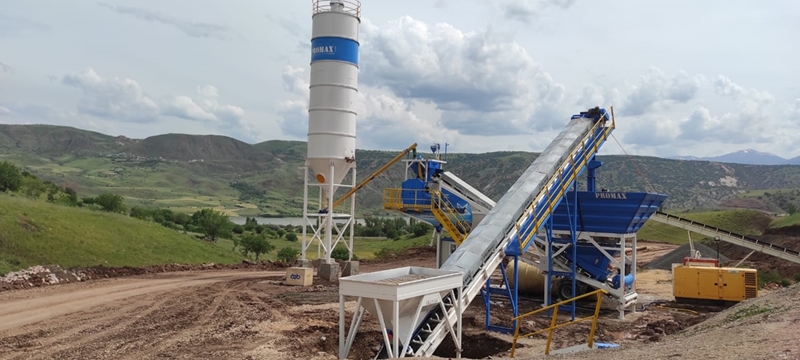

60m³/h Mobile Concrete Batching Plant
The Promax M60 SNG Mobile Concrete Batching Plant offers professional solutions for temporary needs with its quick installation and easy transport features. Trusted by leading contractors worldwide for short-term construction projects, this mobile-designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
General Information
The Promax M60 SNG Mobile Concrete Batching Plant offers professional solutions for temporary needs with its quick installation and easy transport features. Trusted by leading contractors worldwide for short-term construction projects, this mobile-designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
Advantages:
- Easy Transport: The mobile design allows for quick and easy transport from one location to another.
- Minimal Infrastructure Investment: Requires minimal infrastructure for installation.
- Quick Installation: Can be set up and ready for production in a short period.
Developed through extensive R&D, the Promax M60 SNG is a high engineering product that combines the power and capacity of stationary plants with the advantages of mobility, changing the habits of low-capacity production in mobile concrete plants.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 60 m³/h |
| Mixer Specifications | |
| Mixer Type | Single Shaft |
| Dry Capacity | 1500 lt |
| Mixer Capacity | 1000 lt |
| Engine Power | 1 x 37 kW |
| Mixer Conveyor Belt | |
| Width | 800 mm |
| Length | 11000 mm |
| Engine Power | 15 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 10 m³ = 40 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 830 lt / min |
| Tank Volume | 500 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 5.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 219 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 9.2 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 2200 kg |
| Cement Weighbridge | 600 kg |
| Water Weighbridge | 350 lt |
| Additives Weighbridge | 25 kg |
