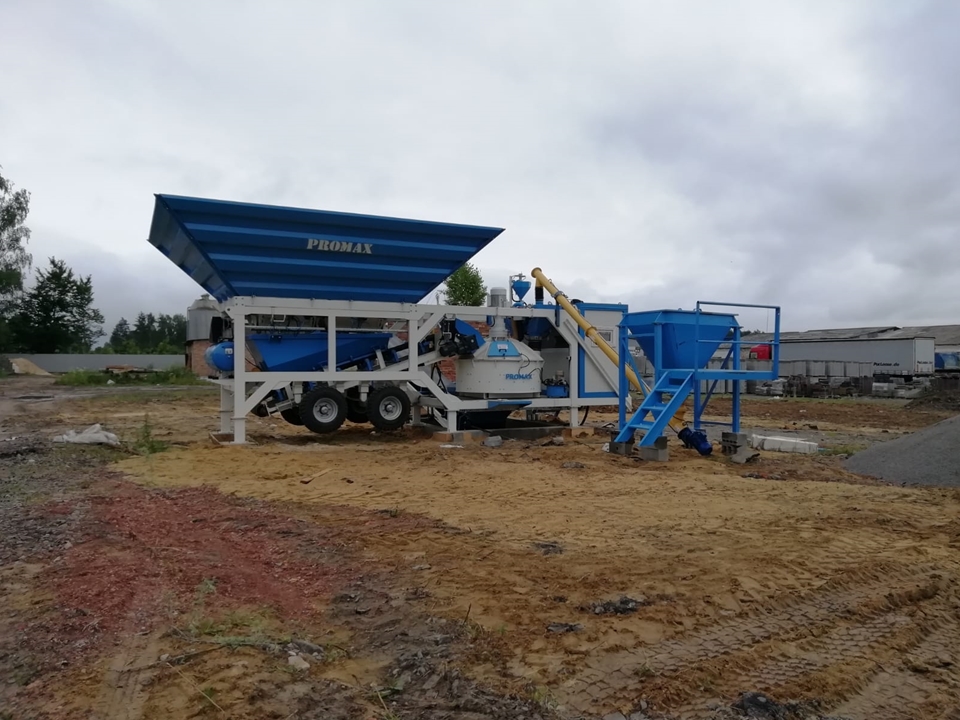

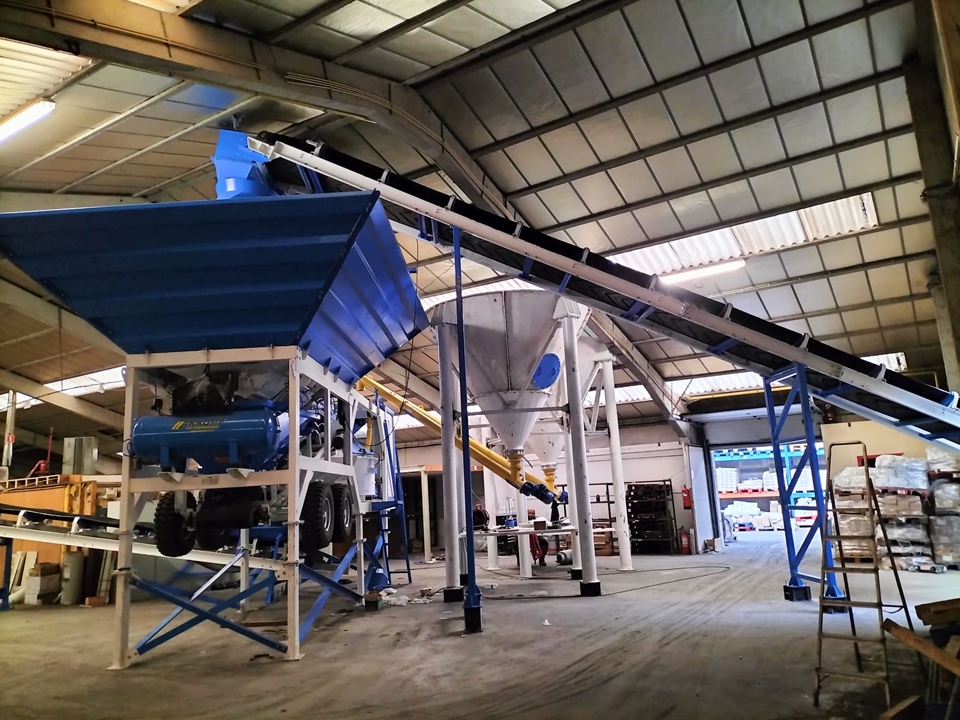

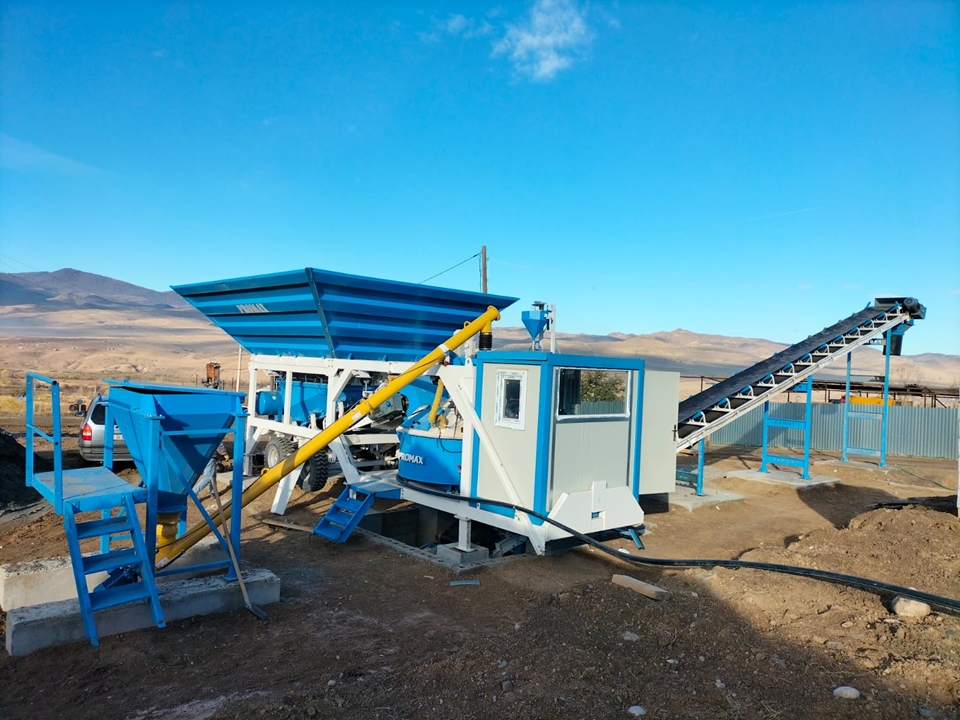

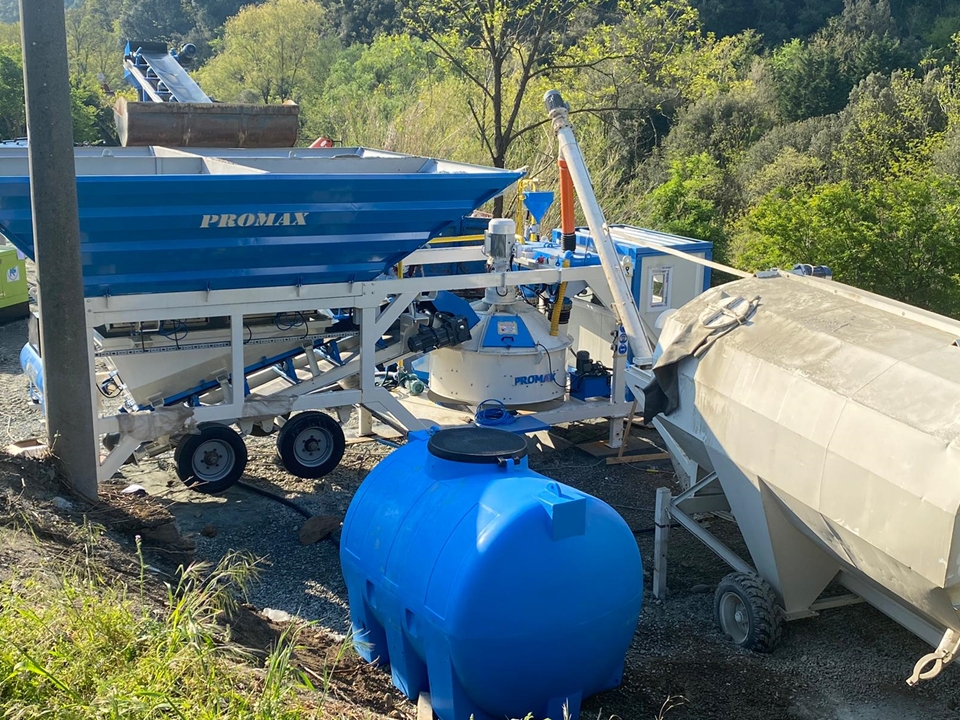

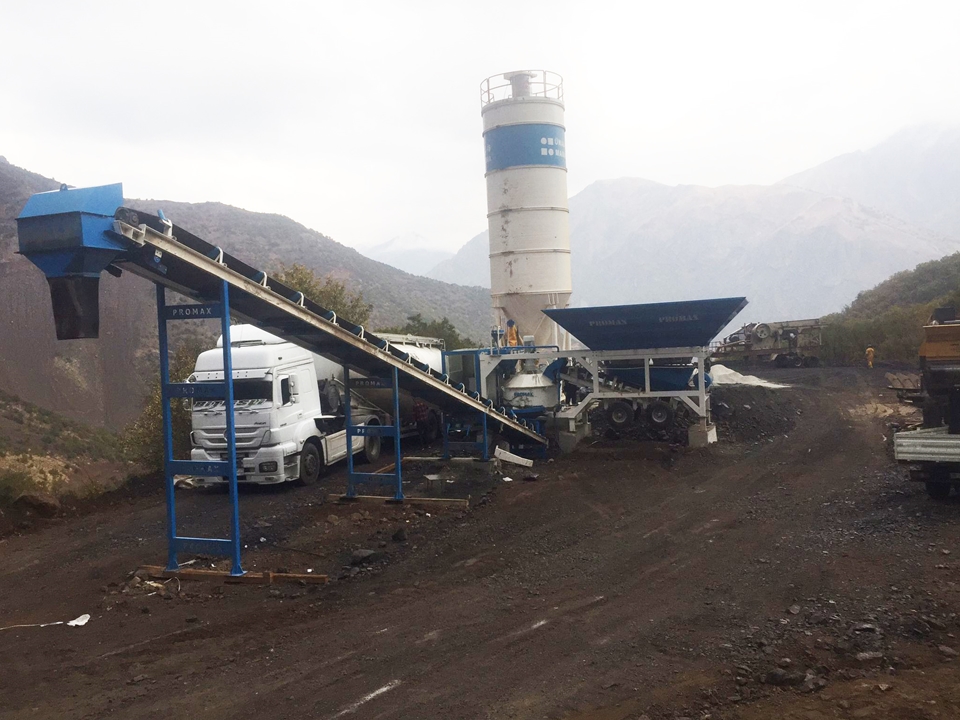

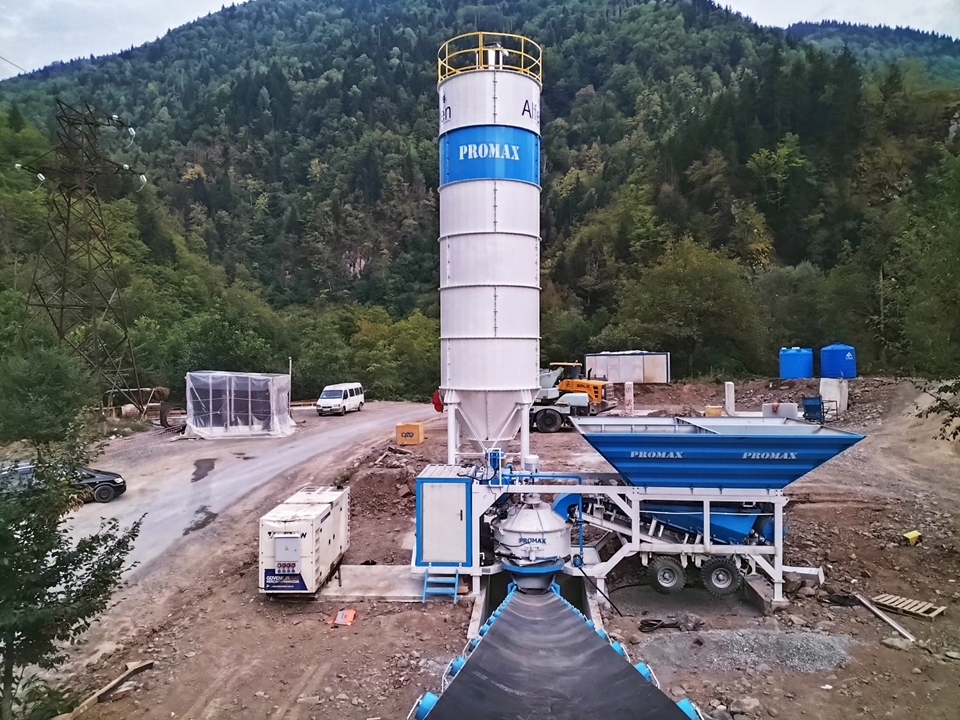

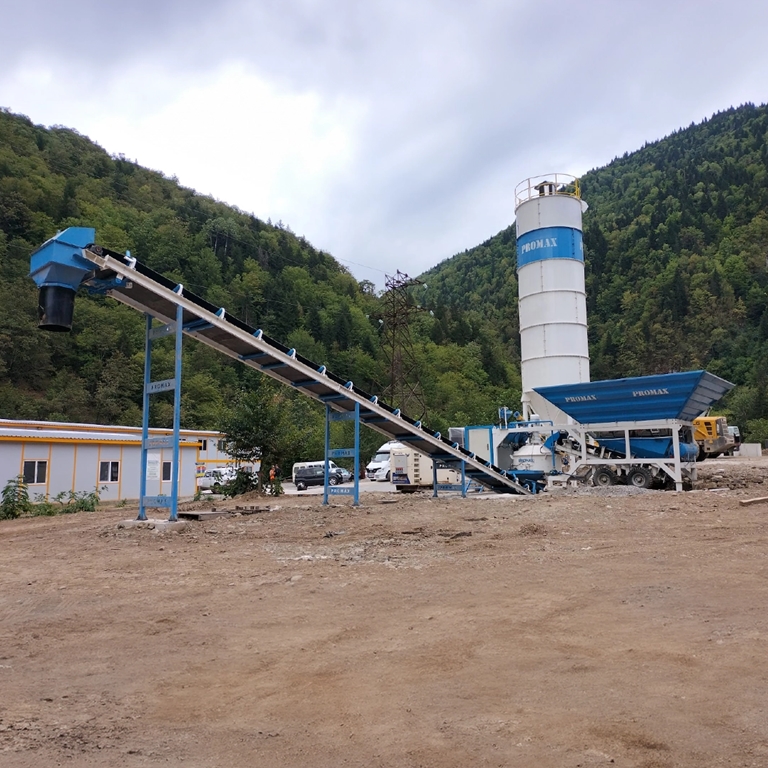

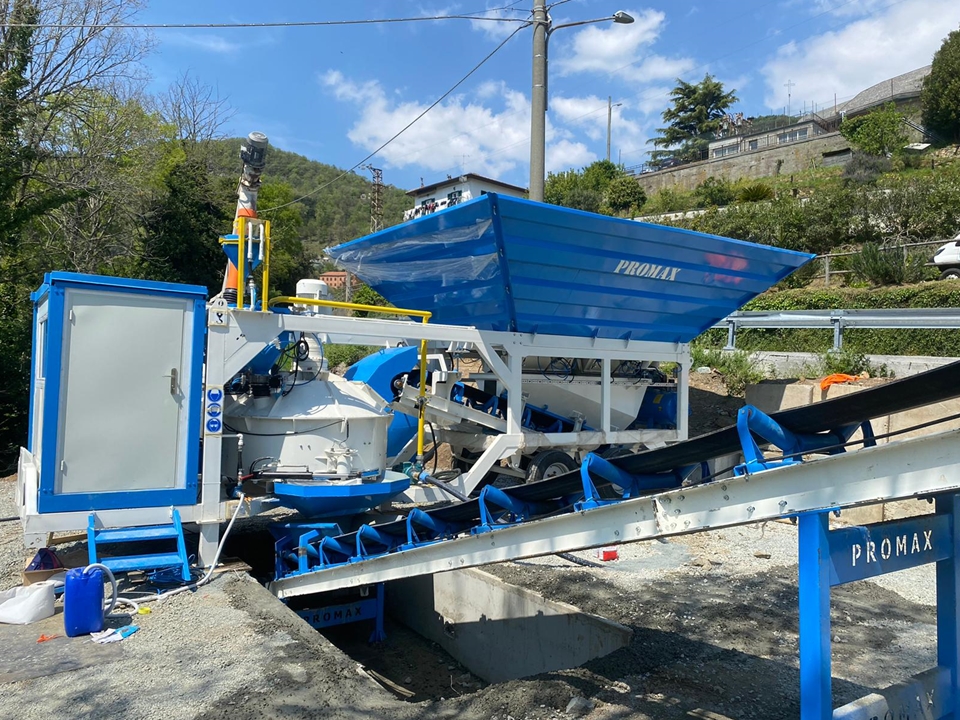

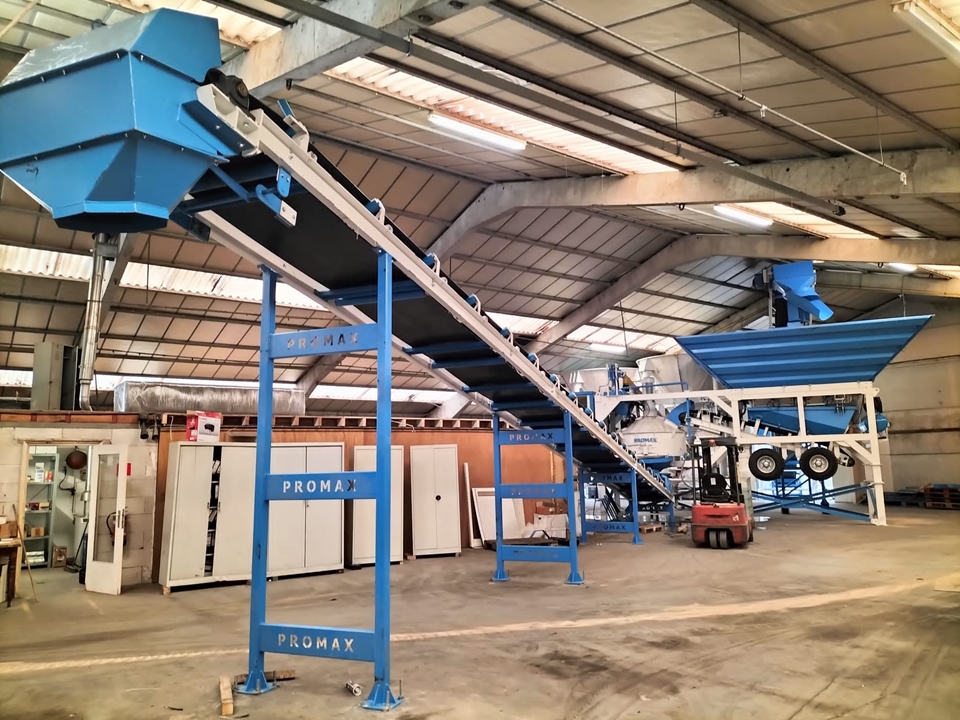

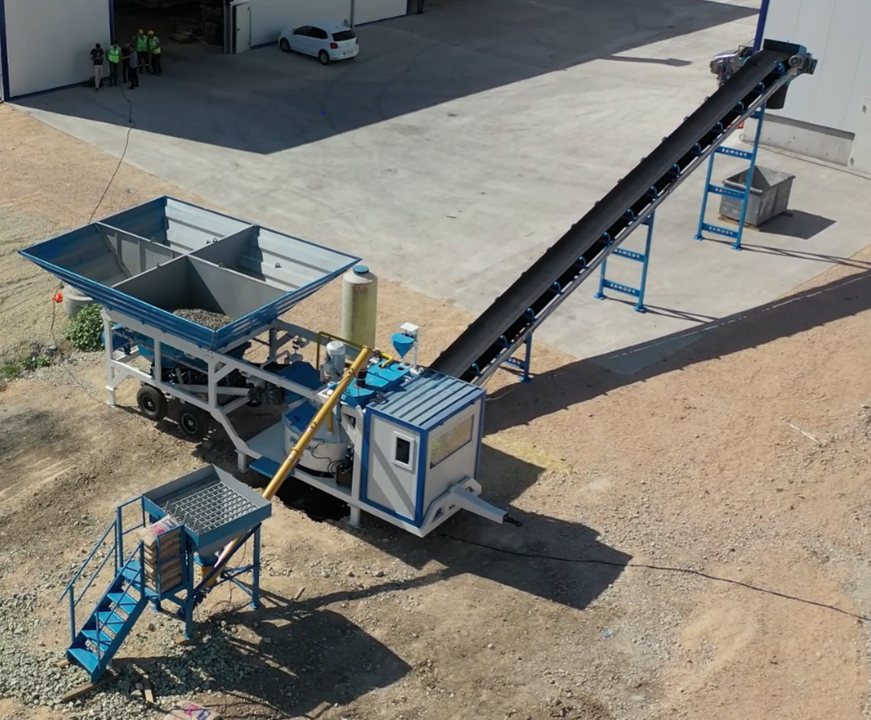

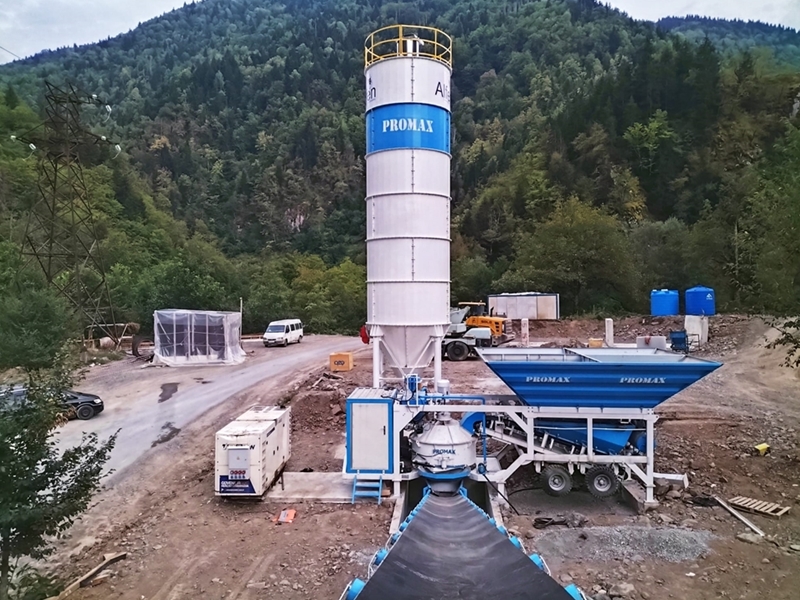

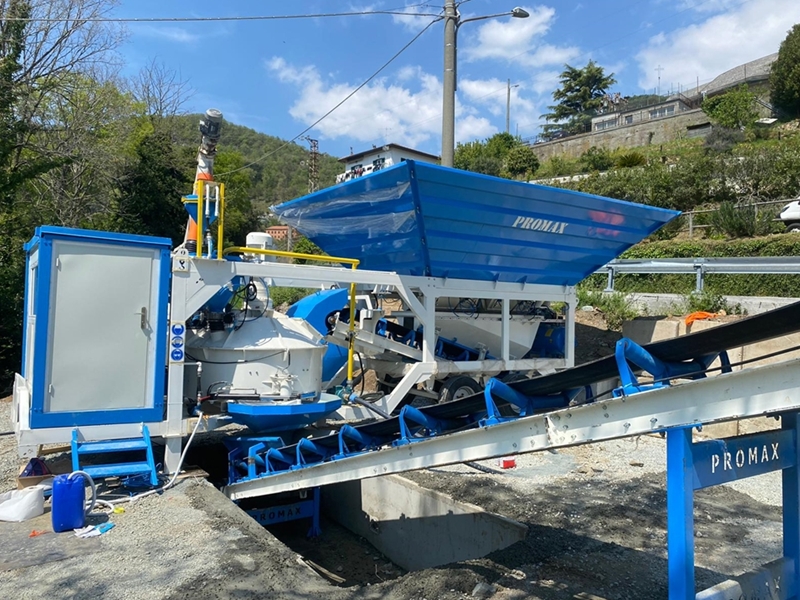

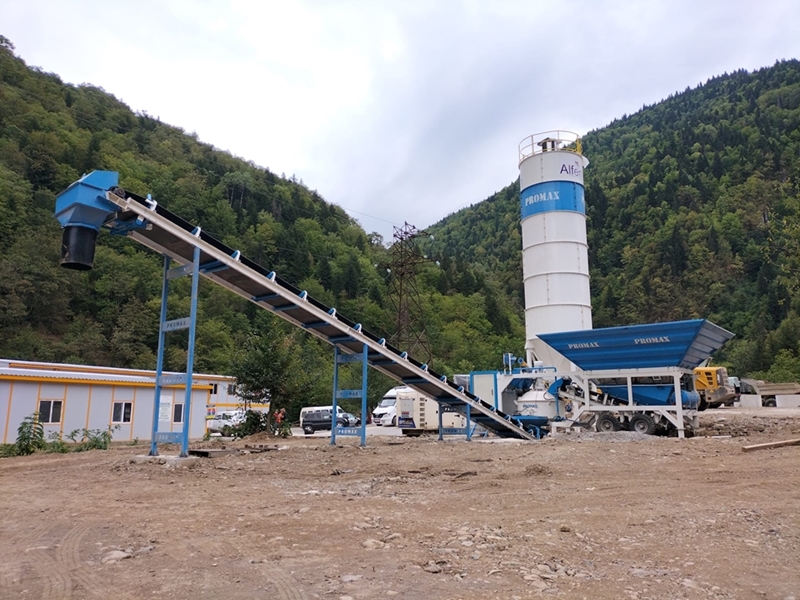

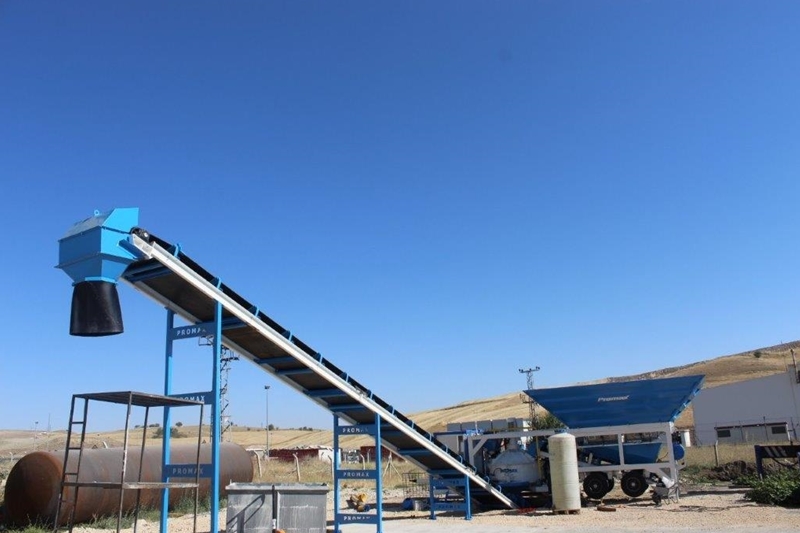

35m³/h Mobile Concrete Batching Plant
The Promax M35 PLNT Mobile Concrete Batching Plant offers excellent solutions for temporary needs with its easy transport and quick installation features. Trusted by leading contractors worldwide for short-term construction projects, this compactly designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
General Information
The Promax M35 PLNT Mobile Concrete Batching Plant offers excellent solutions for temporary needs with its easy transport and quick installation features. Trusted by leading contractors worldwide for short-term construction projects, this compactly designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
Advantages:
- Easy Transport: The mobile design allows for quick and easy transport from one location to another.
- Minimal Infrastructure Investment: Requires minimal infrastructure for installation.
- Quick Installation: Can be set up and ready for production in a short period.
Developed through extensive R&D, the Promax M35 PLNT is a high engineering product that combines the power and capacity of stationary plants with the advantages of mobility, changing the habits of low-capacity production in mobile concrete plants.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 35 m³/h |
| Mixer Specifications | |

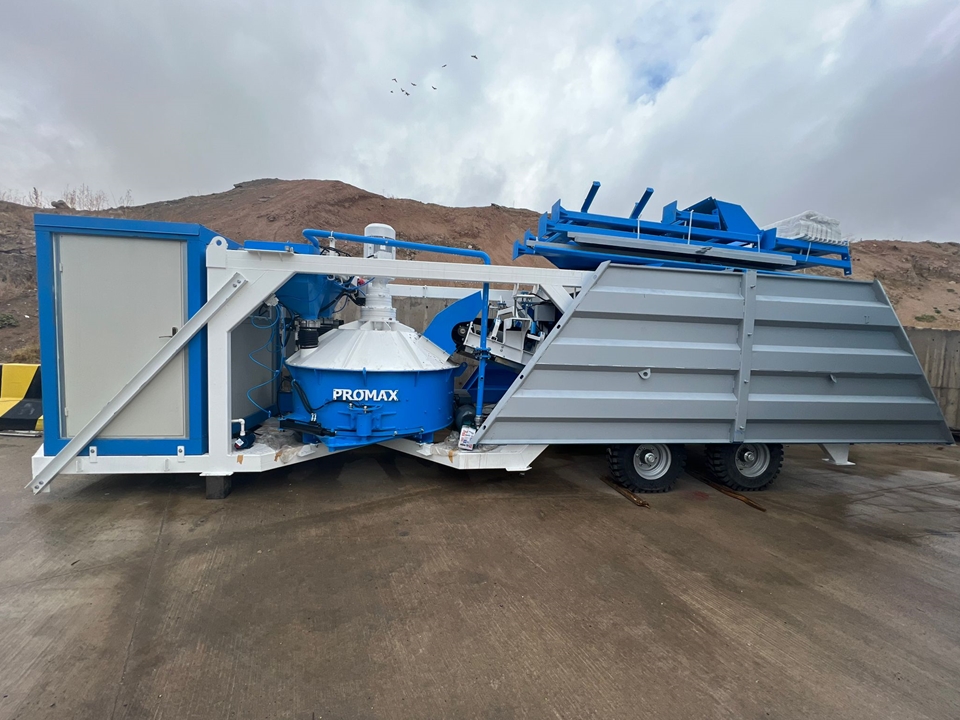

| Mixer Type | Planetary Mixer |
| Dry Capacity | 750 lt |
| Mixer Capacity | 500 lt |
| Engine Power | 22 kW |

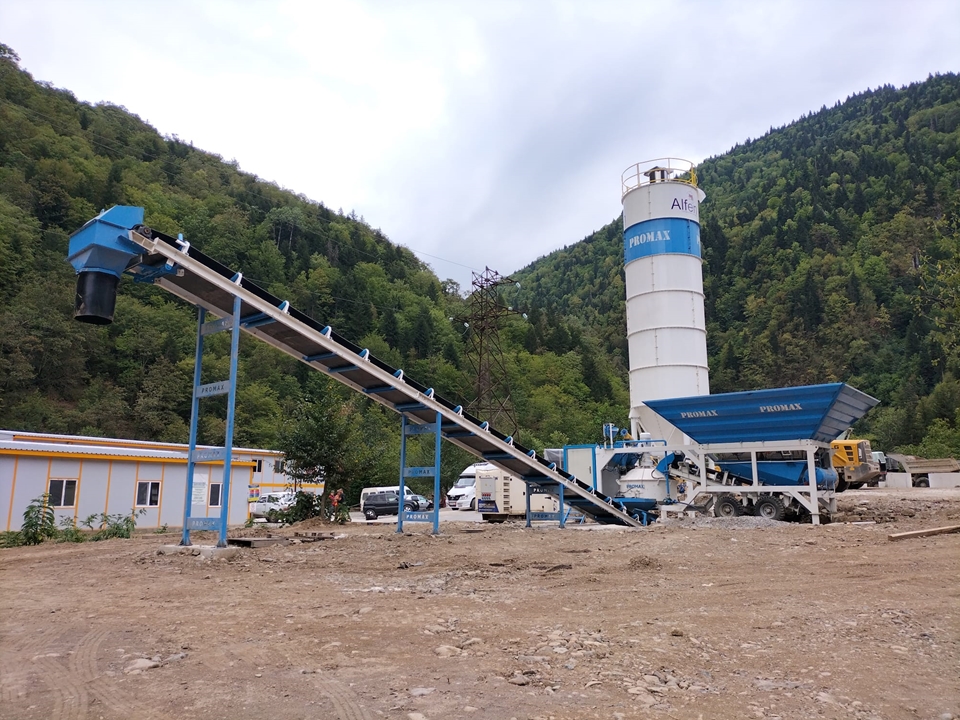

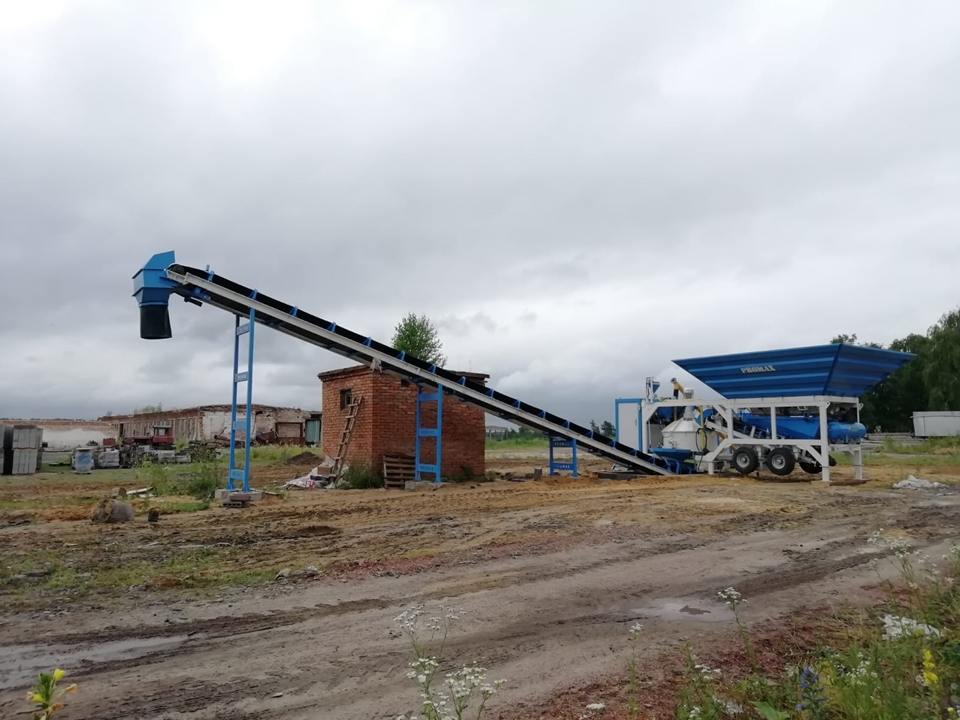

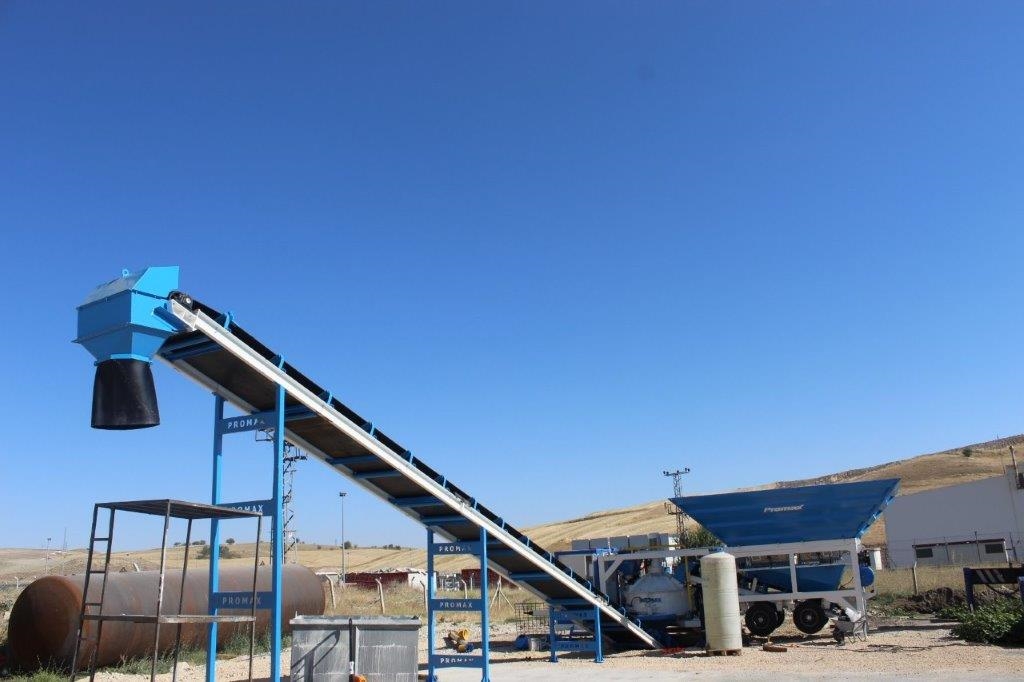

| Mixer Conveyor Belt | |
| Width | 800 mm |
| Length | 18000 mm |
| Engine Power | 15 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 4.5 m³ = 18 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 514 lt / min |
| Tank Volume | 300 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 3 kW |
| Easy Cement Loading System | |
| Capacity | 1500 kg |
| Silo Quantity | 1 - 2 Piece |
| Cement Silos and Equipment | |
| Capacity | 50 - 70 - 100 Tons |
| Screw Conveyor Diameter | 168 mm |
| Screw Conveyor Length | 5000 mm |
| Screw Engine Power | 4 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 1300 kg |
| Cement Weighbridge | 350 kg |
| Water Weighbridge | 200 lt |
| Additives Weighbridge | 20 kg |
