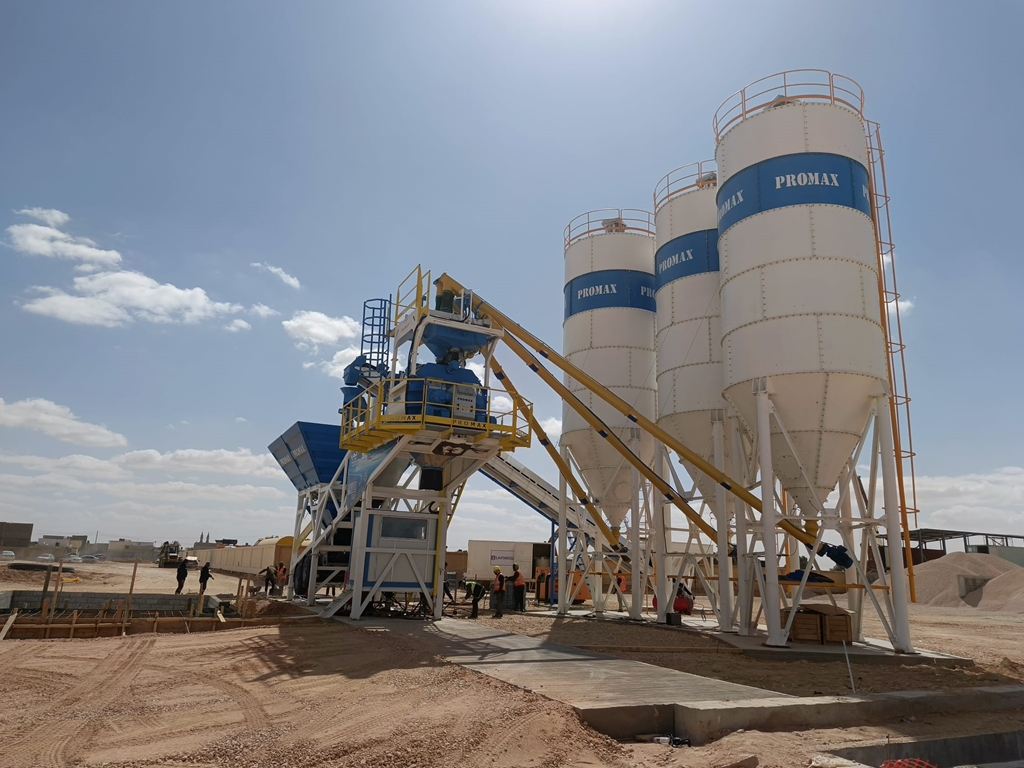

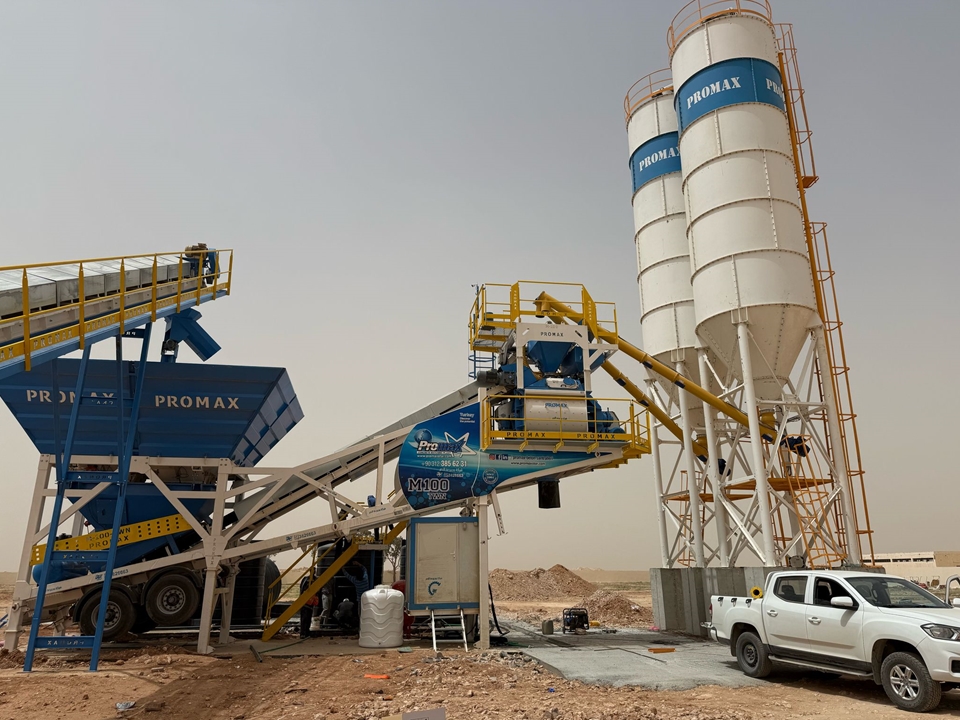

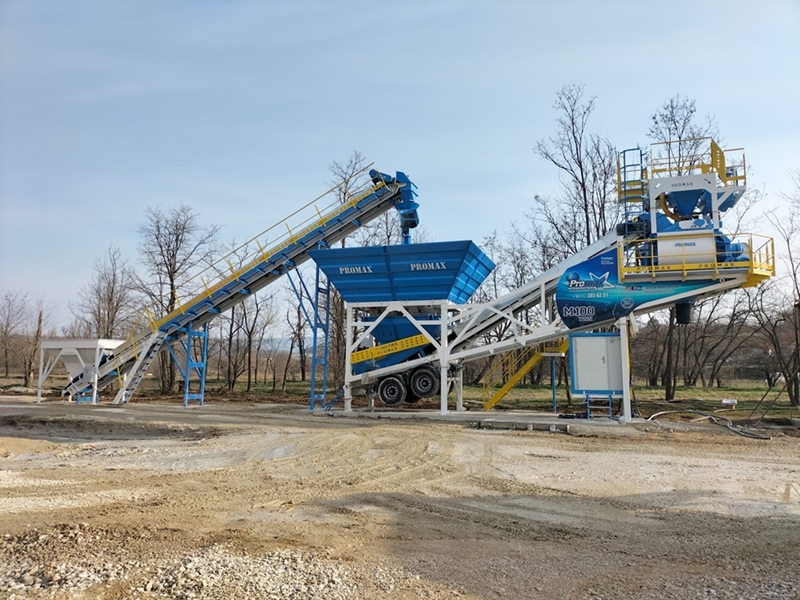

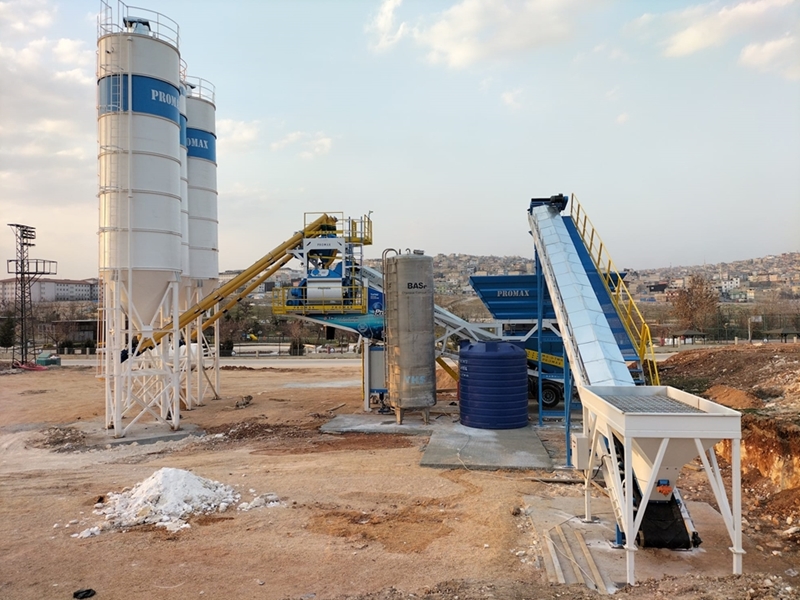

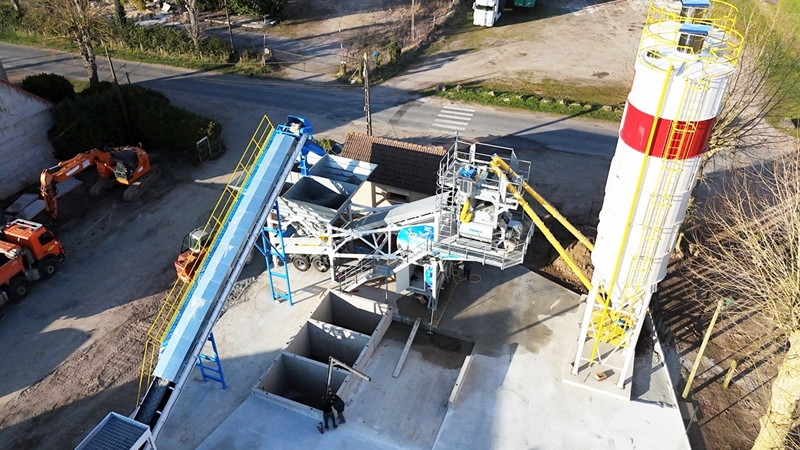

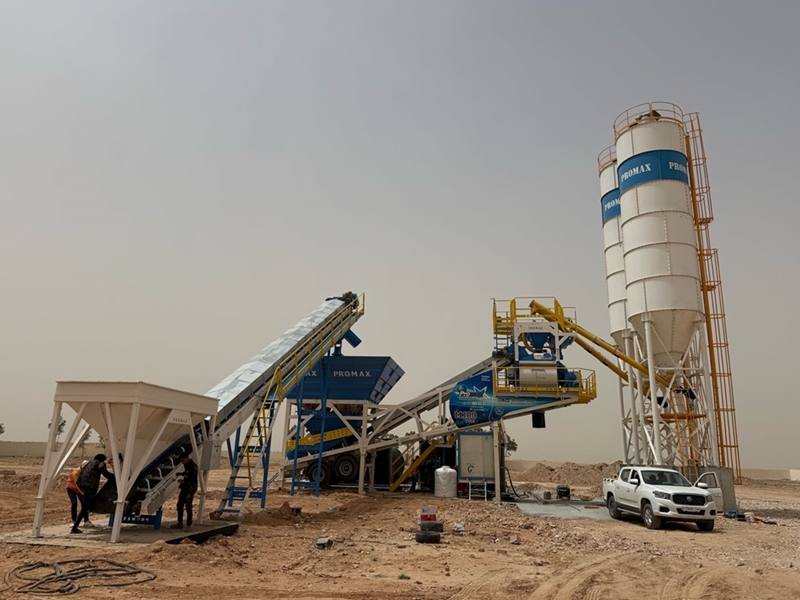

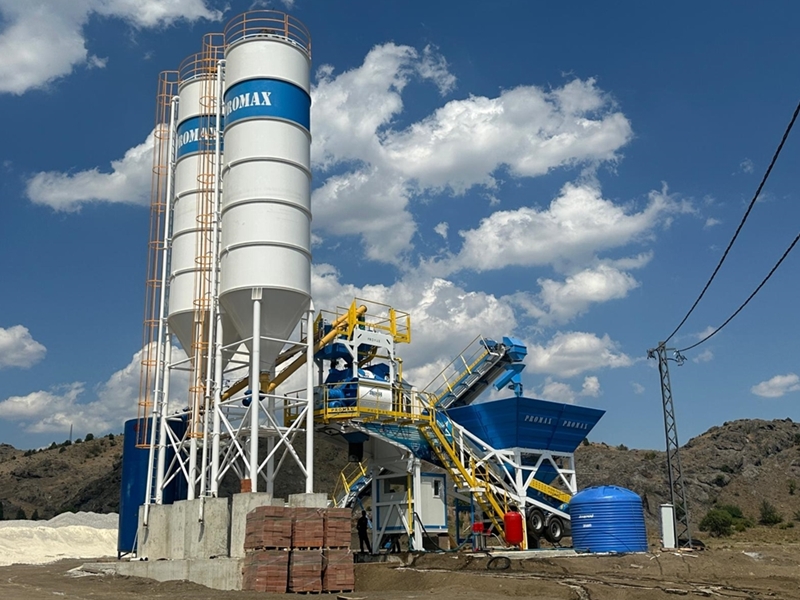

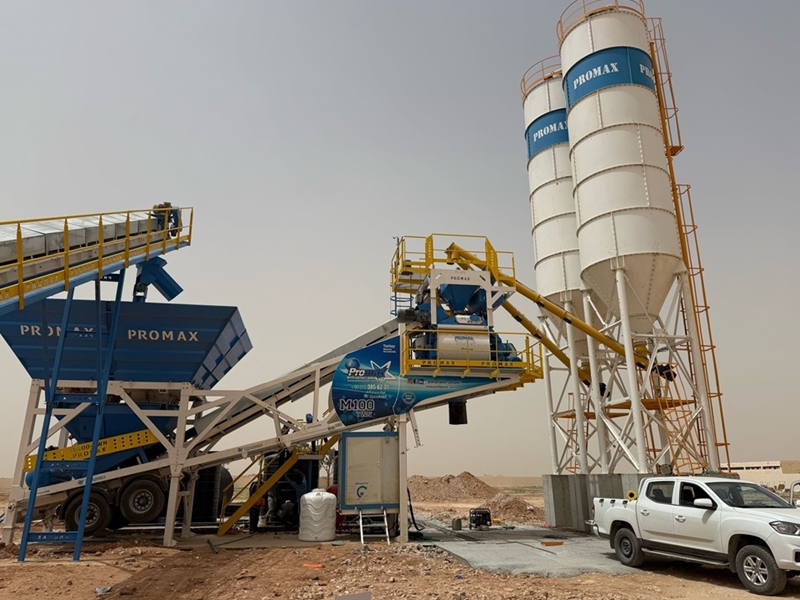

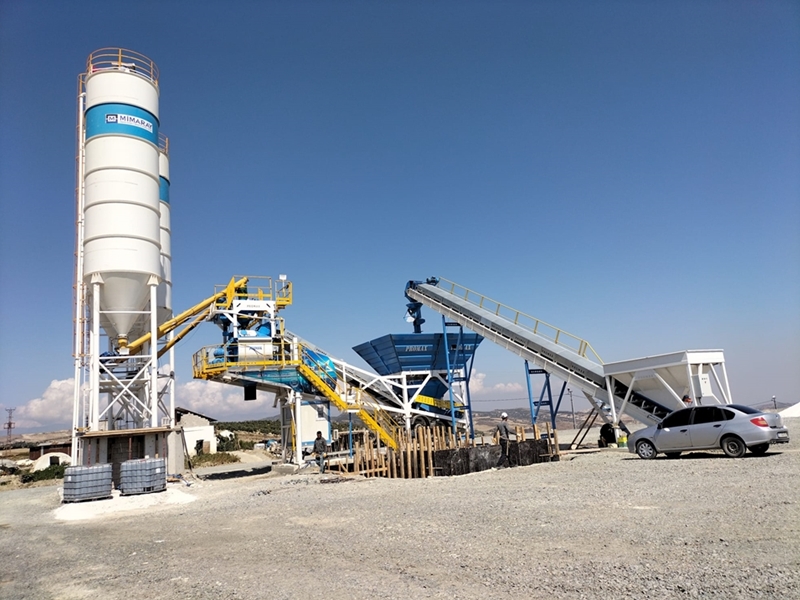

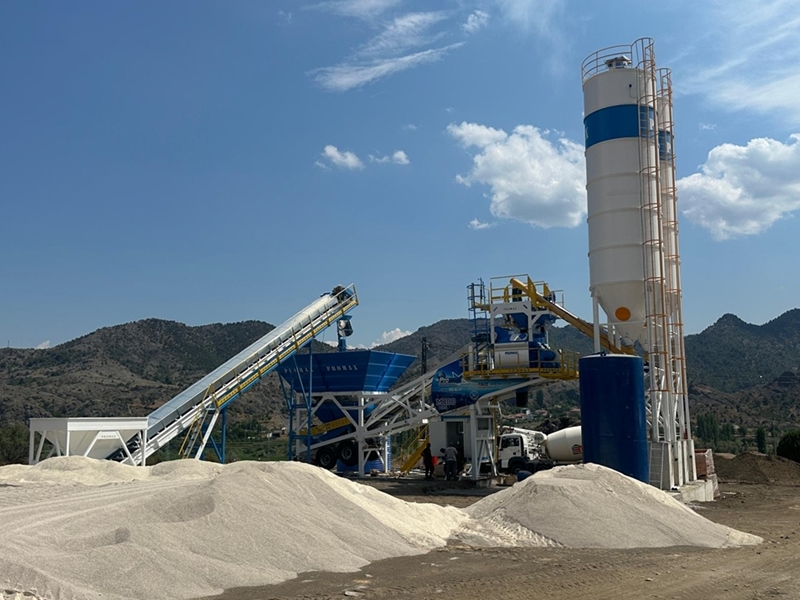

100m³/h Mobile Concrete Batching Plant
100m³/h Mobile Concrete Batching Plant

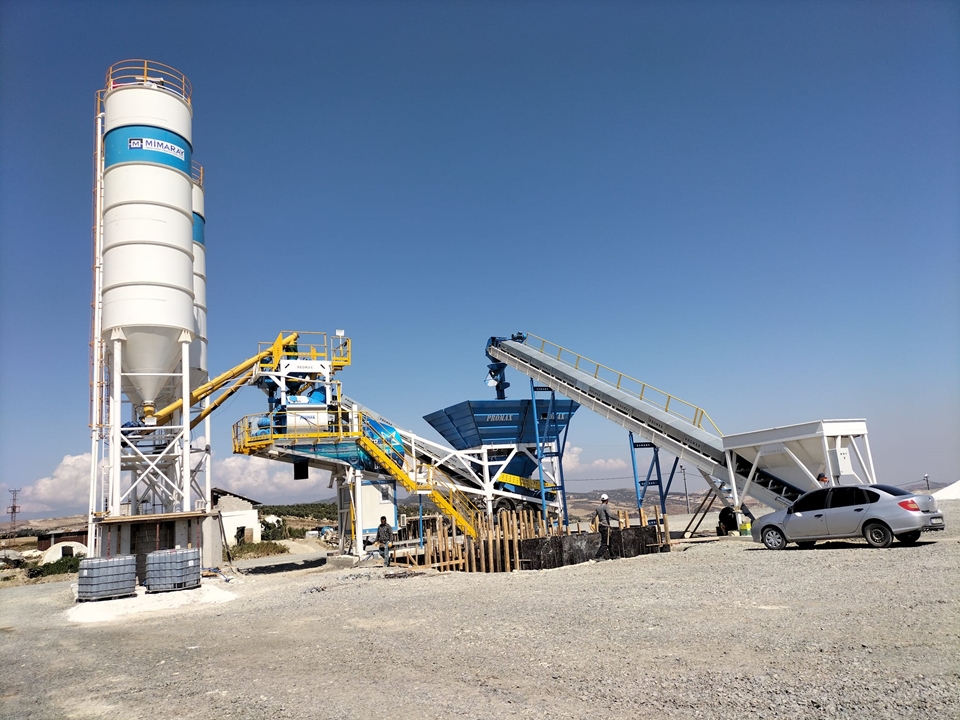

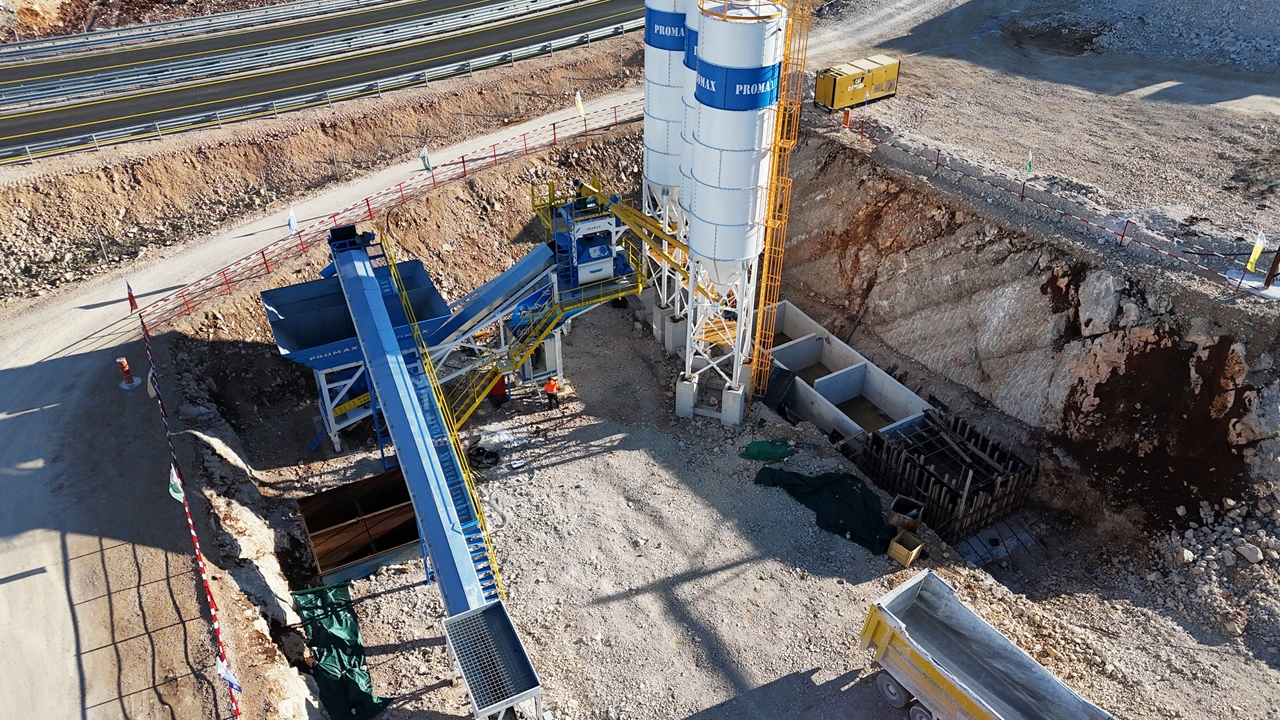

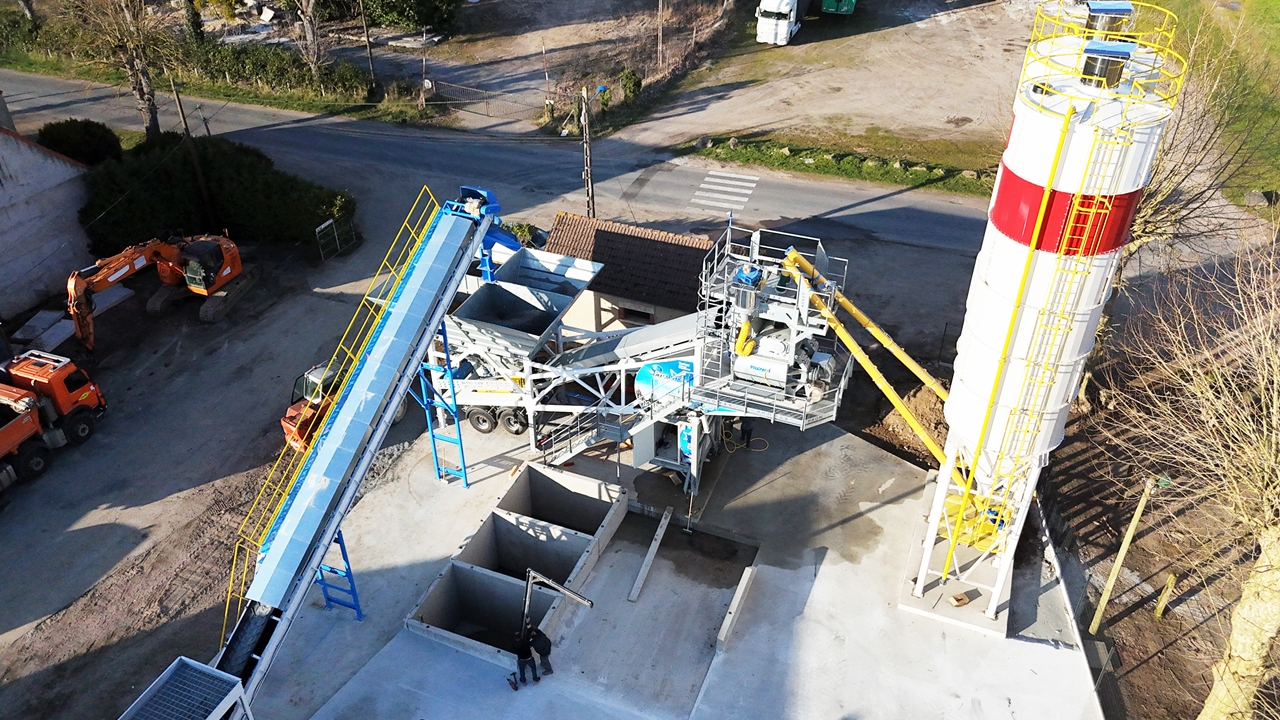

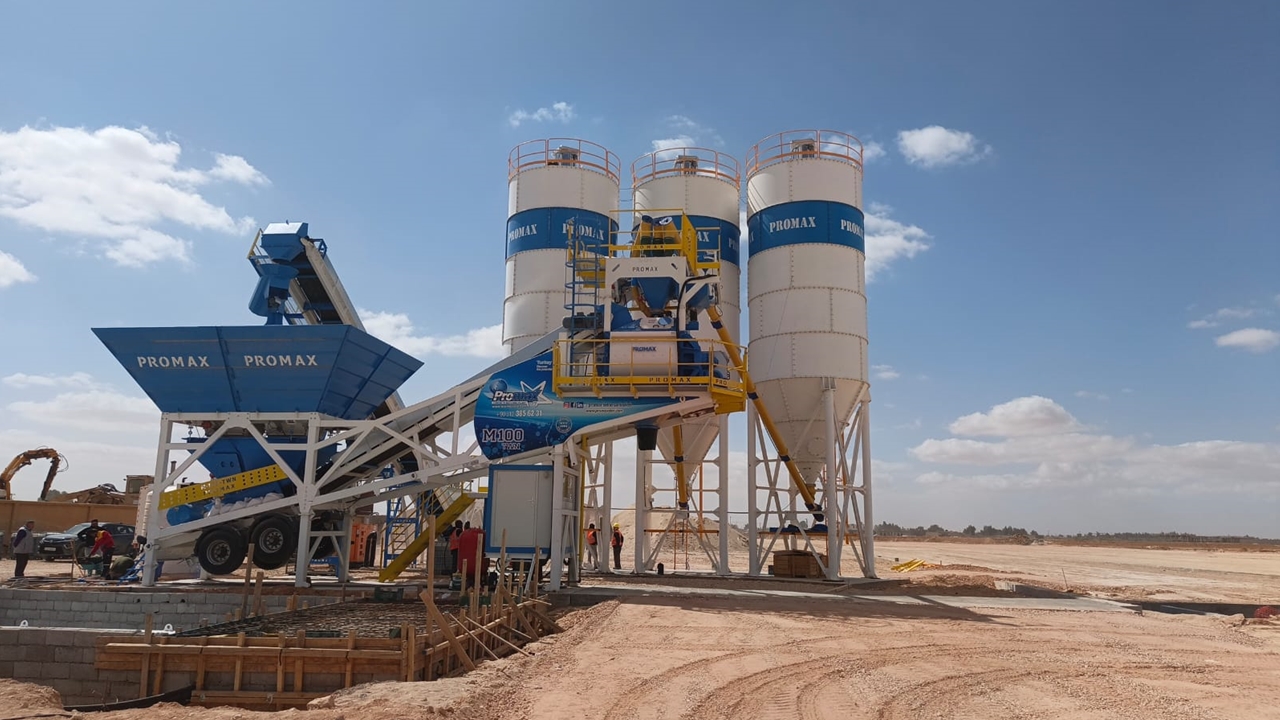

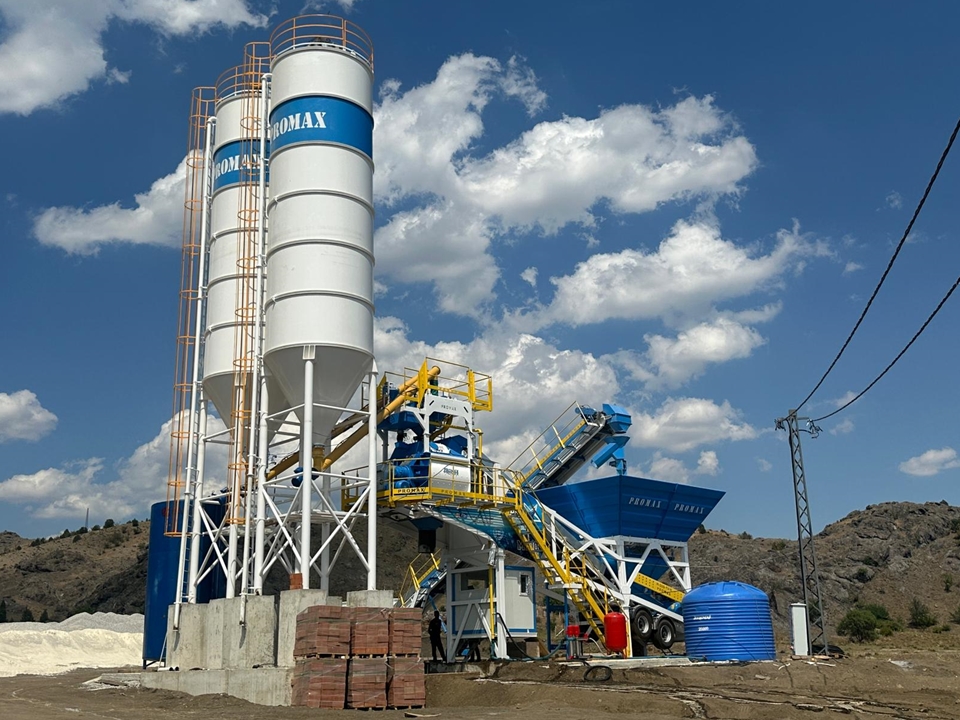

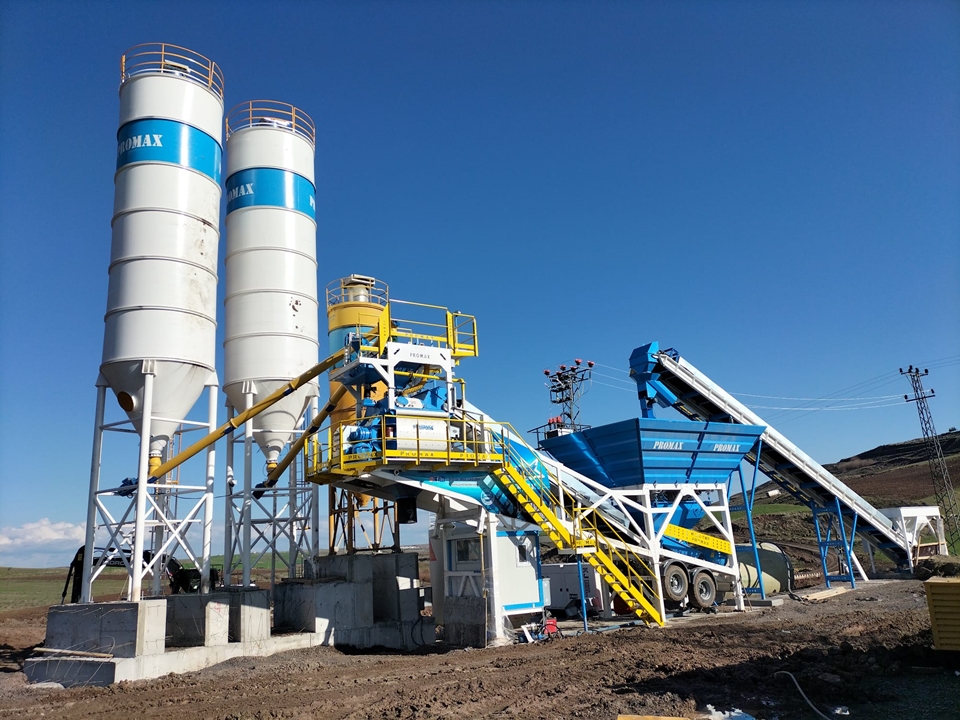

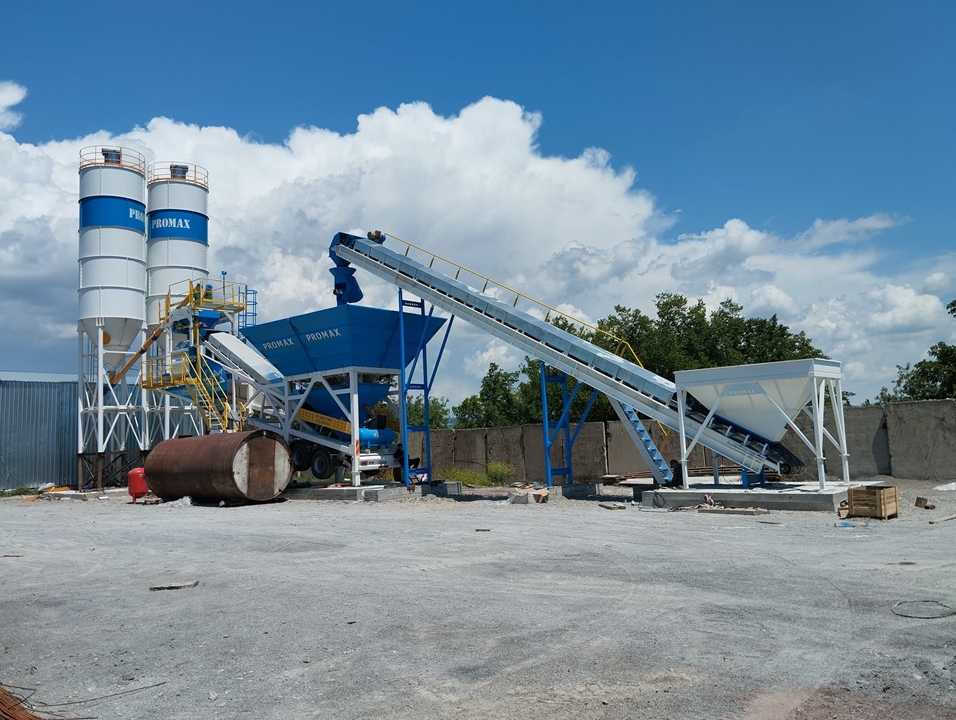

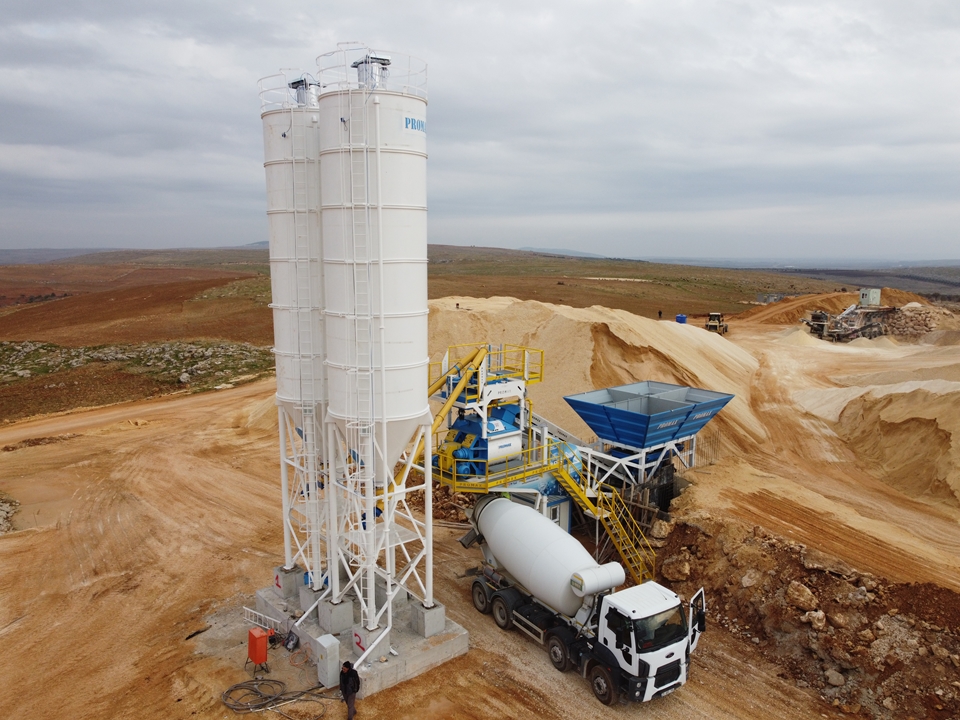

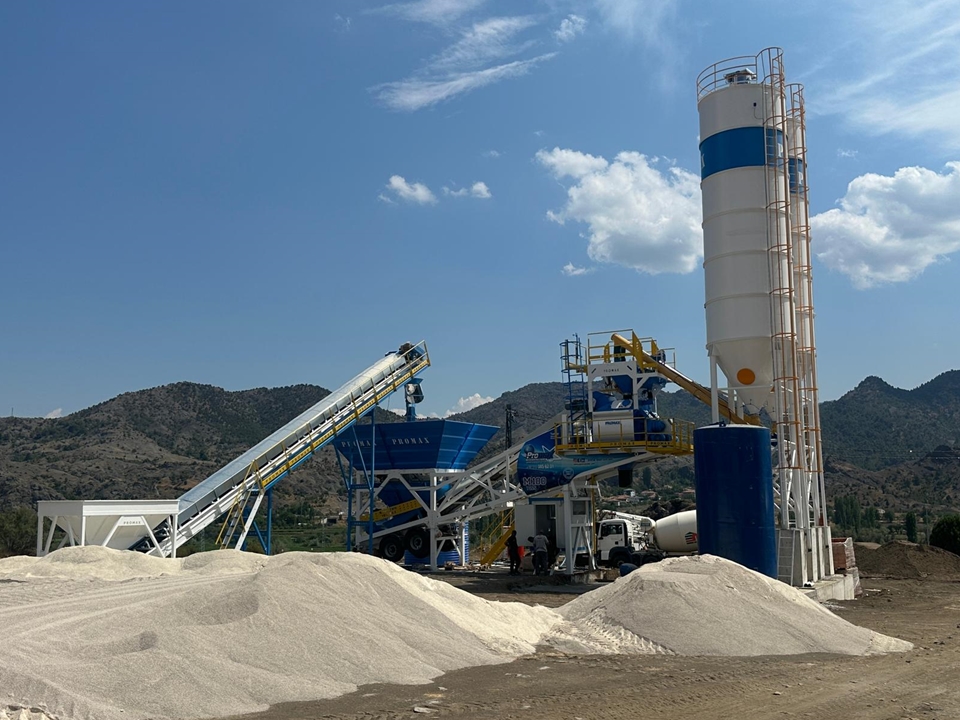

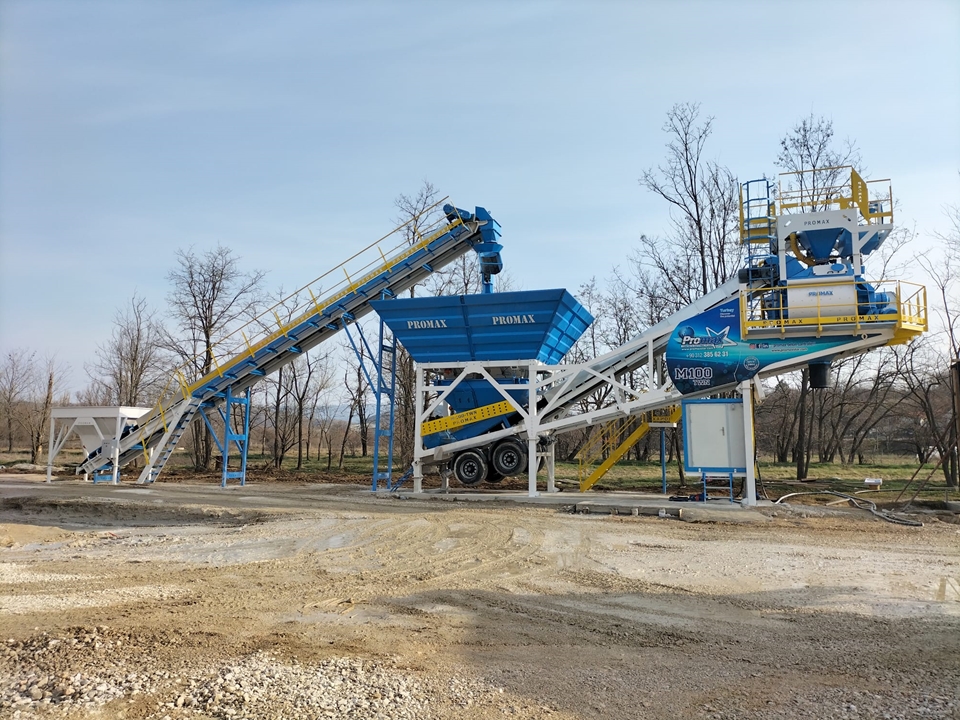

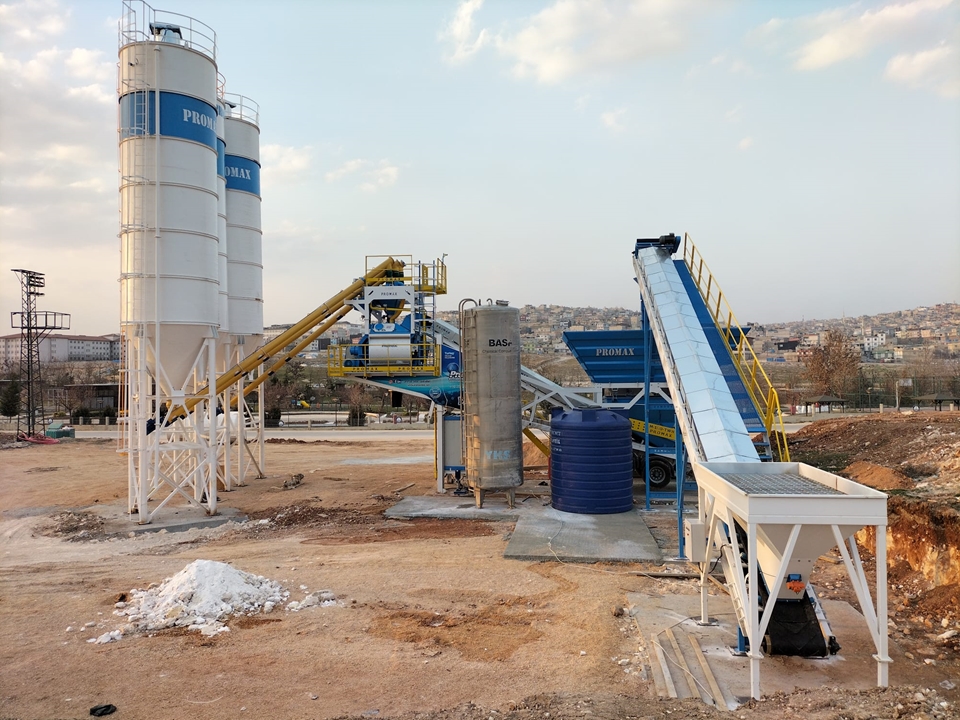

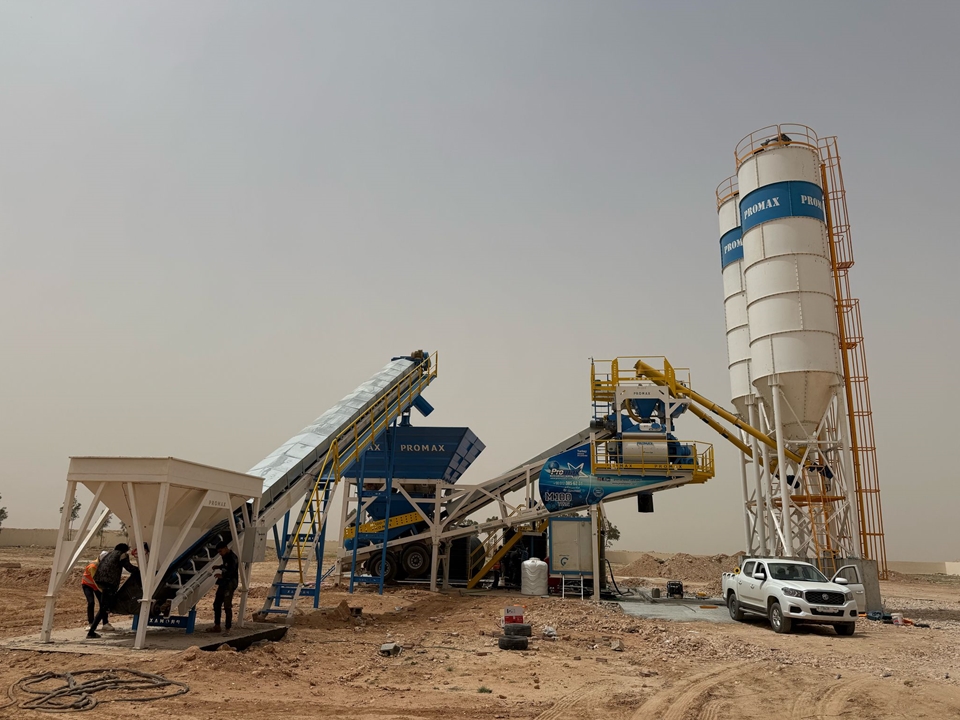

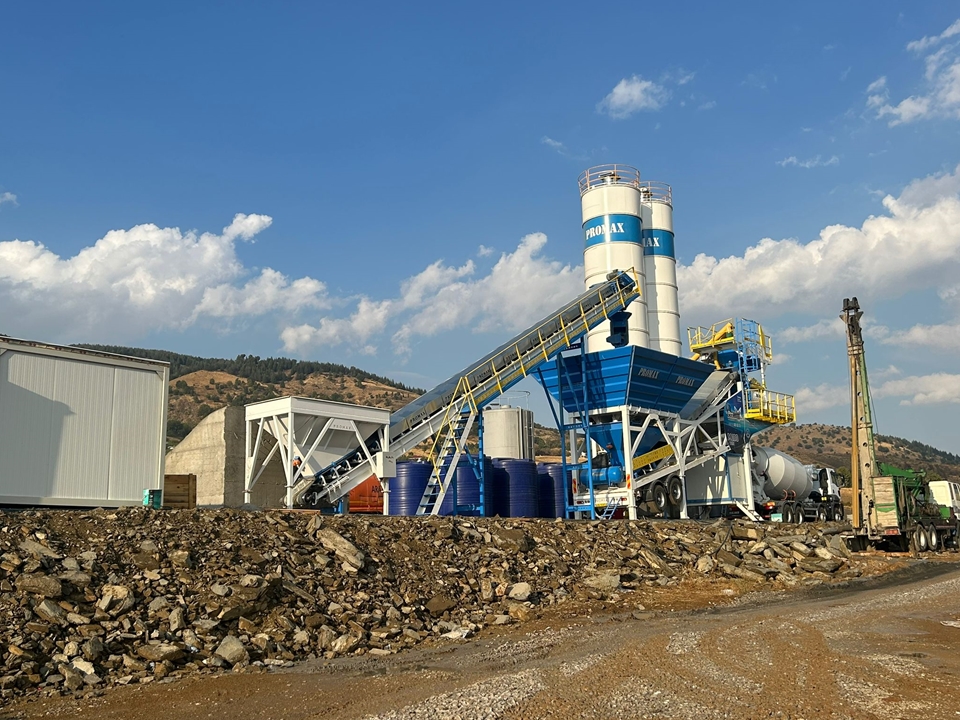

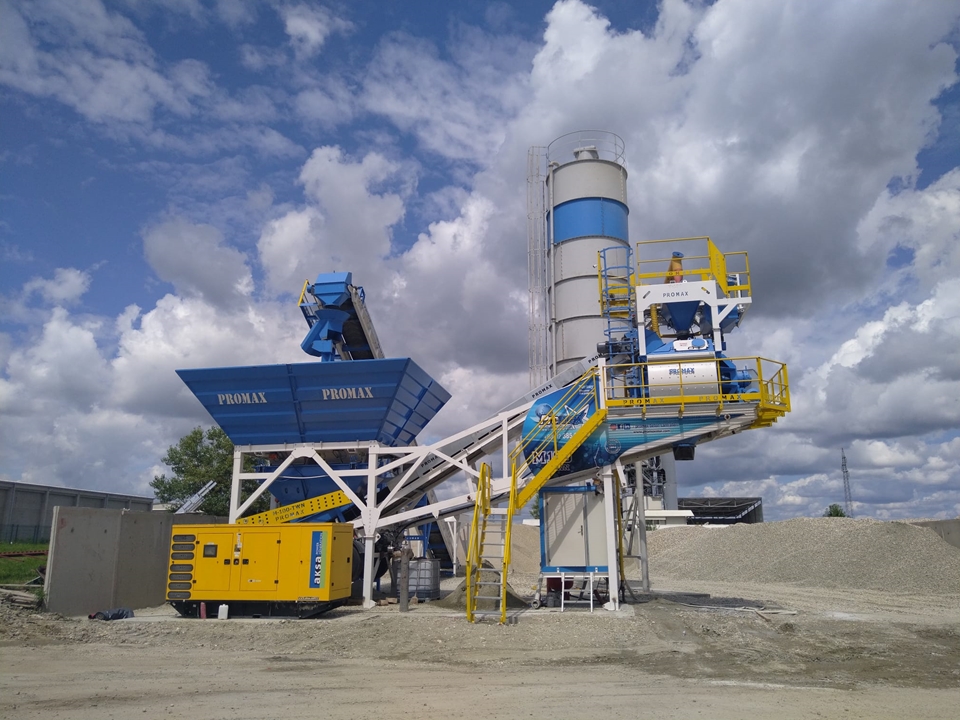

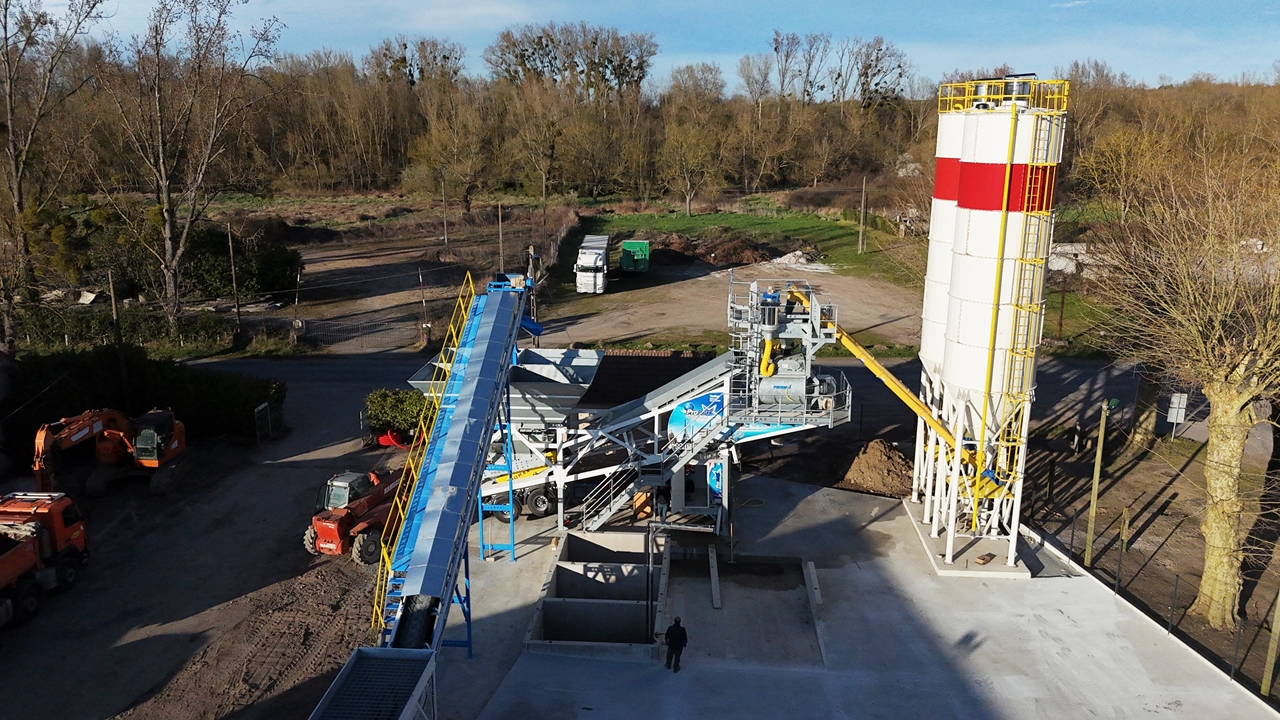

The Promax M100 TWN Mobile Concrete Batching Plant is an excellent solution for temporary needs with its high-efficiency rapid production capacity, easy transport, and quick installation features. Trusted by leading contractors worldwide for short-term construction projects, this mobile-designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
General Information
The Promax M100 TWN Mobile Concrete Batching Plant is an excellent solution for temporary needs with its high-efficiency rapid production capacity, easy transport, and quick installation features. Trusted by leading contractors worldwide for short-term construction projects, this mobile-designed concrete plant requires minimal infrastructure investment and allows for a quick start to production.
Advantages:
- High-Efficiency Rapid Production: Capable of producing 100 m³ of compacted concrete per hour.
- Easy Transport: The mobile design allows for quick and easy transport from one location to another.
- Minimal Infrastructure Investment: Requires minimal infrastructure for installation.
- Quick Installation: Can be set up and ready for production in a short period.
Developed through extensive R&D, the Promax M100 TWN is a high engineering product that combines the power and capacity of stationary plants with the advantages of mobility, changing the habits of low-capacity production in mobile concrete plants.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 100 m³/h |
| Mixer Specifications | |
| Mixer Type | Twin Shaft |
| Dry Capacity | 3000 lt |
| Mixer Capacity | 2000 lt |
| Engine Power | 2 x 37 kW |
| Mixer Conveyor Belt | |
| Width | 1000 mm |
| Length | 11500 mm |
| Engine Power | 15 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 11.25 m³ = 45 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 830 lt / min |
| Tank Volume | 500 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 5.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 273 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 11 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 5000 kg |
| Cement Weighbridge | 950 kg |
| Water Weighbridge | 600 lt |
| Additives Weighbridge | 50 kg |
