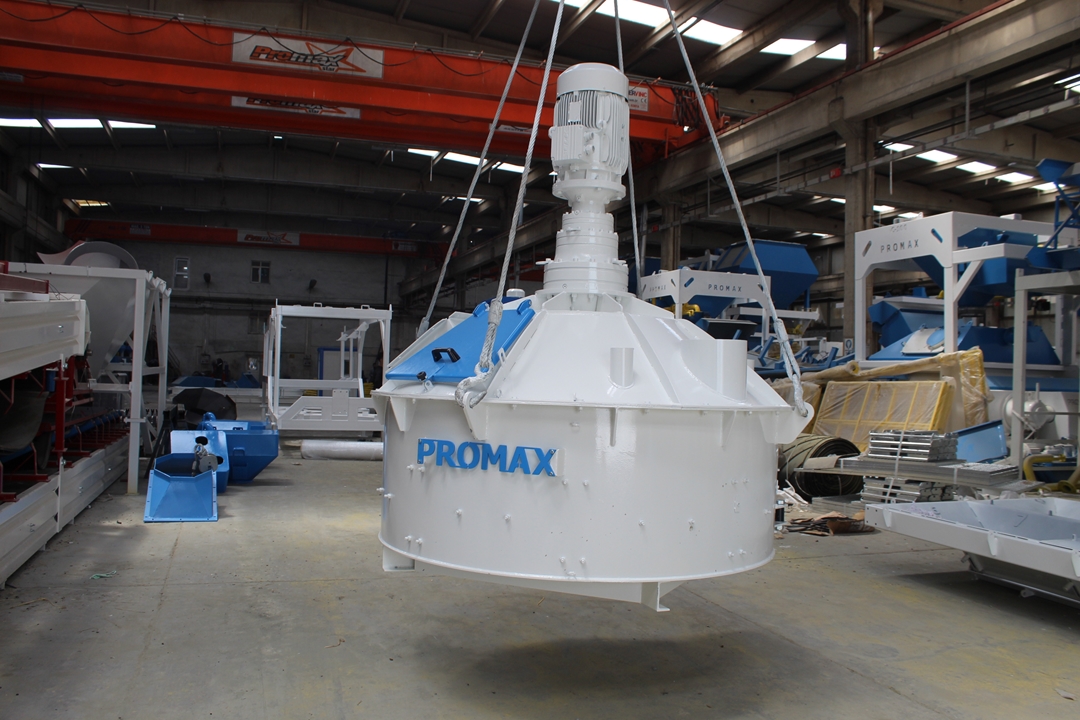

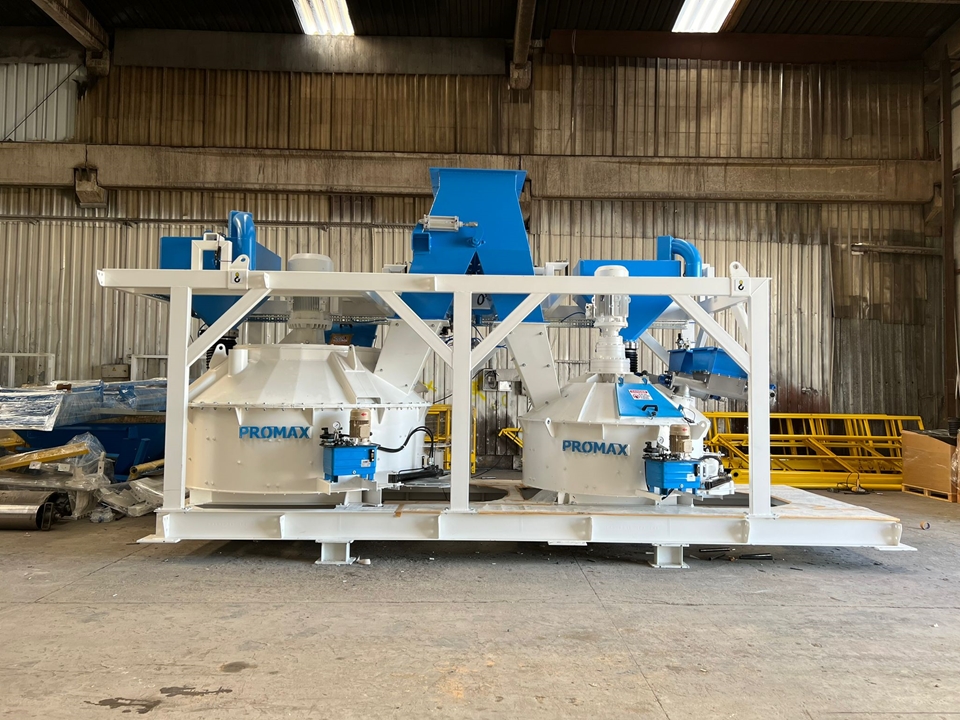

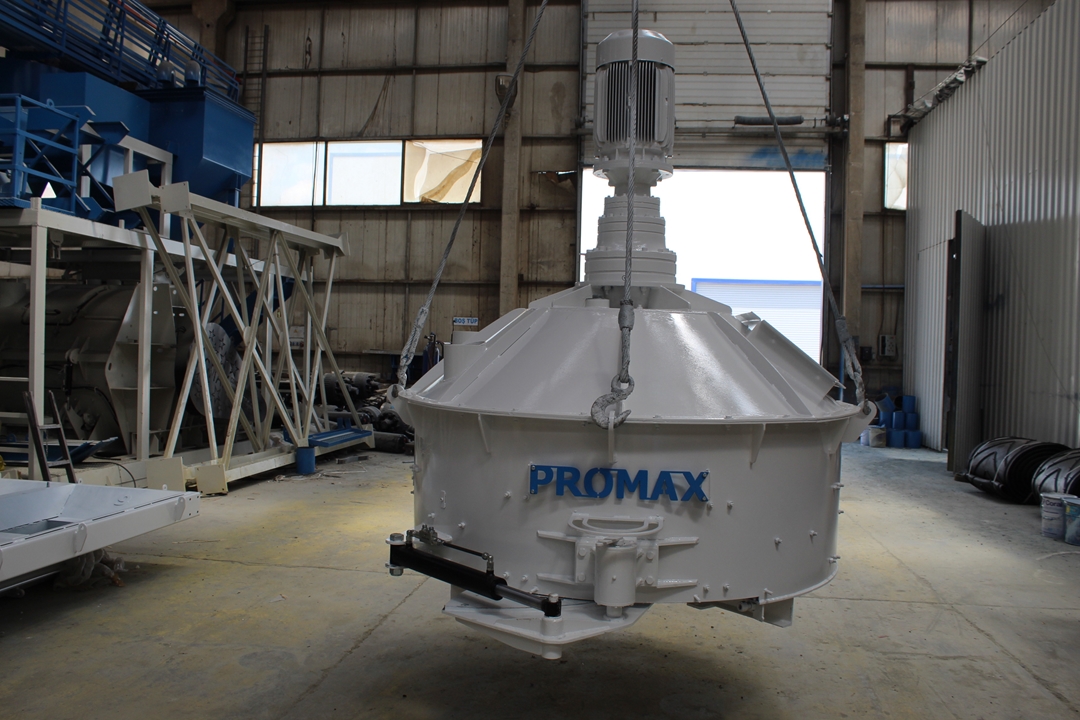

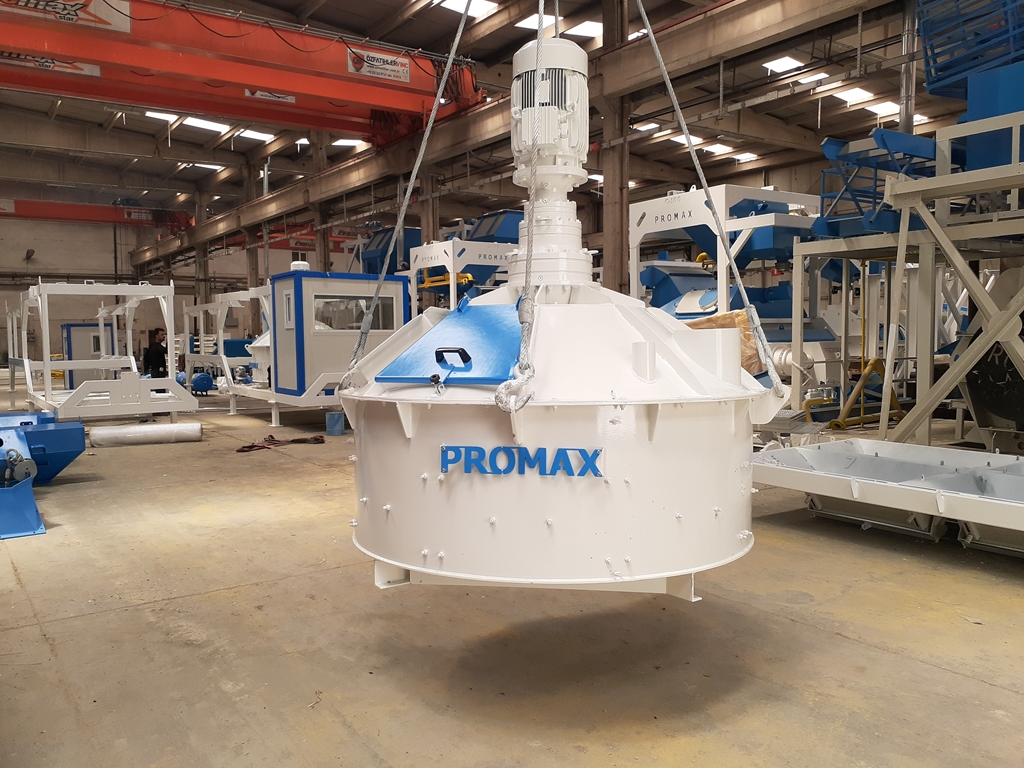

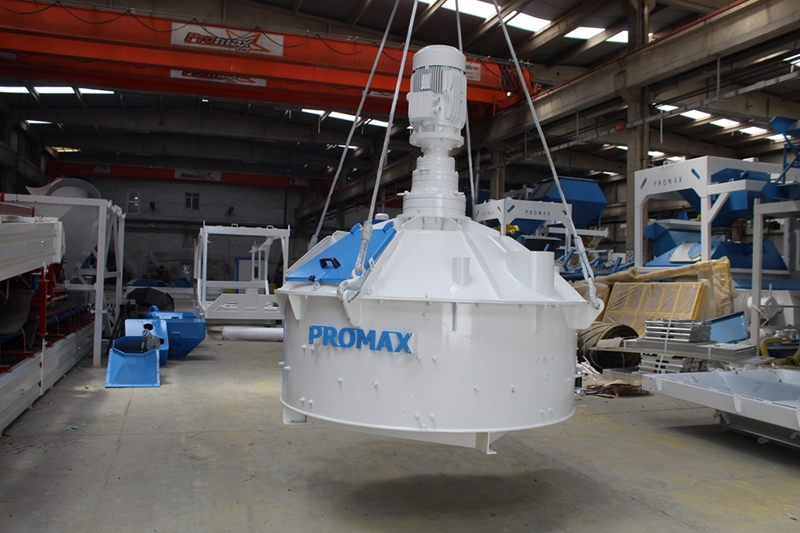

Planetary Concrete Mixer
Planetary Mixers are designed to produce low-slump concrete and achieve a homogeneous mix in a short time. With a maintenance-free bearing system, they offer long-lasting and reliable performance.
General Information
Planetary Mixers are designed to produce low-slump concrete and achieve a homogeneous mix in a short time. With a maintenance-free bearing system, they offer long-lasting and reliable performance.
- Low-Slump Concrete Production: Ideal for producing low-slump concrete.
- Homogeneous Mix in Short Time: Achieves a quick and homogeneous mix.
- Maintenance-Free Bearing System: Requires minimal maintenance.
Technical Information:
- Loading Capacity: 750 liters
- Fresh Concrete Capacity: 500 liters
- Compacted Concrete Capacity: 500 liters
- Motor Power: 1 × 18.5 kW
- Reducer: DİŞSAN

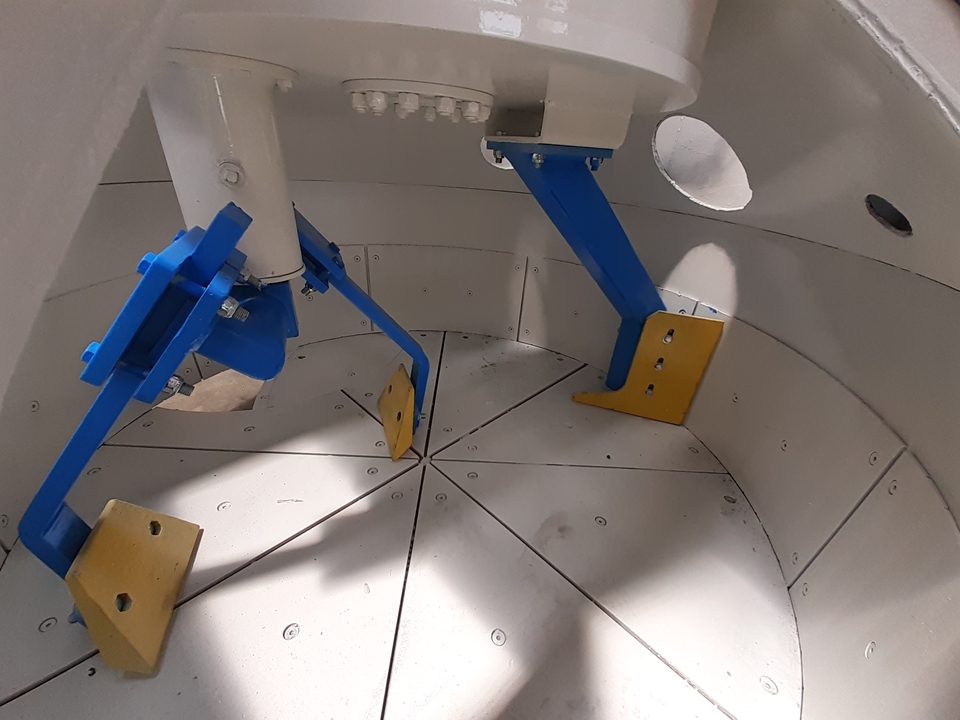

- Number of Mixing Arms: 2
- Number of Scraper Arms: 1
- Mixer Side Liner: 8mm S355 JR
- Mixer Bottom Liner: 10mm S355 JR
- Mixing and Scraper Paddles: 25 mm Ni-Hard 4 Casting
- Water Distributor
- Hydraulic Discharge Gate

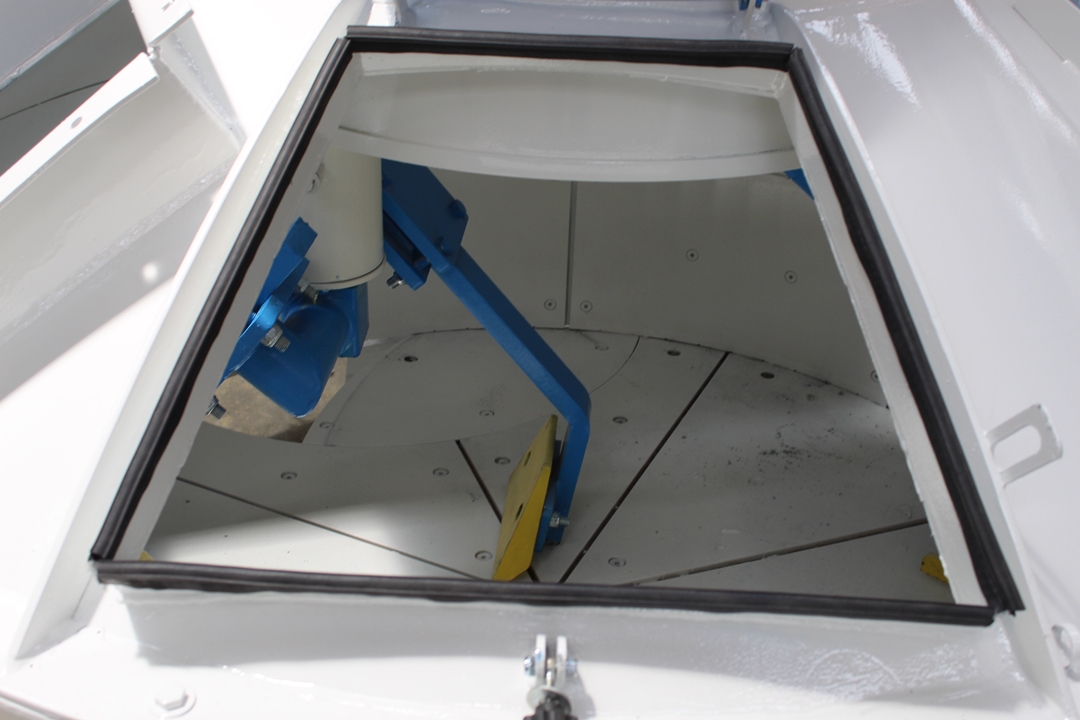

- Maintenance Cover Safety Switch
Promax Mixers meet your concrete production needs with superior quality and performance. Contact us for more information and to request a quote.
Technical Information
| Loading Capacity | 1500 lt |
| Fresh Concrete Capacity | 1250 lt |
| Compacted Concrete Capacity | 1000 lt |
| Motor Power | 37 kW |
| Reducer | COBRA (ITALYAN) |
| Number Lever Mixer | 6 |
| Mixer Side of Body Wear | 10 mm ST52 |
| Wear The Mixer Base | 12 mm NISOCO 400 (JAPON) |
| Mixer and Scraper Pans | 20 mm Ni-Hard 4 Döküm |
| Water Dispenser | |
| Hydraulic Drain Cover | |
| Maintenance Cover Safety Switch |
