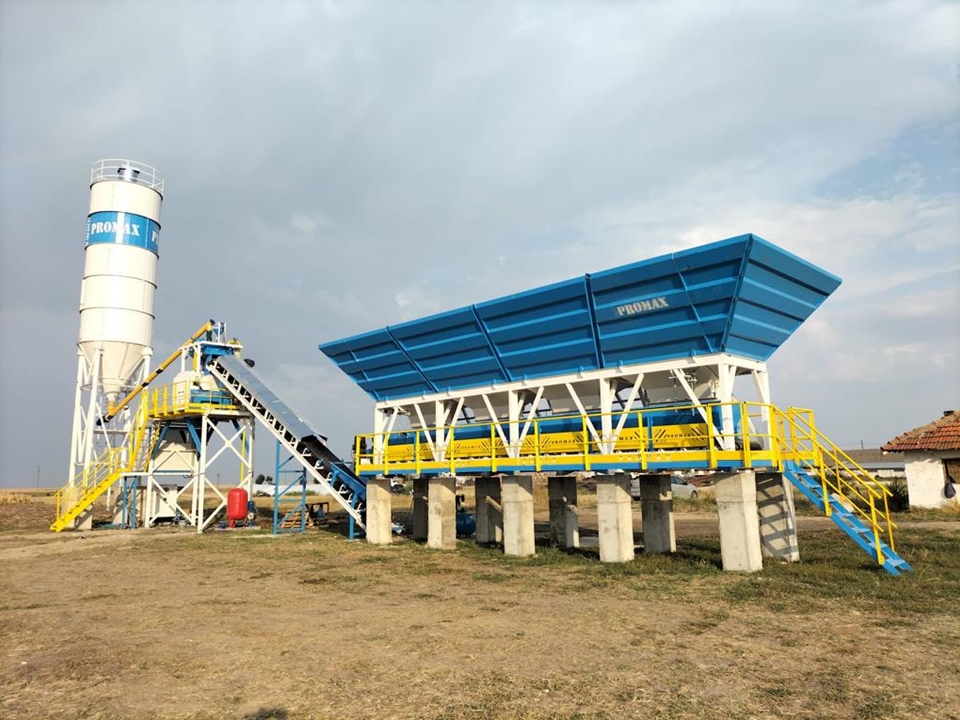

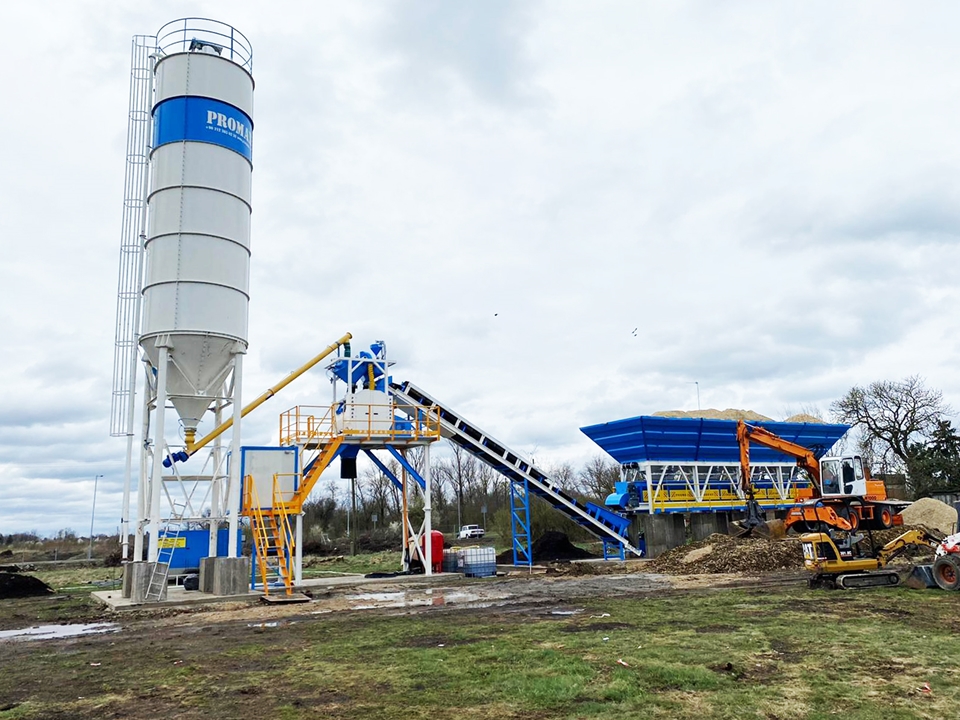

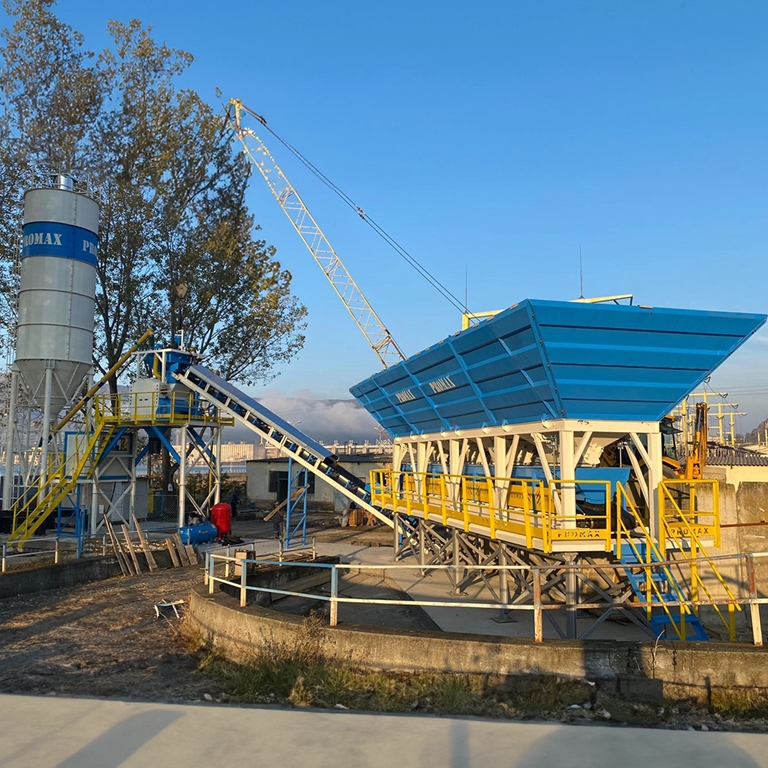

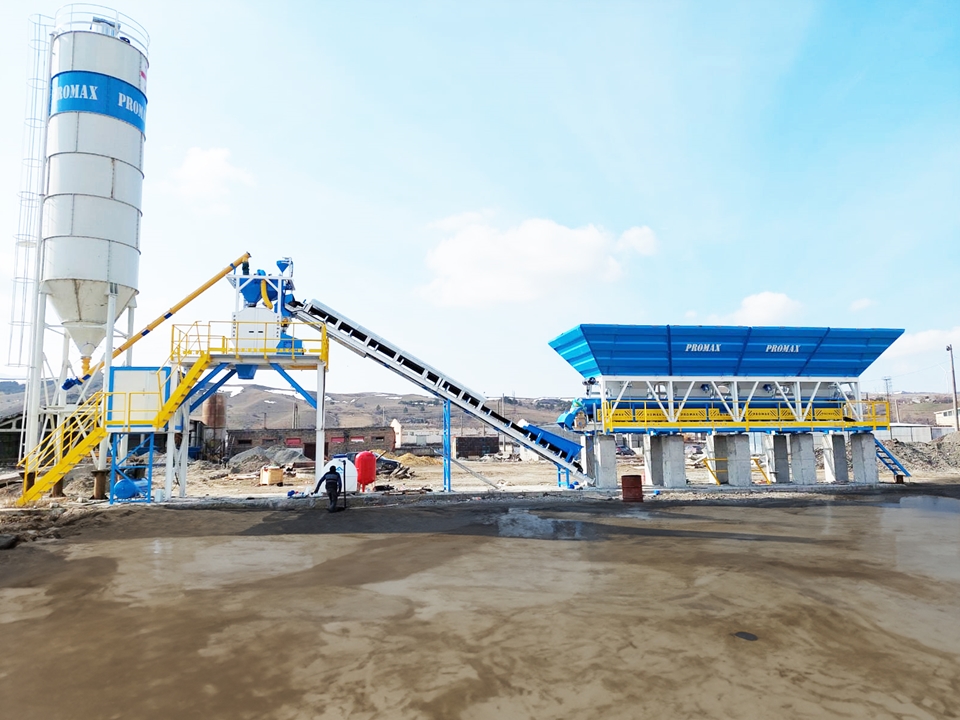

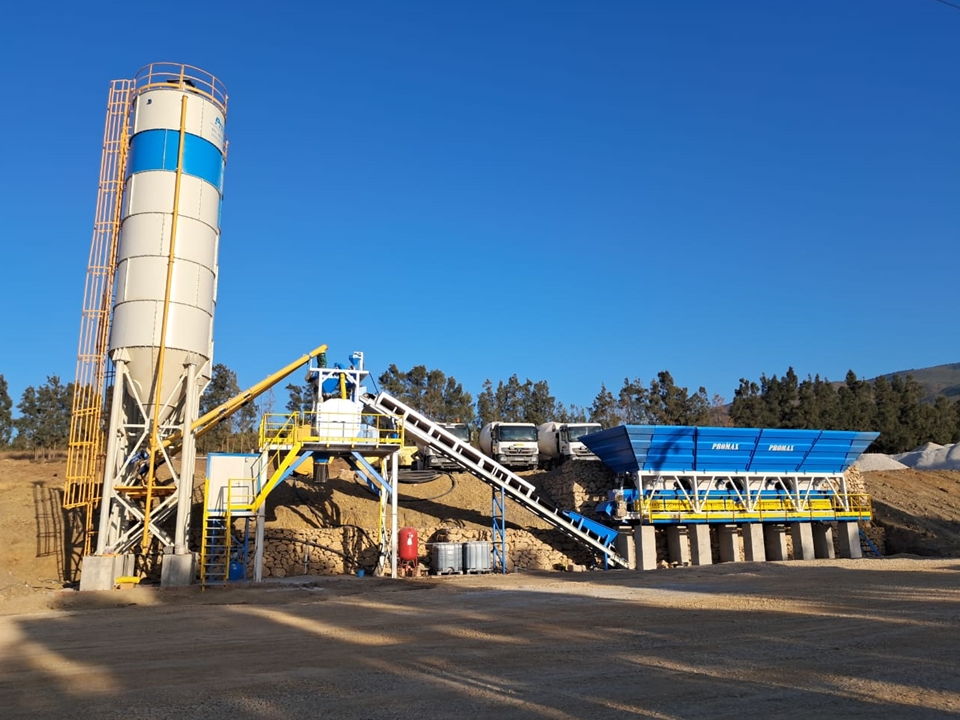

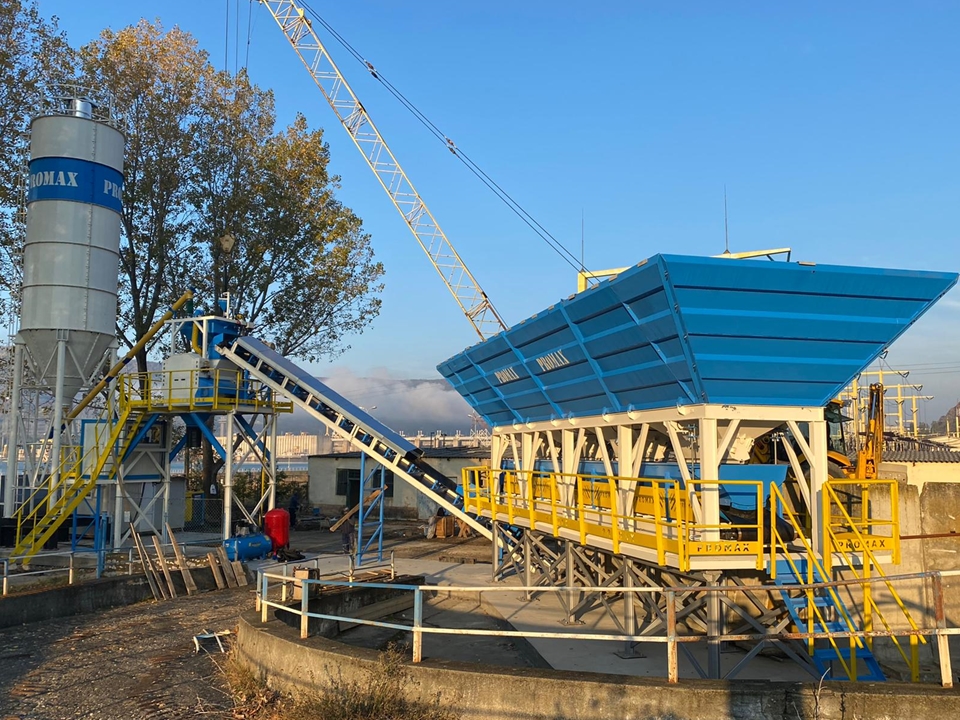

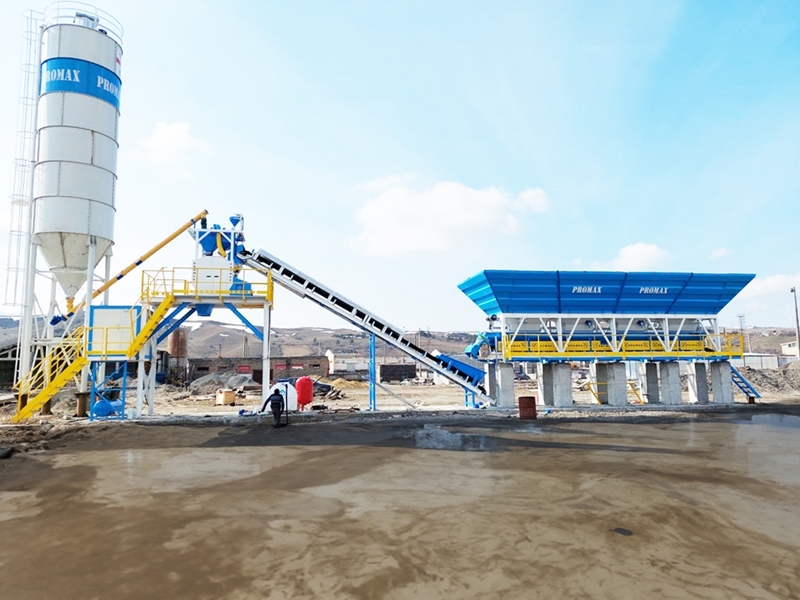

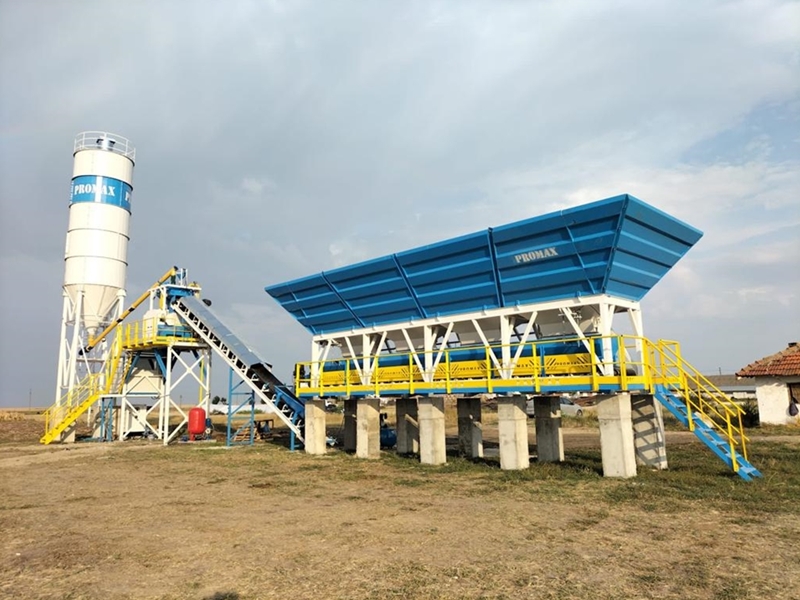

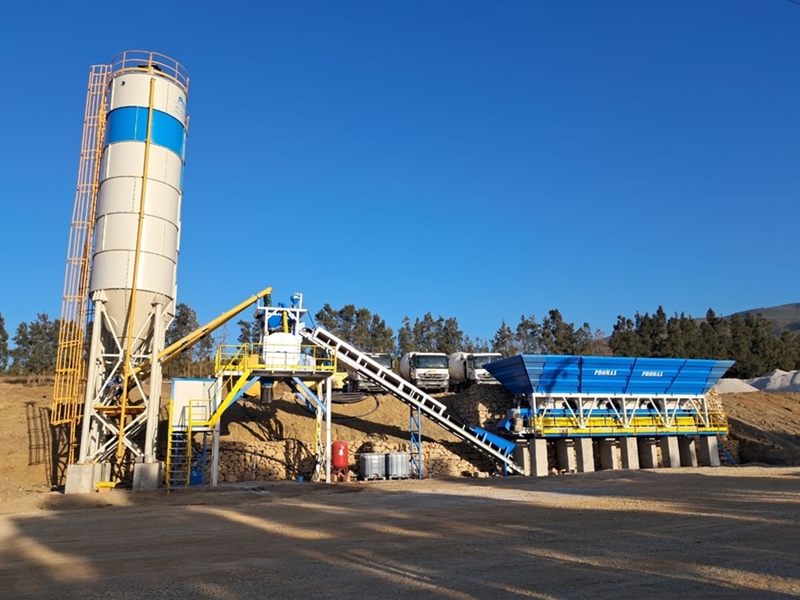

60m³/h Compact Concrete Batching Plant
The Promax C60 SNG L Compact “Plug-and-Play” Concrete Batching Plant offers significant advantages in concrete production and site mobilization with its low transportation cost, easy and simple operation, and quick installation features. Promax has developed this system to minimize the transportation and installation challenges of concrete plants by designing it to fit fully into containers.
General Information
The Promax C60 SNG L Compact “Plug-and-Play” Concrete Batching Plant offers significant advantages in concrete production and site mobilization with its low transportation cost, easy and simple operation, and quick installation features. Promax has developed this system to minimize the transportation and installation challenges of concrete plants by designing it to fit fully into containers.
Advantages:
- Low Transportation Cost: Can be transported with only 2 units of 40 FO/T containers or 2 standard truck trailers.
- Easy and Simple Operation: Easy and simple to use, delivered with all equipment installed and electrical work completed.
- Quick Installation: Requires minimal assembly on site and can be operational in a short time.
The Promax C60 SNG L is shipped with all necessary equipment installed and electrical systems completed, providing a fast assembly and commissioning process on site.
Technical Information
| Plant Capacity | |
| Compacted Concrete Capacity | 60 m³/h |
| Mixer Specifications | |
| Mixer Type | Single Shaft |
| Dry Capacity | 1500 lt |
| Mixer Capacity | 1000 lt |
| Engine Power | 1 x 37 kW |
| Mixer Conveyor Belt | |
| Width | 800 mm |
| Length | 12000 mm |
| Engine Power | 15 kW |
| Aggregate Hopper | |
| 4 Bins | 4 x 20 m³ = 80 m³ |
| Bunker Grid | Optional |
| Air Compressor | |
| Capacity | 830 lt / min |
| Tank Volume | 500 lt |
| Working Pressure | 8 - 10 bar |
| Engine Power | 5.5 kW |
| Cement Silos and Equipment | |
| Capacity | 75 - 100 - 150 - 200 - 500 Tons |
| Silo Quantity | 1 - 6 Piece |
| Screw Conveyor Diameter | 219 mm |
| Screw Conveyor Length | 7000 mm |
| Screw Engine Power | 9.2 kW |
| Silo Top Filter | |
| Valve - Manuel Arm | |
| Security Valve | |
| Weighbridge | |
| Aggregate Weighbridge Hopper | 4200 kg |
| Cement Weighbridge | 600 kg |
| Water Weighbridge | 350 lt |
| Additives Weighbridge | 25 kg |
| Aggregate Weighbridge Belt | |
| Width | 800 mm |
| Length | 11000 mm |
| Engine Power | 11 kW |
| Load Cell | 4 x 5000 kg |
