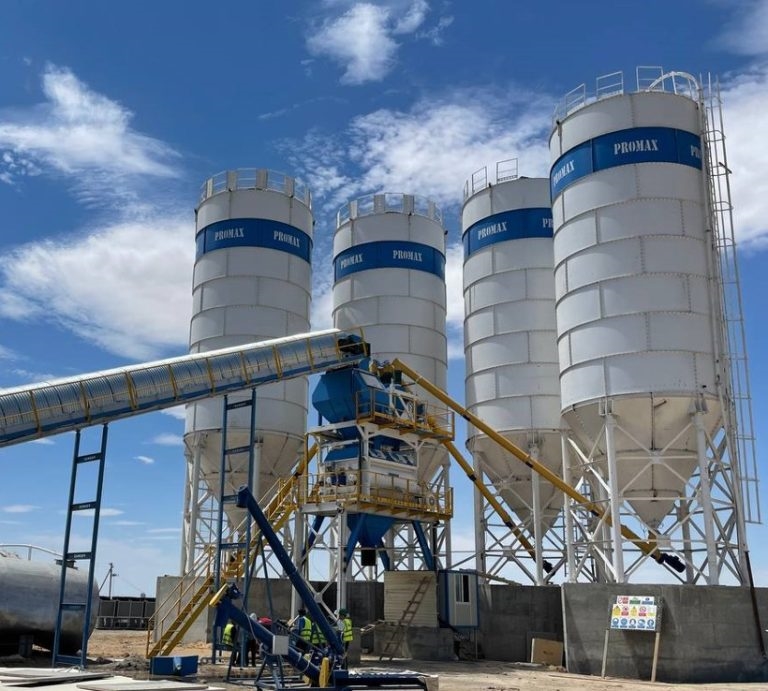

Cement Silos

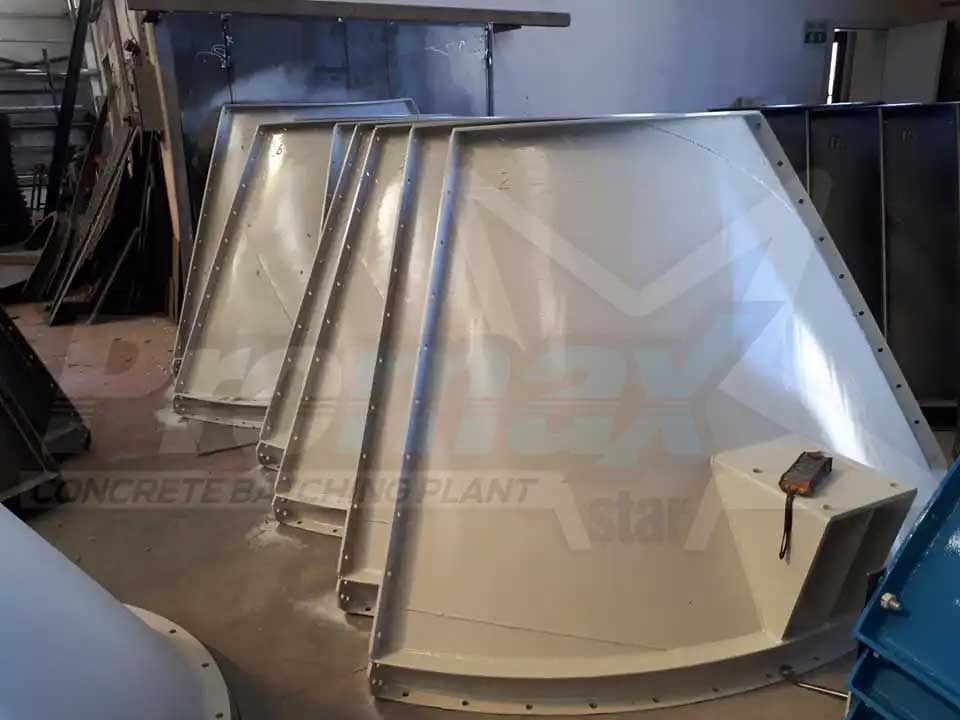

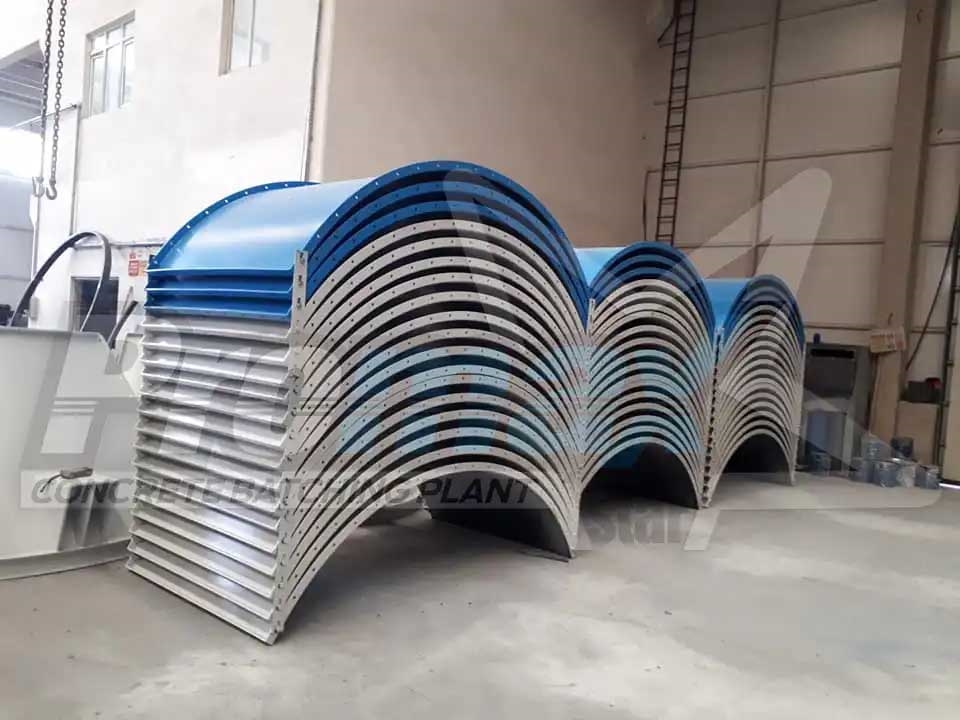

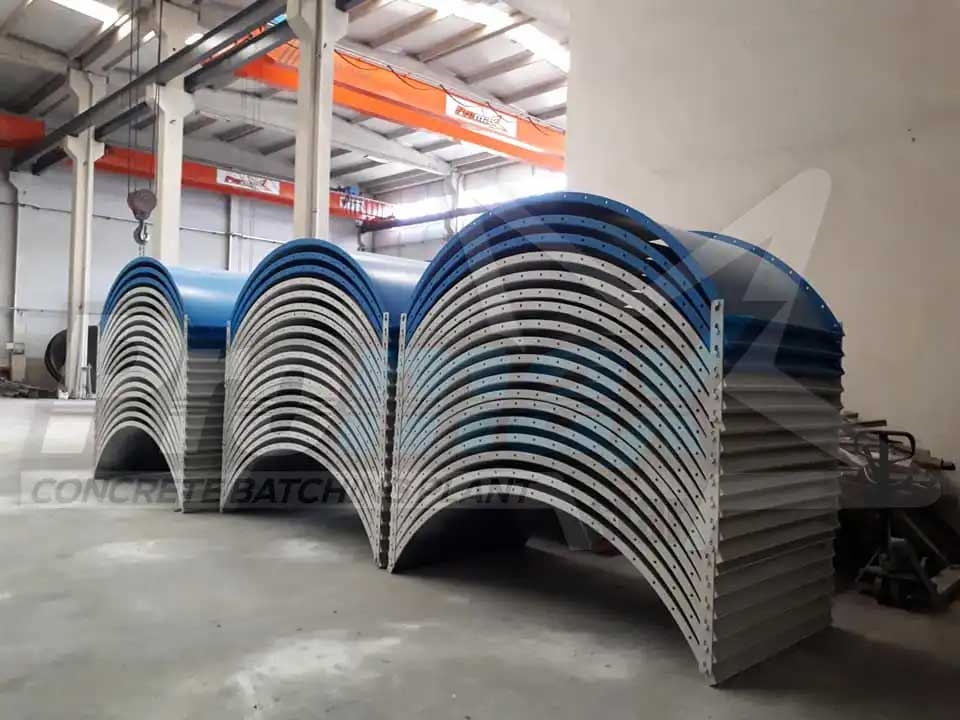

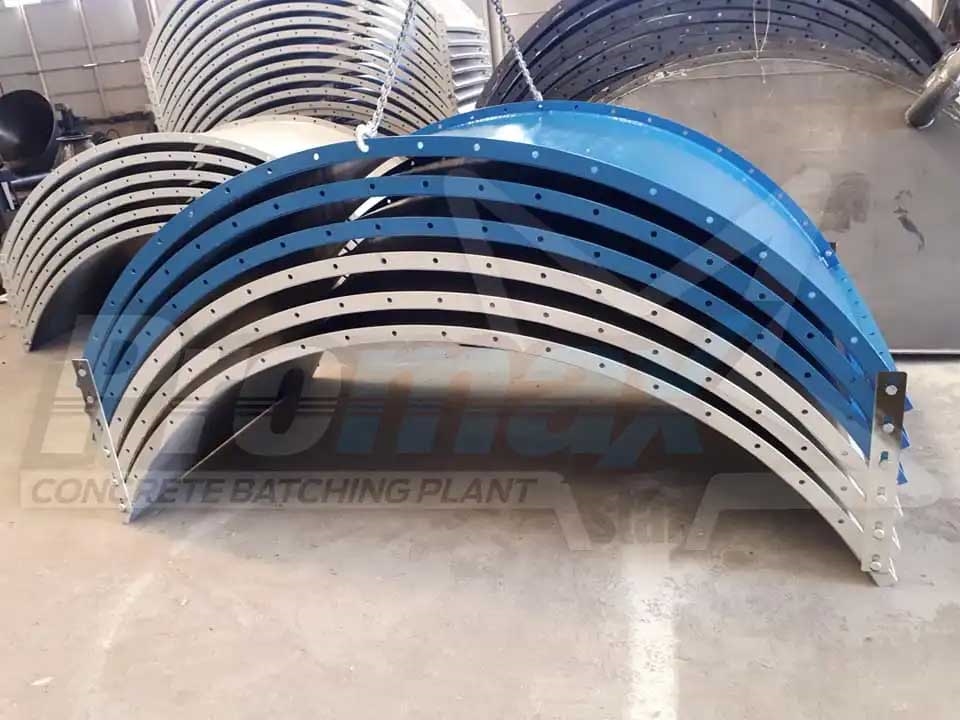

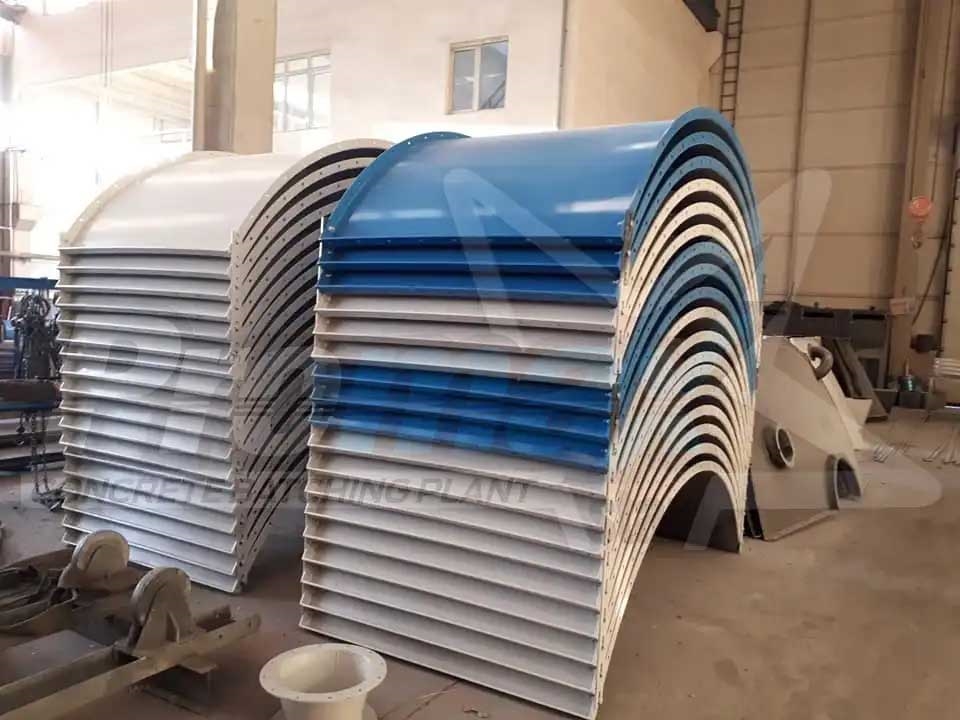

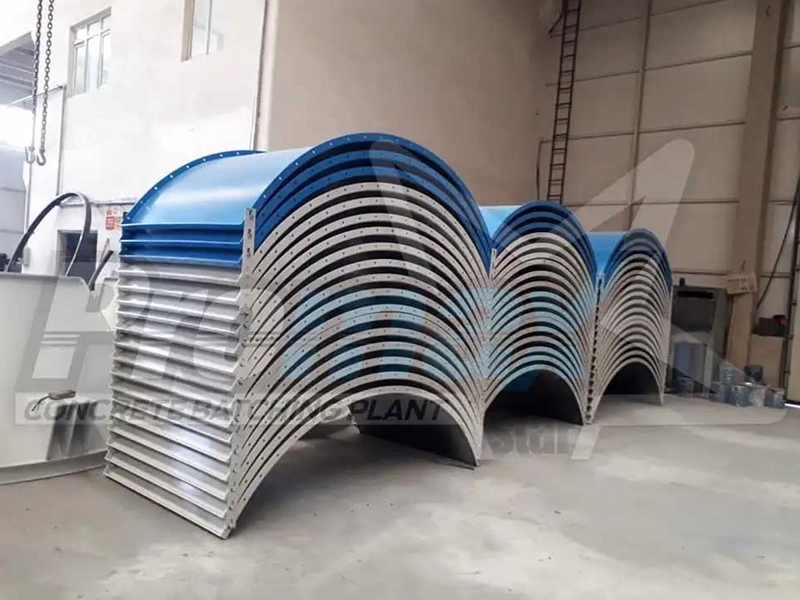

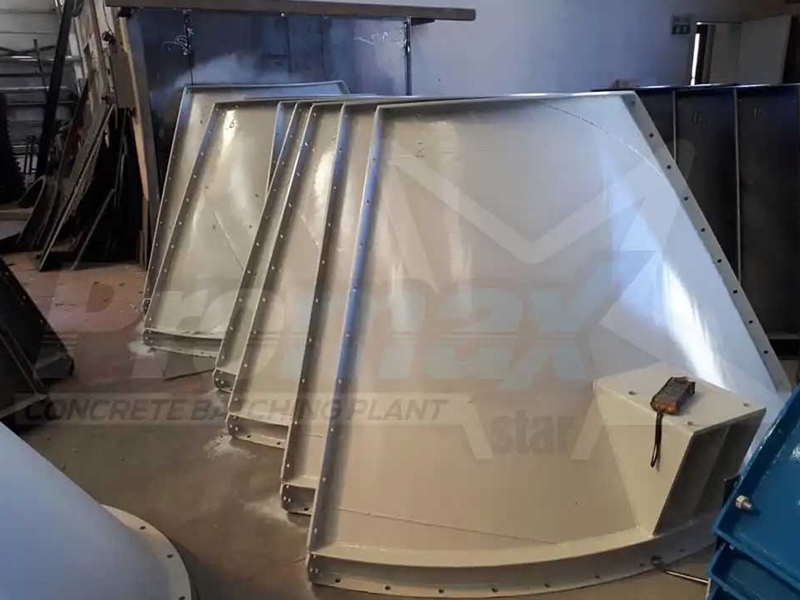

Cement silos are used for storing cement. General use areas are mainly used in fields such as concrete plants, cement factories, construction chemicals plants, gypsum factories. can be divided into main class. Silos designed as bolts (breakable) provide great savings on transport. Manufactured according to ISO and CE norms.
Technical Information
| Specifications | ||||||
|---|---|---|---|---|---|---|
| 50 TON | 75 TON | 100 TON | 150 TON | 250 TON | 500 TON | |
| Cement Silo Type | 50 CS | 75 CS | 100 CS | 150 CS | 250 CS | 500 CS |
| Capacity | 35 m³ / 50 Ton | 55 m³ / 77 Ton | 75 m³ / 100 Ton | 105 m³ / 150 Ton | 178 m³ / 250 Ton | 350 m³ / 500 Ton |
| Diameter (Ø) | 3060 mm | 3060 mm | 3060 mm | 4100 mm | 4100 mm | 6180 mm |
| Total Height | 12,000 mm | 14,000 mm | 16,000 mm | 18,000 mm | 21,000 mm | 24,000 mm |
| Silo Leg Height | 6000 mm | 6000 mm | 6000 mm | 6000 mm | 6000 mm | 6000 mm |
| Silo Discharge Height | 4000 mm | 4000 mm | 4000 mm | 4000 mm | 4000 mm | 4000 mm |

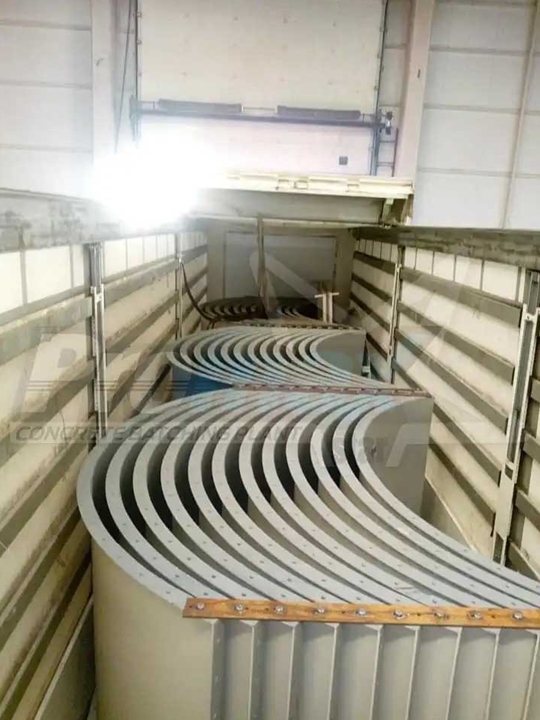

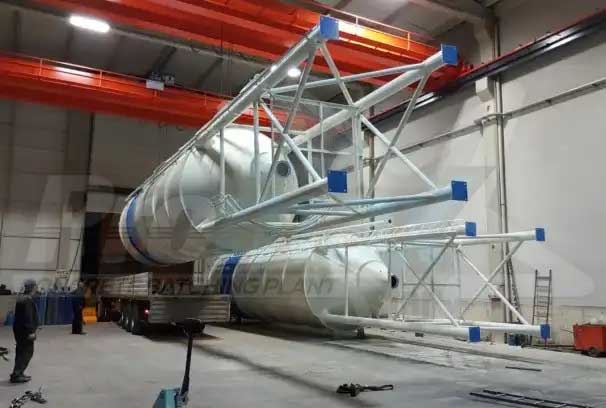

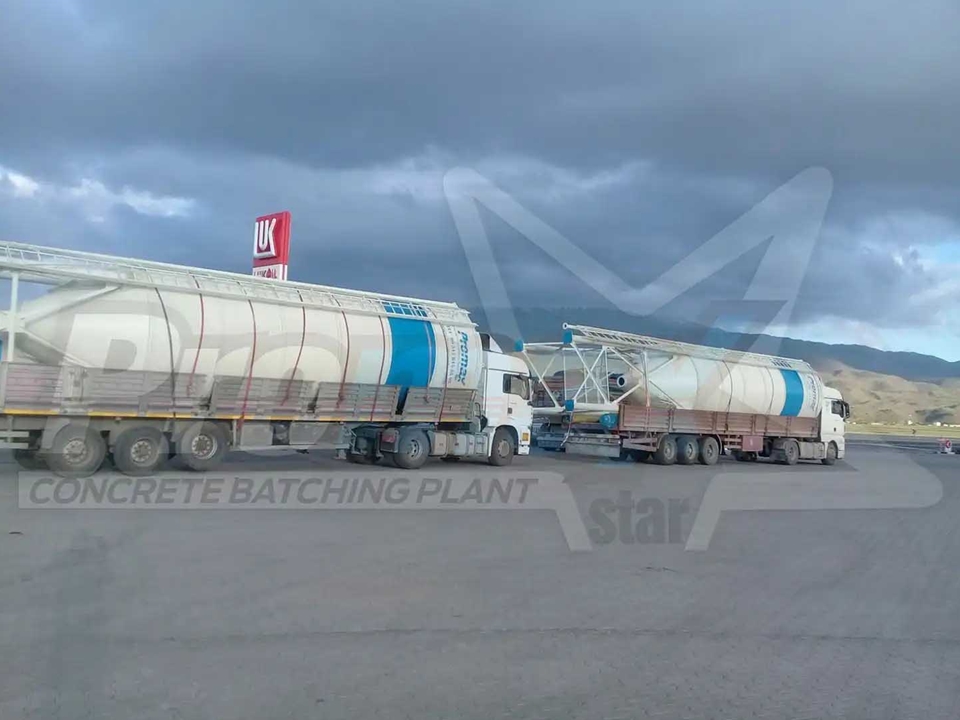

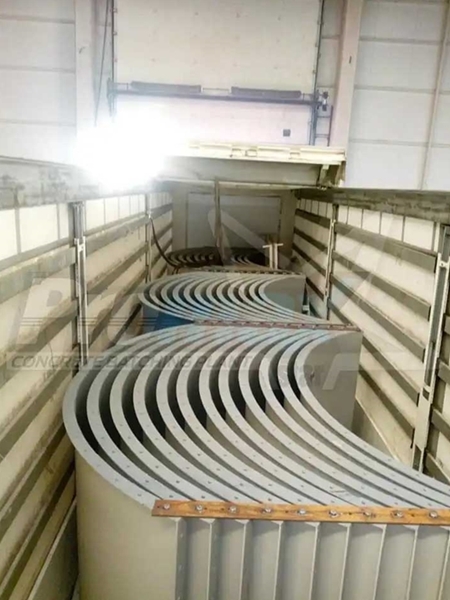

| Transportation Conditions | 2 units with 1 truck / 2 units with 1 × 40′ open-top container | 1 unit with 1 truck | ||||

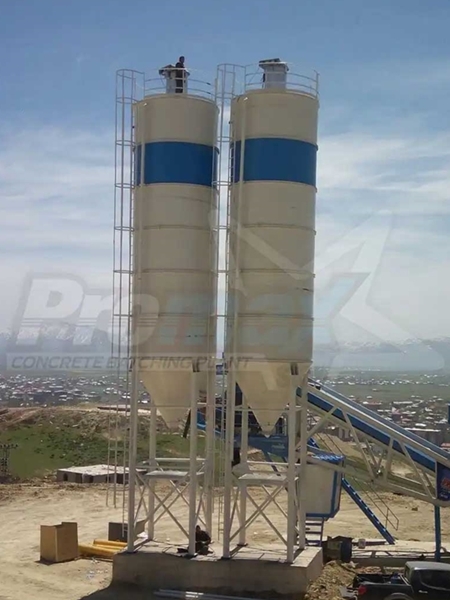

Gallery
